ECS B250H4-M20 User Manual

Chapter 3
B250H4-M20 USER MANUAL
33

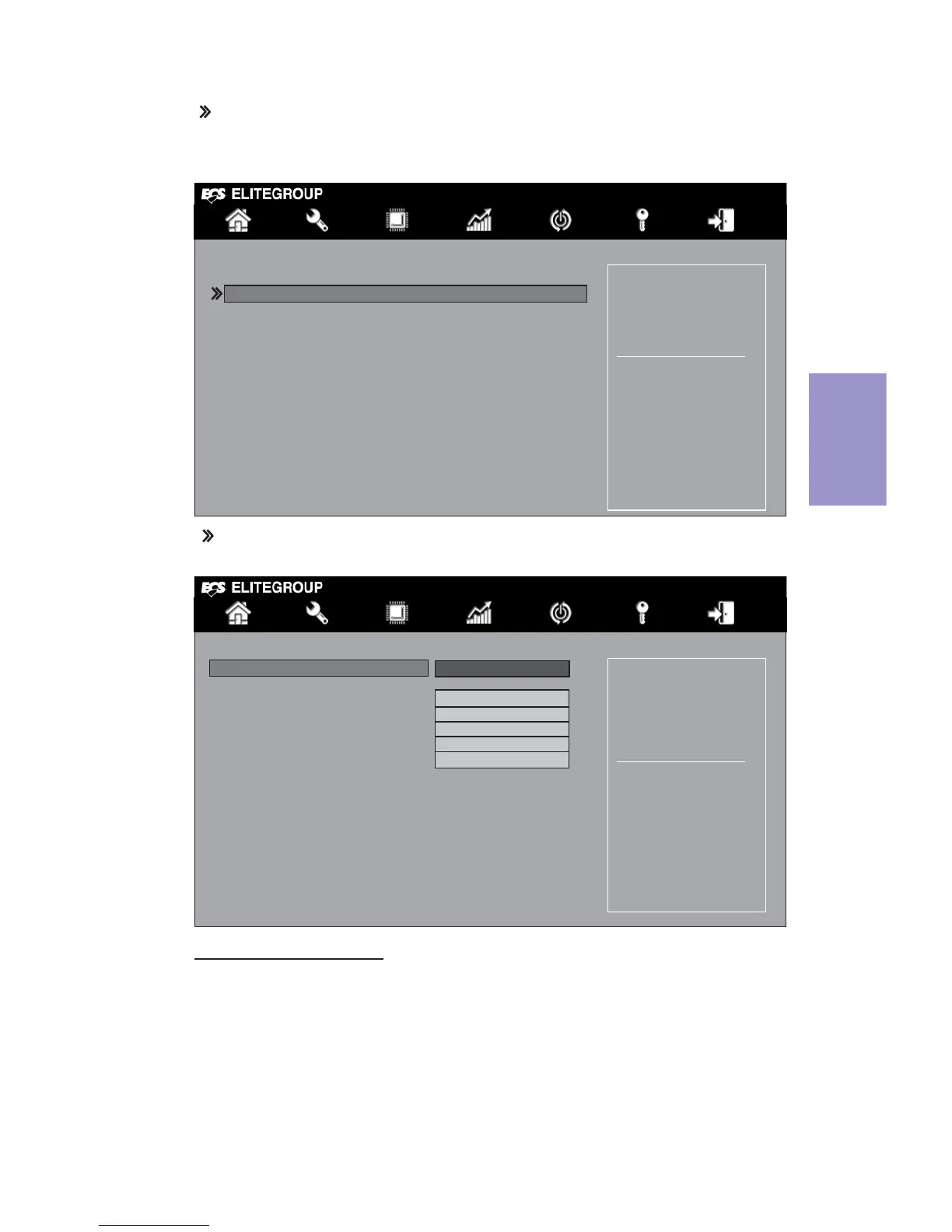

PC Health Status
On motherboards support hardware monitoring, this item lets you monitor the
parameters for critical voltages, temperatures and fan speeds.
Scroll to this item and press <Enter> to view the following screen:
 Smart Fan Function
Main Advanced Chipset Tweak Security Boot Exit
+/- : Change Opt.
Enter/Dbl Click : Select


: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
CPU Temperature (DTS) 63
System Temperature 32
O
C
CPU Fan Speed 3169 RPM
System Fan Speed 0 RPM
Core Voltage 1.210V
DIMM Voltage 1.166V
+12V 11.946V
+5VSB 5.071V
+VCC 5.115V
TCC Activation Temperature (DTS) 100
Smart Fan Function
PC Health Status
Smart Fan Select
Main Advanced Chipset Tweak Security Boot Exit
+/- : Change Opt.
Enter/Dbl Click : Select


: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
Smart Fan Select CPU Fan
Smart Fan Mode Normal
Smart Fan start PWM value 180
Smart Fan start PWM TEMP (DTS) 70
DeltaT 3
Smart Fan Slope PWM value 10
Fan Full Speed Offset 77
Smart Fan Select (CPU Fan)
This item allows you to change and configure Smart Fans on M/B. ex. CPU Fan,
System Fan.
