B85H3-M9 USER MANUAL
3

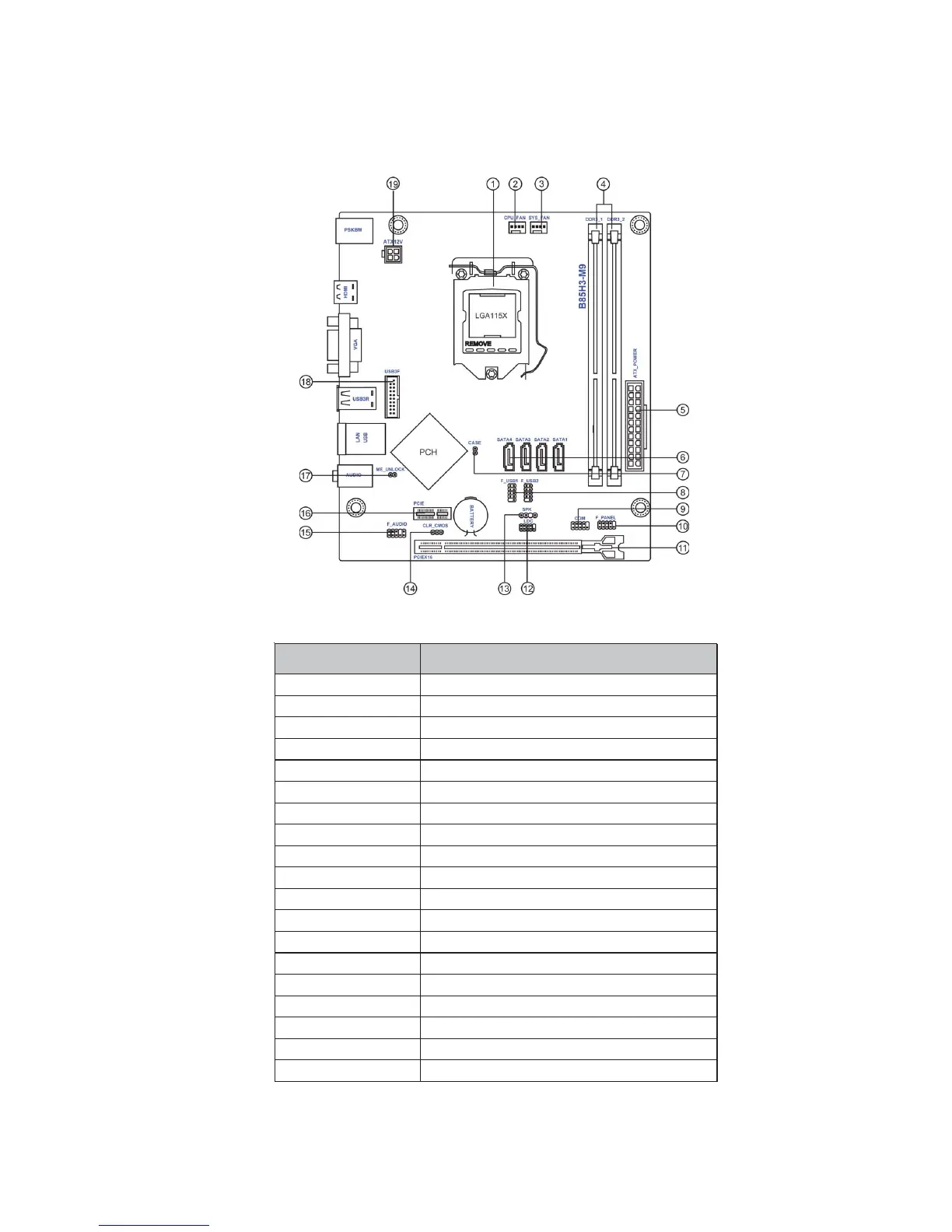

Motherboard Components
Table of Motherboard Components
LABEL COMPONENTS
1. CPU Socket LGA1150 socket for Intel Haswell Processors
2. CPU_FAN 4-pin CPU cooling fan connector
3. SYS_FAN 4-pin system cooling fan connector
4. DDR3_1~2 240-pin DDR3 Module slots
5. ATX_POWER Standard 24-pin ATX power connector
6. SATA1~4 Serial ATA 6.0 Gb/s connectors
7. CASE CASE open header
8. F_USB1~2 Front panel USB 2.0 headers
9. COM Onboard serial port header
10. F_PANEL Front panel switch/LED header
11. PCIEX16 PCI Express slot for graphics interface
12. LDC Debug card header
13. SPK Speaker header
14. CLR_CMOS Clear CMOS jumper
15. F_AUDIO Front panel audio header
16. PCIE PCI Express x1 slot
17. ME_UNLOCK ME unlock header-for factory use only
18. USB3F Front panel USB 3.0 header
19. ATX12V 4-pin +12V power connector
