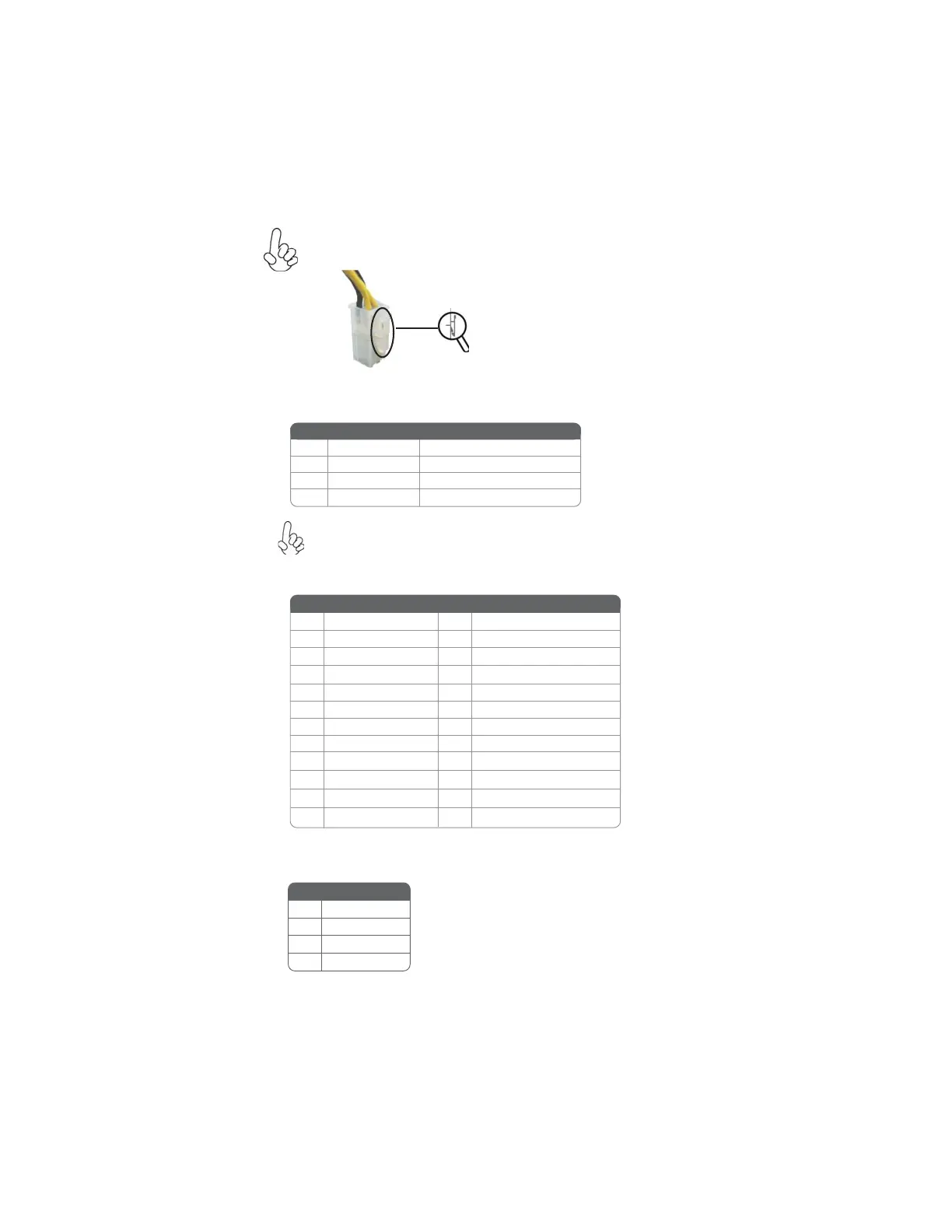

23
Installing the Motherboard
ATX_POWER: ATX 24-pin Power Connector
Pin Signal Name Pin Signal Name
1 +3.3V 13 +3.3V
3 Ground 15 Ground
4 +5V 16 PS_ON
5 Ground 17 Ground
6 +5V 18 Ground
7 Ground 19 Ground
8 PWRGD 20 -5V
9 +5VSB 21 +5V
10 +12V 22 +5V
11 +12V 23 +5V
12 +3.3V 24 Ground
2 +3.3V 14 -12V
Users please note that the fan connector supports the CPU cooling fan
of 1.1A ~ 2.2A (26.4W max) at +12V.
CPU_FAN: CPU Cooling FAN Power Connector
1 GND System Ground
3 Sense Sensor
4 PWM PWM
Pin Signal Name Function
2 +12V Power +12V
The ATX12V power connector is used to provide power to the CPU.
When installing 4-pin power cable, the
latches of power cable and the ATX12V
match perfectly.
Connecting 4-pin power cable
4-pin power cable
SPK: Internal speaker
Pin Signal Name
1 VCC
2 Key
3 NC
4 Signal

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the ECS G41T-R3 and is the answer not in the manual?

ECS G41T-R3 Specifications

General IconGeneral
Form FactorMicro ATX
CPU SocketLGA 775
Memory TypeDDR3
Memory Slots2
Maximum Memory8 GB
GraphicsIntegrated Intel GMA X4500
Storage Interface4 x SATA 3Gb/s
IDE Ports1 x IDE
Video Outputs1 x VGA
AudioRealtek ALC662 6-Channel HD Audio
ChipsetIntel G41
Expansion Slots1 x PCIe x16, 1 x PCIe x1, 2 x PCI
USB Ports8 x USB 2.0 (4 on back panel, 4 via headers)
