Installing the Motherboard

Connecting I/O Devices

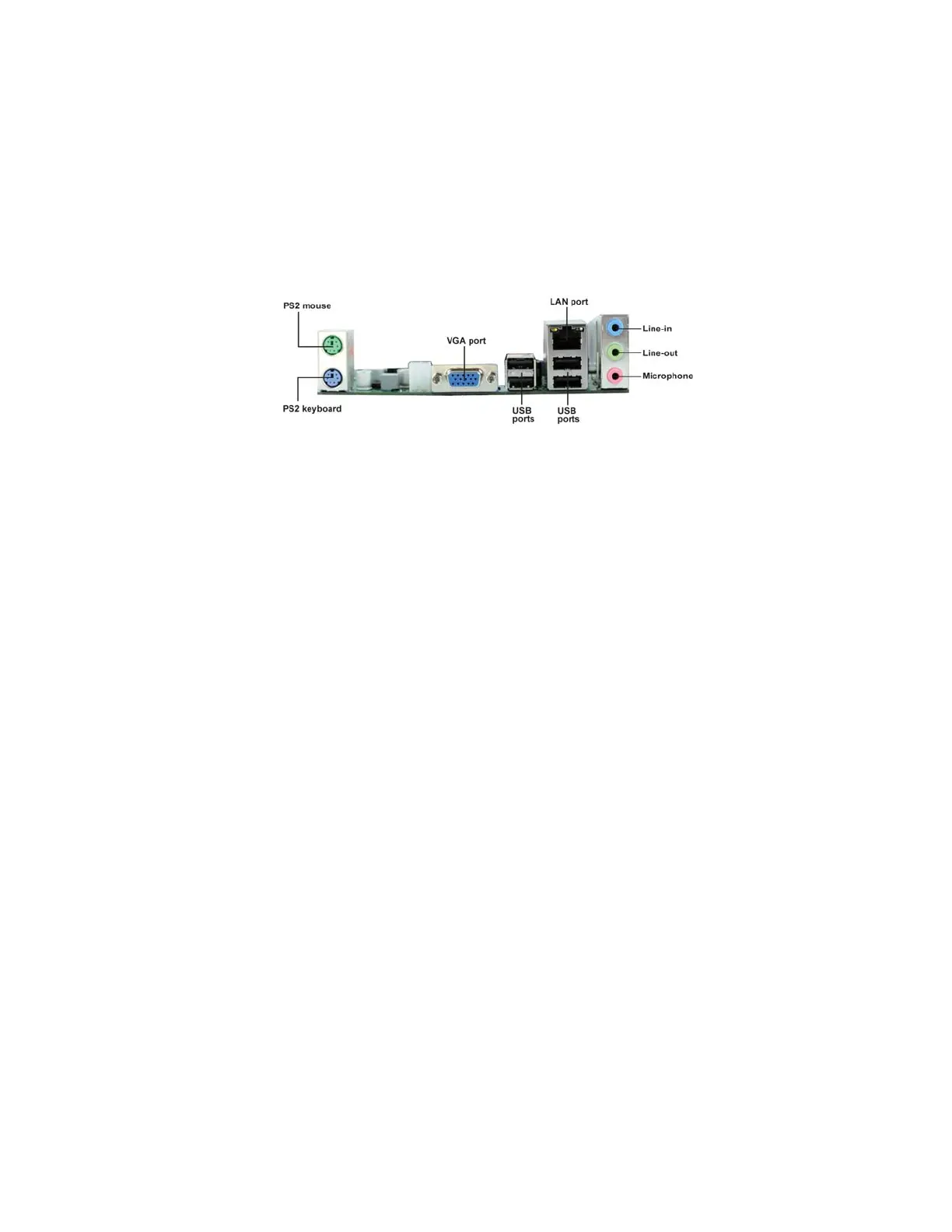

The backplane of the motherboard has the following I/O ports:

PS2 Mouse Use the upper PS/2 port to connect a PS/2 pointing device.

PS2 Keyboard Use the lower PS/2 port to connect a PS/2 keyboard.

LAN Port Connect an RJ-45 jack to the LAN port to connect your

computer to the Network.

USB Ports Use the USB ports to connect USB devices.

Audio Ports

VGA Port Connect your monitor to the VGA port.

Use the three audio ports to connect audio devices. The

first jack is for stereo line-in signal. The second jack is for

stereo line-out signal. The third jack is for microphone.

Questions and Answers:

Need help?

Do you have a question about the ECS G41T-R3 and is the answer not in the manual?

ECS G41T-R3 Specifications

General

Form Factor	Micro ATX
CPU Socket	LGA 775
Memory Type	DDR3
Memory Slots	2
Maximum Memory	8 GB
Graphics	Integrated Intel GMA X4500
Storage Interface	4 x SATA 3Gb/s
IDE Ports	1 x IDE
Video Outputs	1 x VGA
Audio	Realtek ALC662 6-Channel HD Audio
Chipset	Intel G41
Expansion Slots	1 x PCIe x16, 1 x PCIe x1, 2 x PCI
USB Ports	8 x USB 2.0 (4 on back panel, 4 via headers)
