ECS GF8200A User Manual

58
NVIDIA RAID Configuration
From the Integrated Peripherals Window, globally set SATA Mode select to
RAID Mode (see Figure 1.2).
Press F10 to save the configuration and exit (F10 is the navigation key to
Installing the NVIDIA RAID Software Under Windows
This section describes how to run the setup application and install the RAID soft-
ware.
Start the nForce Setup program to open the NVIDIA Windows nForce
Drivers page.

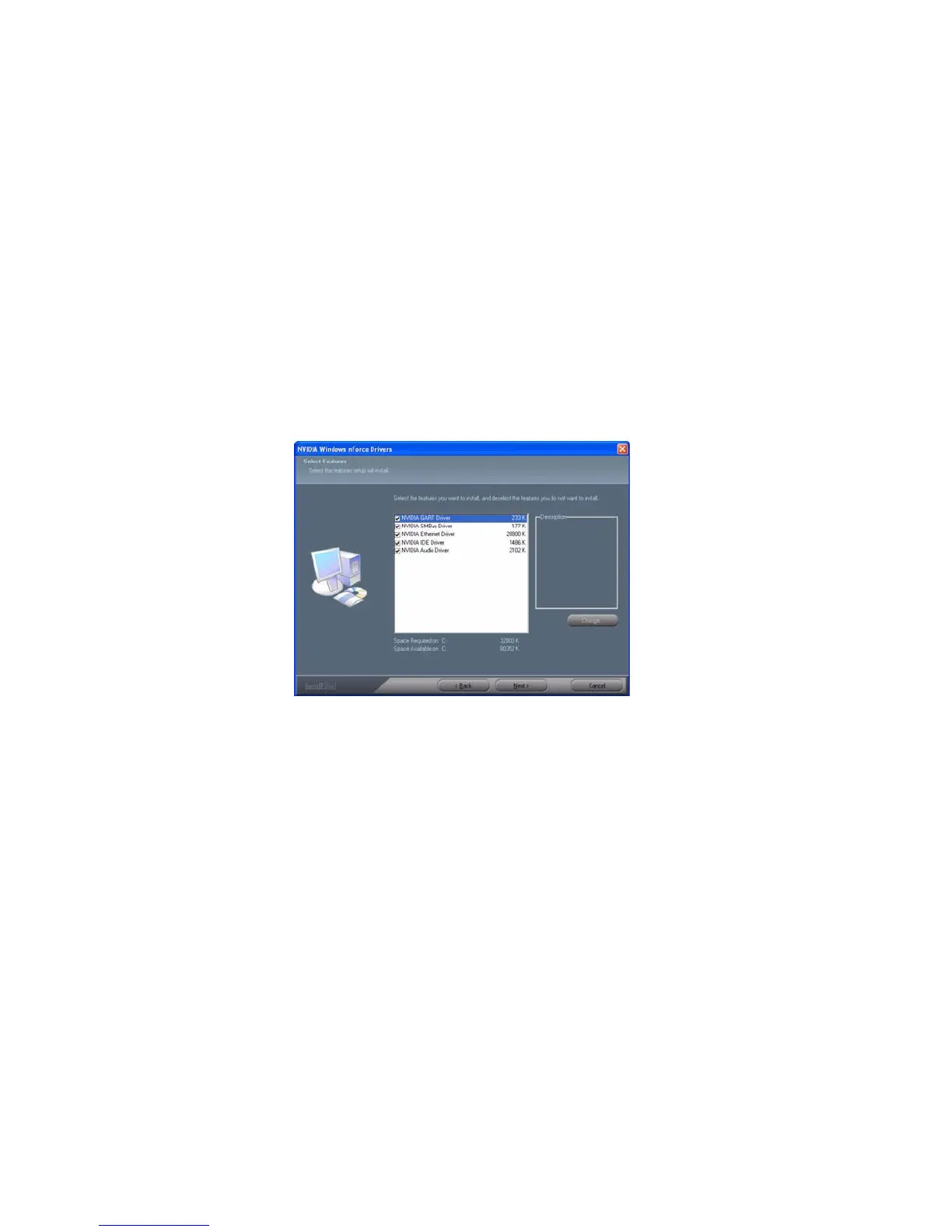

Figure 1.3 nForce Driver Installation Window
3
4
1
save the current configuration and exit setup in BIOS setting).
The PC reboots.
Make sure that the “NVIDIA IDE Driver” is selected.
2 Select the modules that you want to install.
You must install the NVIDIA IDE driver in order to enable NVIDIA RAID.
If you do not install the NVIDIA IDE driver, NVIDIA RAID will not be
enabled.
Click Next and then follow the instructions.After the installation is com-
pleted, be sure to reboot the PC.
After the reboot, initialize the newly created array.
3
4
5

ECS GF8200A Specifications

General

Number of memory slots	4
Maximum internal memory	32 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
Compatible processor series	AMD Sempron
USB 2.0 connectors	3
Power fan connector	Yes
Number of COM connectors	1
Number of SATA connectors	5
USB 2.0 ports quantity	6
Firewire (IEEE 1394) ports	0
Audio chip	IDT 92HD206
Audio output channels	7.1 channels
Motherboard form factor	ATX
BIOS type	AMI
BIOS memory size	64 Mbit
PCI Express x1 slots	2
Maximum graphics card memory	512 MB
RAID levels	0, 1
