ECS GF8200A User Manual

63
NVIDIA RAID Configuration

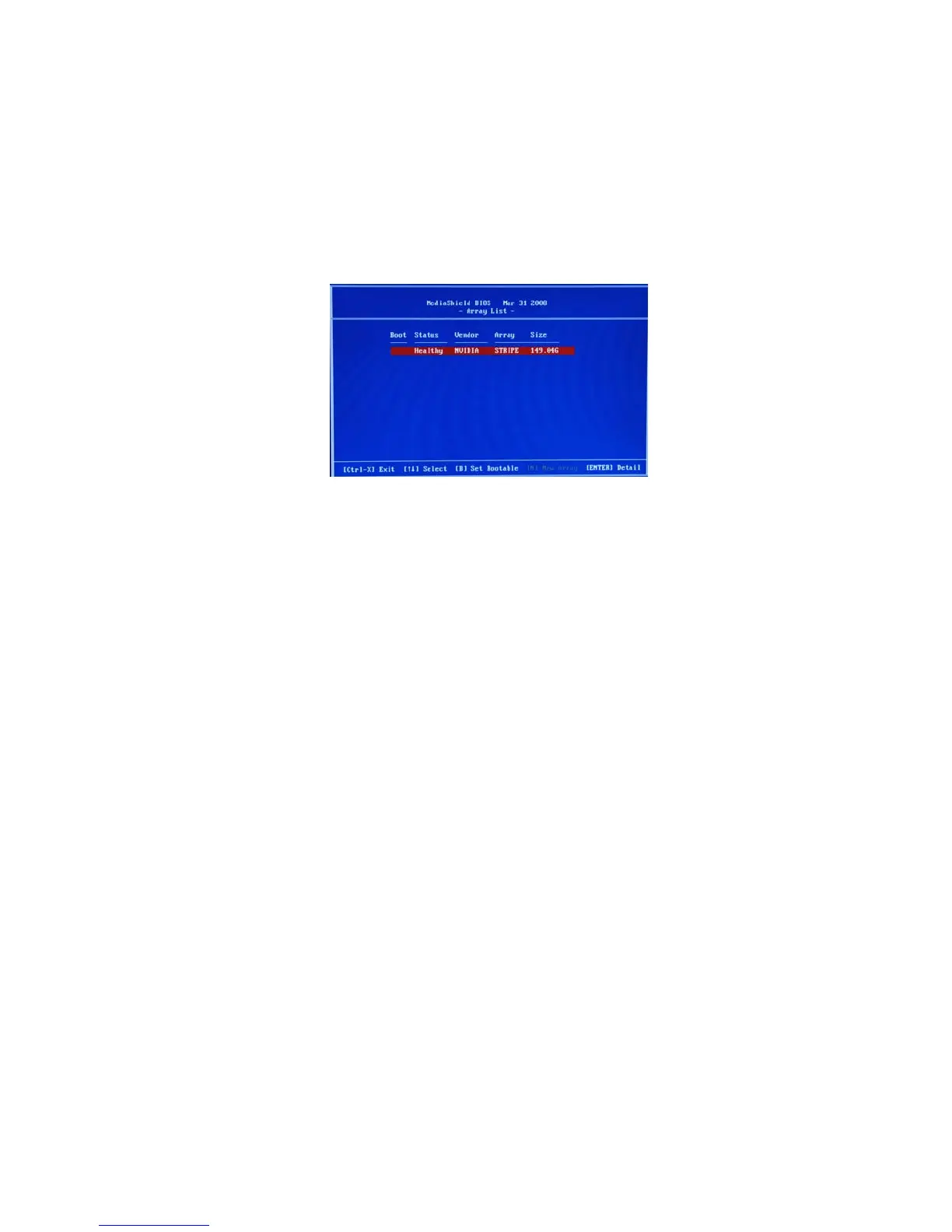

Figure 1.10 Array List Window
Press Y to clear the disk data.
The Array List screen appears, where you can review the RAID arrays that
you have set up.
The Array Detail screen shows various information about the array that you
selected, such as Striping Block used, RAID Mode, Striping Width, Disk
Model Name, and disk capacity.
If you want to mark this disk as empty and wipe out all its contents, press C.
At the prompt, press Y to wipe out all the data, otherwise press N.
Press Enter again to go back to the previous screen and then press F10 to exit
the RAID setup.
3
Use the arrow keys to select the array that you want to set up, then press B
to specify the array as bootable.
Press Enter to view and verify details.
5
6
7
4
2

ECS GF8200A Specifications

General

Number of memory slots	4
Maximum internal memory	32 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
Compatible processor series	AMD Sempron
USB 2.0 connectors	3
Power fan connector	Yes
Number of COM connectors	1
Number of SATA connectors	5
USB 2.0 ports quantity	6
Firewire (IEEE 1394) ports	0
Audio chip	IDT 92HD206
Audio output channels	7.1 channels
Motherboard form factor	ATX
BIOS type	AMI
BIOS memory size	64 Mbit
PCI Express x1 slots	2
Maximum graphics card memory	512 MB
RAID levels	0, 1
