ECS GF8200A User Manual

65
NVIDIA RAID Configuration
b Select “NVIDIA RAID CLASS DRIVER (required)” and then press Enter.
c Press S again at the Specify Devices screen, then press Enter.
d Select “NVIDIA NForce Storage Controller (required)” and then press
Enter.

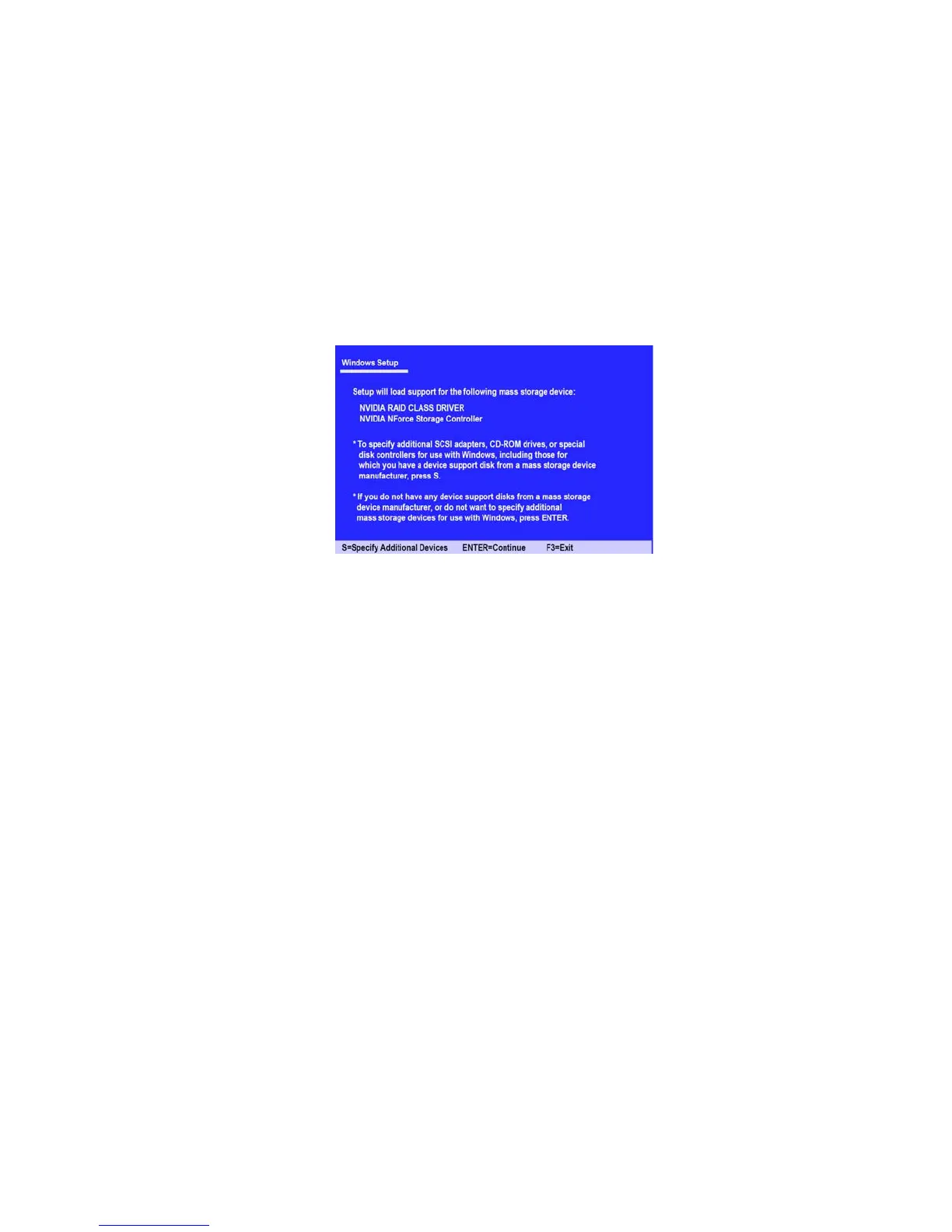

The following Windows Setup screen appears listing both drivers:.
Figure 2.15 Windows Setup—NVIDIA drives listed
Press Enter to continue with Windows XP Installation.
Be sure to leave the floppy disk inserted in the floppy drive until the blue
screen portion of Windows XP installation is completed, then take out the
floppy.
Follow the instructions on how to install Windows XP.
After Windows XP is completely installed, it is recommended that you
install the ForceWare software in order to access the MediaShield RAID
Management tool.
Note:
Each time you add a new hard drive to a RAID array, the RAID driver
will have to be installed under Windows once for that hard drive. After
that, the driver will not have to be installed.
5
6
This concludes chapter 5.

ECS GF8200A Specifications

General

Number of memory slots	4
Maximum internal memory	32 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
Compatible processor series	AMD Sempron
USB 2.0 connectors	3
Power fan connector	Yes
Number of COM connectors	1
Number of SATA connectors	5
USB 2.0 ports quantity	6
Firewire (IEEE 1394) ports	0
Audio chip	IDT 92HD206
Audio output channels	7.1 channels
Motherboard form factor	ATX
BIOS type	AMI
BIOS memory size	64 Mbit
PCI Express x1 slots	2
Maximum graphics card memory	512 MB
RAID levels	0, 1
