Chapter 2
11
H110I-C4P USER
MANUAL

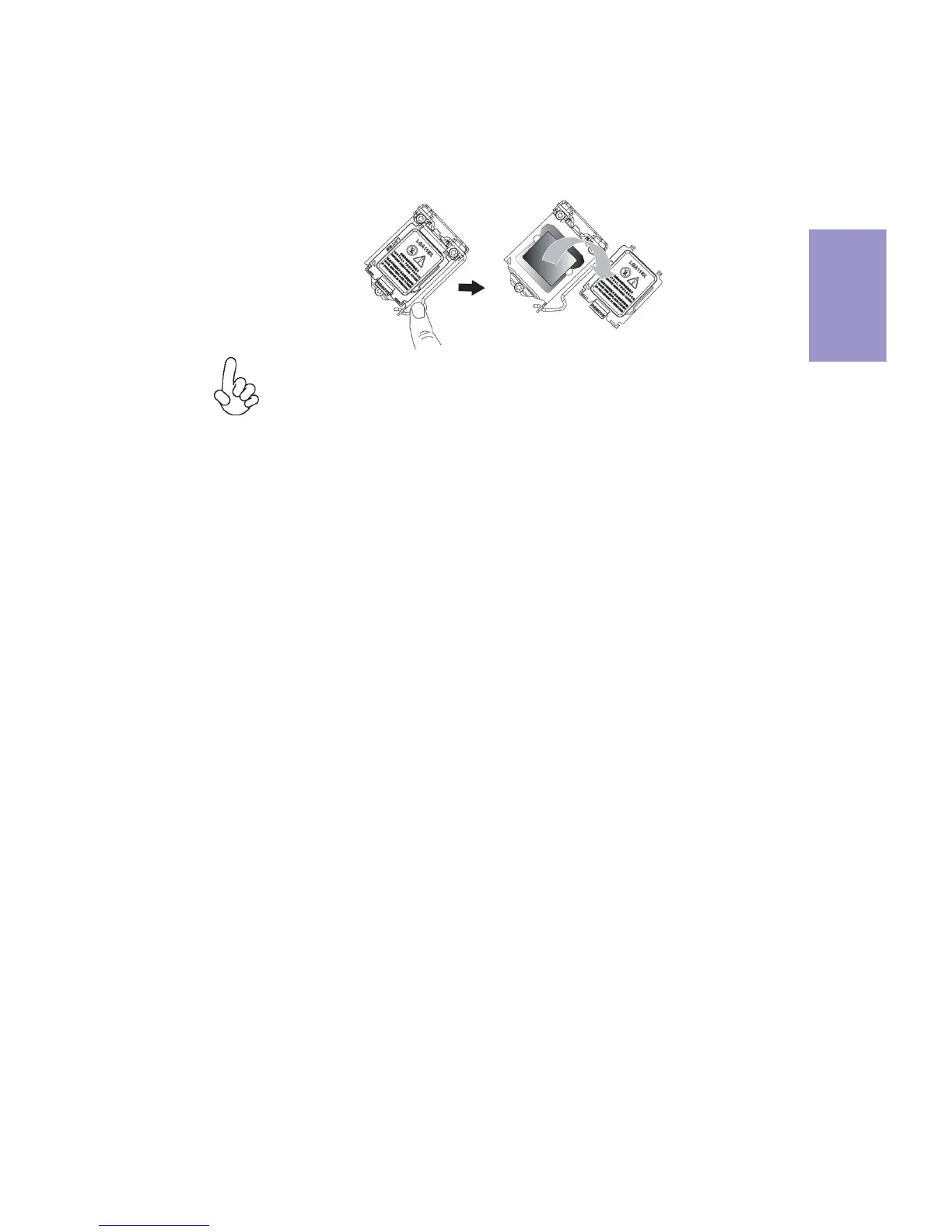

D. Rotate the load plate onto the package IHS (Intergraded Heat
Spreader). Engage the load lever while pressing down lightly onto the
load plate. Secure the load lever with the hook under retention tab. Then
the cov
er will flick automatic
ally
.
Please save and replace the cover onto the CPU socket if processor is re-
moved.
14
16
