ECS H110I-C4P User Manual

Chapter 1
4
H110I-C4P USER MANUAL

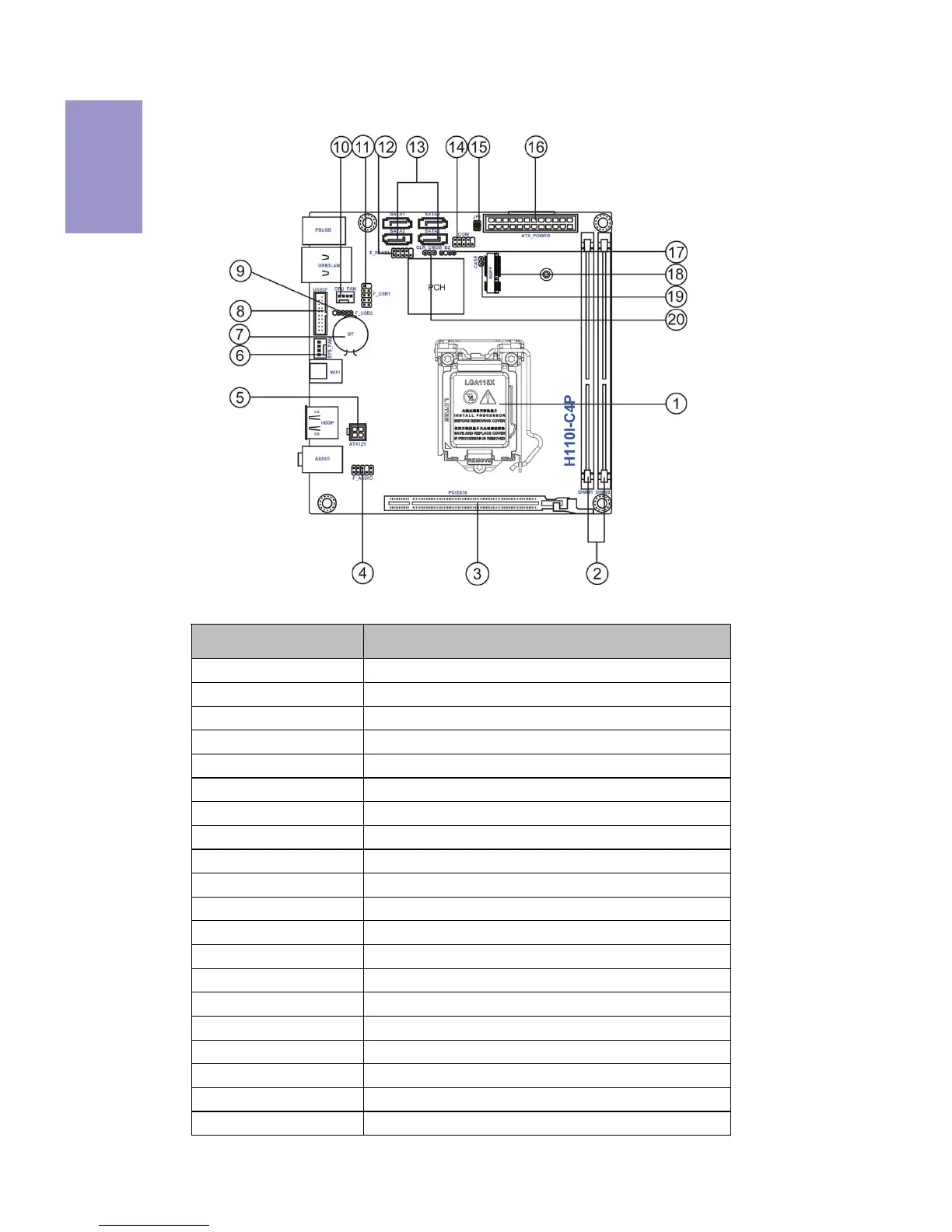

Motherboard Components
Table of Motherboard Components
LABEL COMPONENTS
1. CPU Socket
LGA1151 socket for Intel® Skylake Processor
2. DIMM_1~2 288-pin DDR4 Module slots
3. PCIEX16 PCI Express slot for graphics interface
4. F_AUDIO Front panel audio header
5. ATX12V 4-pin +12V power connector
6. SYS_FAN 4-pin system cooling fan connector
7. BT Battery
8. USB3F Front panel USB 3.0 header
9. F_USB2 5-pin Front panel USB 2.0 header
10. CPU_FAN 4-pin CPU cooling fan connector
11. F_USB1 10-pin Front panel USB 2.0 header
12. F_PANEL Front panel switch/LED header
13. SATA1~4 Serial ATA 6Gb/s connectors
14. COM Onboard serial port header
15. JP1 COM voltage setting jumper
16. ATX_POWER Standard 24-pin ATX power connector
17. BZ Buzzer header
18. NGFF M.2 slot for 2230 WiFi/BT card
19. CASE CASE open header
20. CLR_CMOS Clear CMOS jumper
