If you use AC’ 97 Front Panel, please tick off the option of “ Disabled Front Panel
Detect ”. If you use HD Audio Front Panel, please don’ t tick off “Disabled Front Panel
Detect ” .
* For reference only

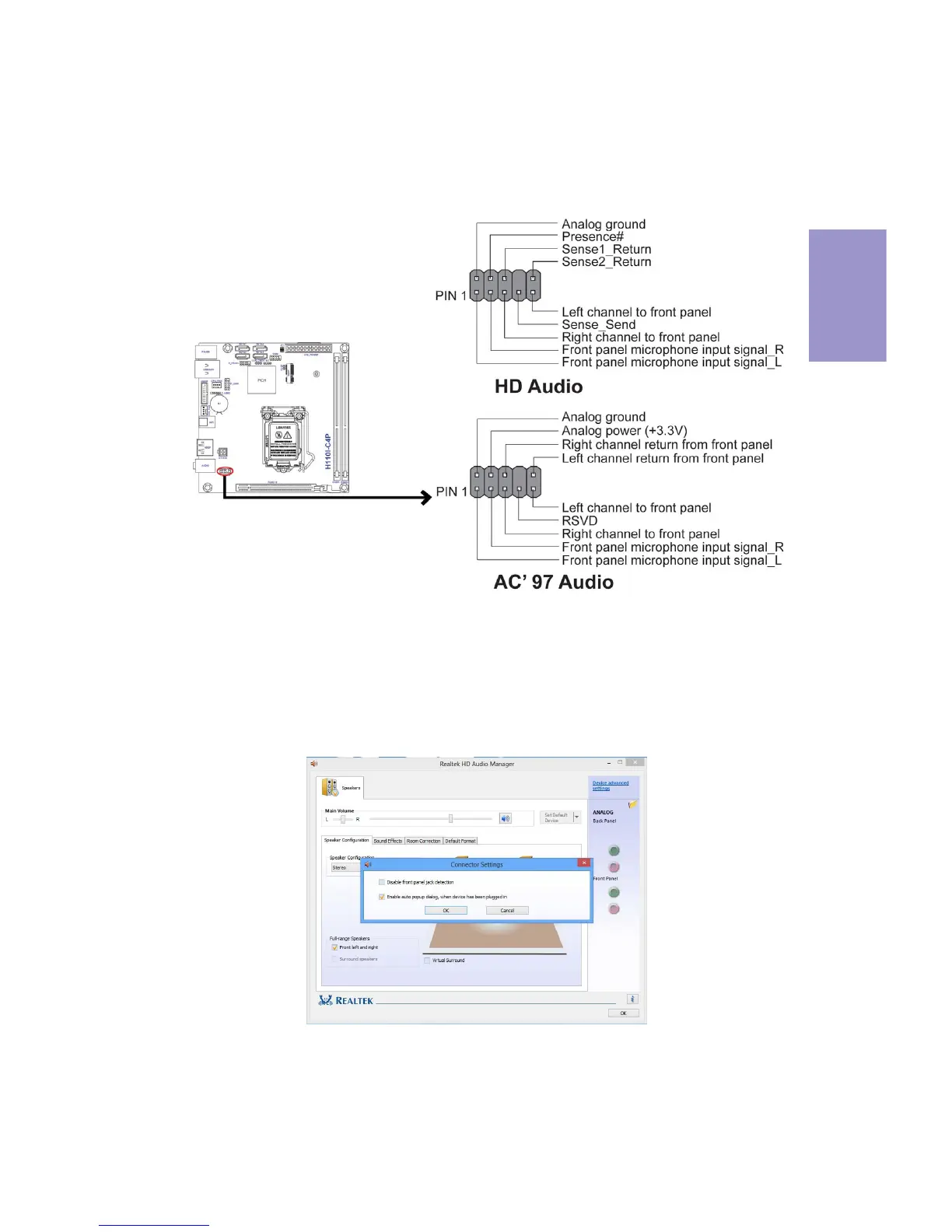

AC’ 97 Audio Configuration: To enable the front panel audio connector to
support AC97 Audio mode.
The front panel audio header allows the user to install auxiliary front-oriented
microphone and line-out ports for easier access. This header supports HD audio by
default. If you want connect an AC’ 97 front panel audio to HD onboard headers,
please set as below picture.
4. F_AUDIO: Front Panel Audio Header
