Chapter 2
21
H110I-C4P USER
MANUAL

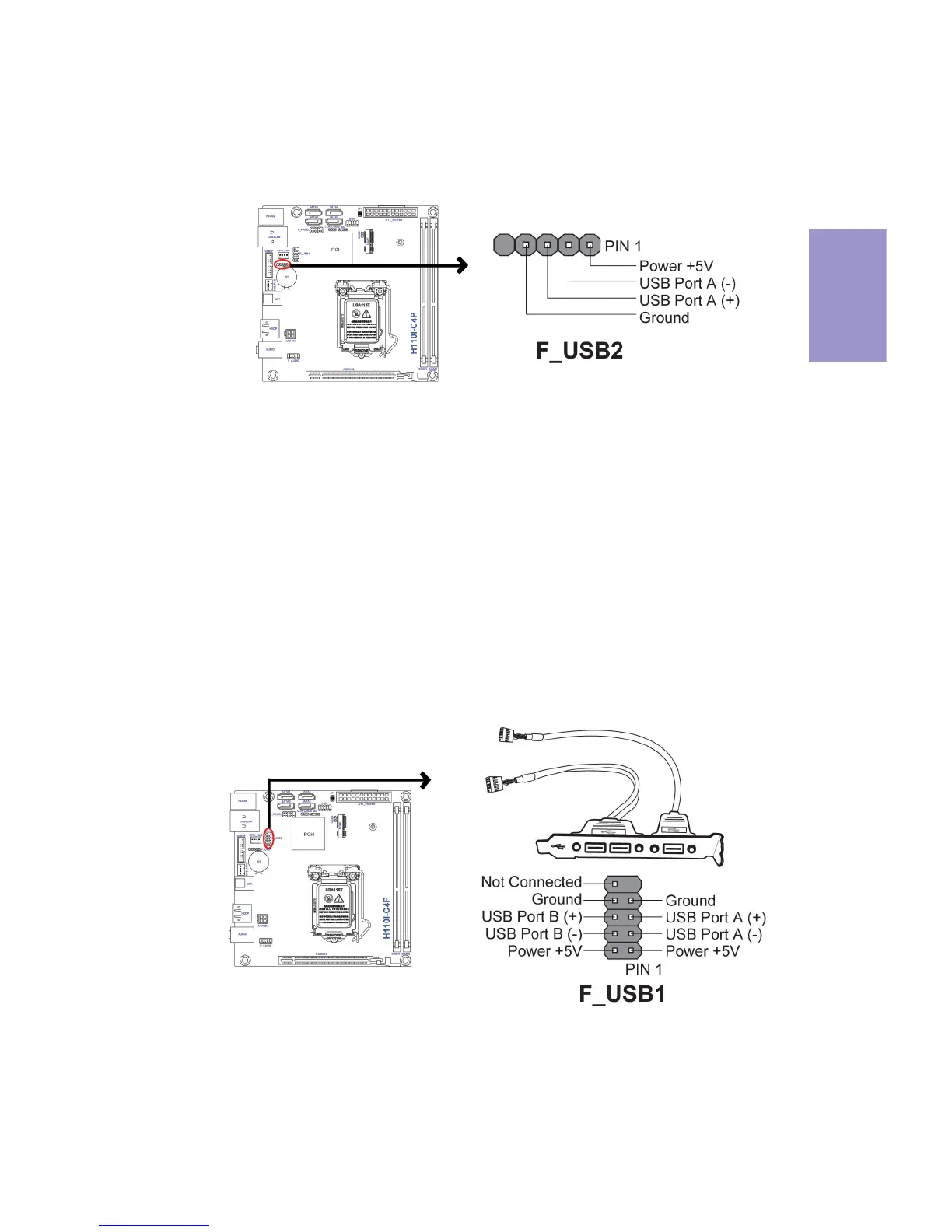

The motherboard has one 5-pin USB 2.0 header supporting one USB 2.0 ports.
6. F_USB2: 1*5-pin Front Panel USB 2.0 header
The motherboard has one USB 2.0 header supporting two USB 2.0 ports.
Additionally
, some c
omuter cases ha
ve USB ports at the fr
ont of the case. If you ha
ve
this kind of case, use auxiliary USB connector to connect the front-mounted ports to
the motherboard.
7. F_USB1: 2*5-pin Front Panel USB 2.0 header
