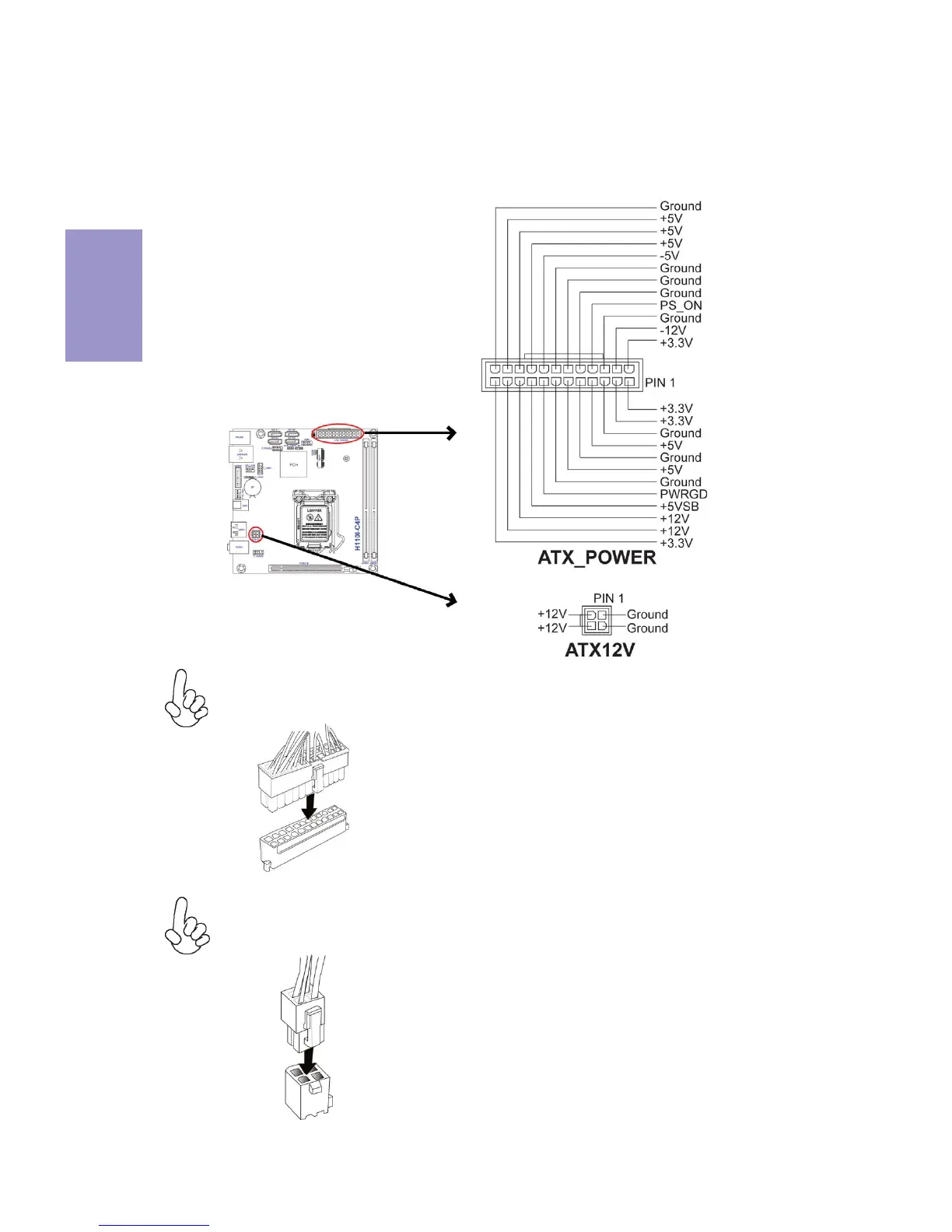

2. ATX_POWER (ATX 24-pin Power Connector) & 3. ATX12V (ATX 12V Power
Connector)
Connect the standard power supply connector to ATX_POWER.
Connect the auxiliary case power supply connector to ATX12V.
The ATX 24-pin connector allows you to connect to ATX_POWER power supply.
With ATX_POWER power supply, users
please note that when installing 24-pin
power cable, the latches of power cable
and the ATX_POWER match perfectly.
Connecting 24-pin power cable
24-pin power cable
The ATX12V power connector is used to provide power to the CPU.
When installing 4-pin power cable, the
latches of power cable and the ATX12V
match perfectly.
Connecting 4-pin power cable
4-pin power cable
