ECS H61H2-M User Manual

21
Installing the Motherboard

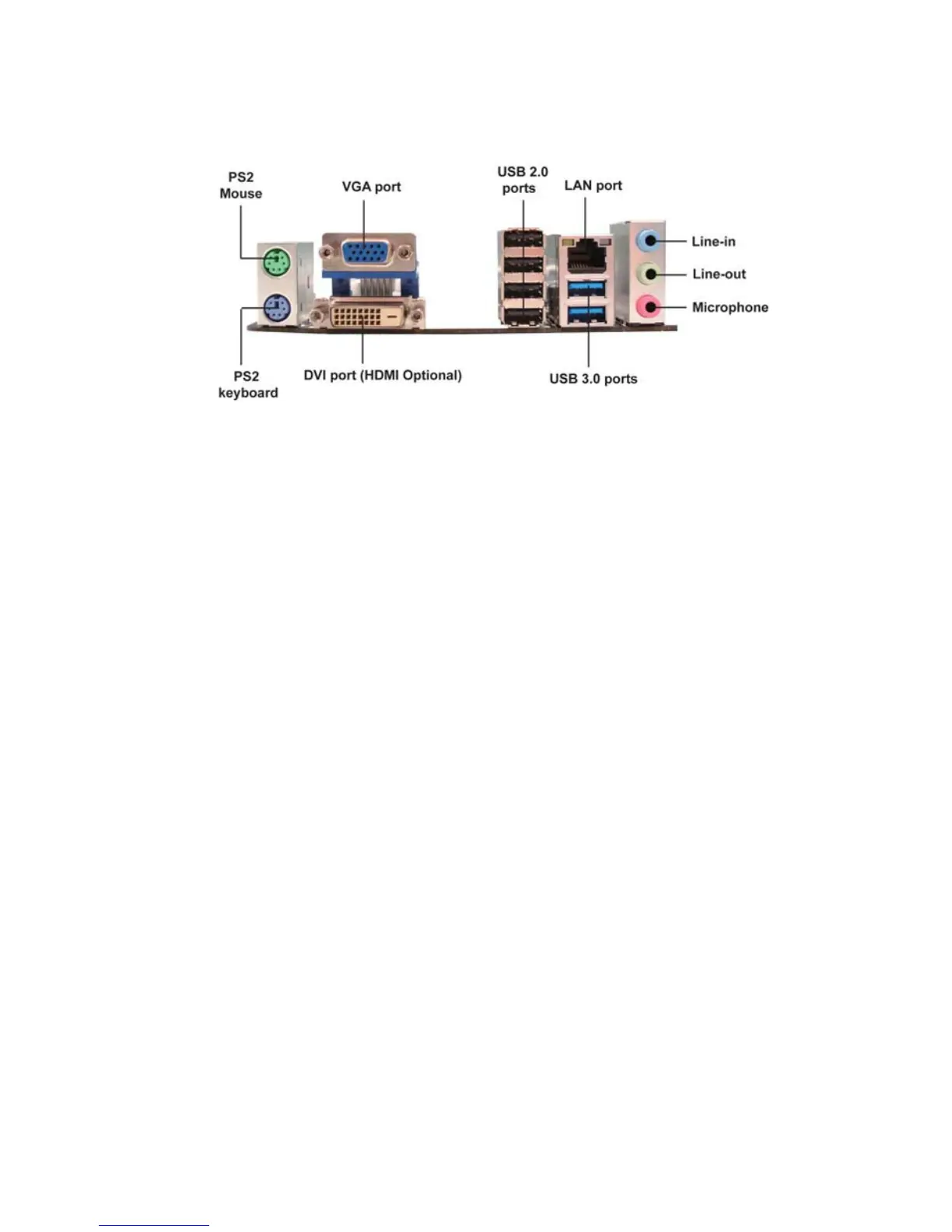

Connecting I/O Devices
The backplane of the motherboard has the following I/O ports:
LAN Port
Connect an RJ-45 jack to the LAN port to connect your
computer to the Network.
VGA Port Connect your monitor to the VGA port.
Audio Ports
Use the three audio ports to connect audio devices. The
first jack is for stereo line-in singal. The second jack is for
stereo line-out singal. The third jack is for microphone.
Connect the DVI port to the monitor.
Use the USB 2.0 ports to connect USB 2.0 devices.USB 2.0 Ports
DVI Port (HDMI
optional)
PS2 Keyboard Use the lower PS/2 port to connect a PS/2 keyboard.
PS2 Mouse Use the upper PS/2 port to connect a PS/2 pointing device.
Use the USB 3.0 ports to connect USB 3.0 devices.USB 3.0 Ports

ECS H61H2-M Specifications

General

Memory channels	Dual-channel
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
USB 2.0 connectors	2
Power fan connector	Yes
Number of Parallel ATA connectors	0
HDMI ports quantity	-
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	VIA VT1705
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H61
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Supported storage drive interfaces	SATA II
Parallel processing technology support	Not supported
LAN controller	Atheros AR8151
Networking features	Gigabti Ethernet
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
BIOS type	AMI
BIOS memory size	32 Mbit

Weight and Dimensions

Depth	220 mm
Width	244 mm
