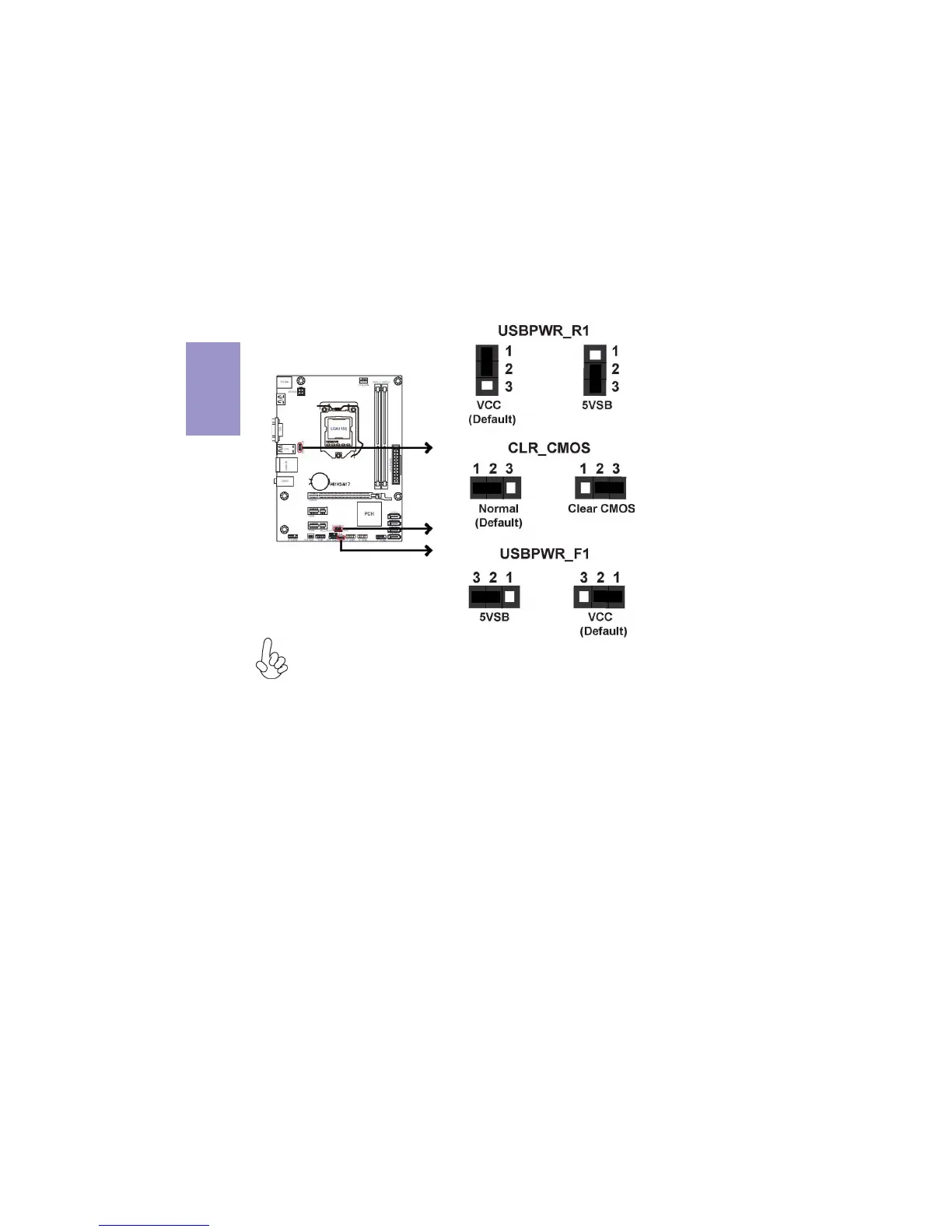

The following illustration shows the location of the motherboard jumpers. Pin 1 is
labeled.
2-3. Checking Jumper Settings
1. To avoid the system instability after clearing CMOS, we recommend users to
enter the main BIOS setting page to “Load Default Settings” and then “Save
and Exit Setup”.
2. Make sure the power supply provides enough 5VSB voltage before selecting
the 5VSB function.
3. It is required that users place the USBPWR_F & USBPWR_R cap onto 2-3 pin
rather than 1-2 pin as default if you want to wake up the computer by USB/
PS2 KB/Mouse.
