23
Installing the Motherboard
Connecting I/O Devices

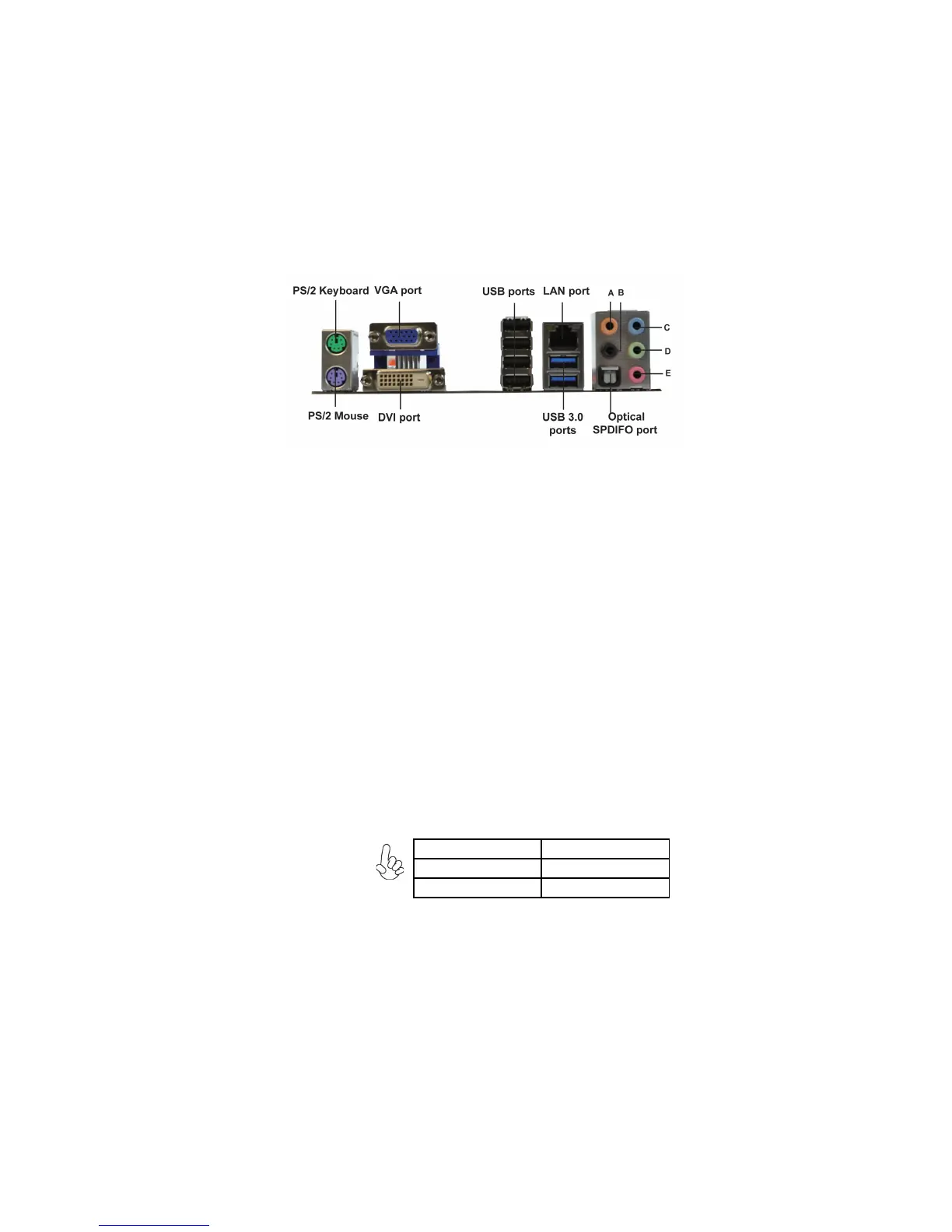

The backplane of the motherboard has the following I/O ports:
VGA Port Connect the VGA port to the monitor.
Audio Ports
Use the audio jacks to connect audio devices. The C port
is for stereo line-in signal, while the E port is for micro-
phone in signal. This motherboard supports audio de-
vices that correspond to the A, B, and D port respec-
tively. In addition, both of the 2 ports, B, and D provide
users with both right & left channels individually. Users
please refer to the following note for specific port func-
tion definition.
The above port definition can be changed to audio input
or audio output by changing the driver utility setting.
A: Center & Woofer D: Front Out
B: Back Surround E: Mic_in Rear
C: Line-in -
PS/2 Keyboard Port
LAN Ports
USB 2.0 Ports
Optical SPDIF Output
Connect an RJ-45 jack to the LAN port to connect your
computer to the Network.
Use the USB 2.0 ports to connect USB 2.0 devices.
This jack connects to external optical digital audio out-
put devices.
USB 3.0 Ports Use the USB 3.0 ports to connect USB 3.0 devices.
PS/2 Mouse Port
Use the upper PS/2 port to connect a PS/2 pointing
device.
Use the lower PS/2 port to connect a PS/2 keyboard.
DVI Port
Connect the DVI port to the monitor.
