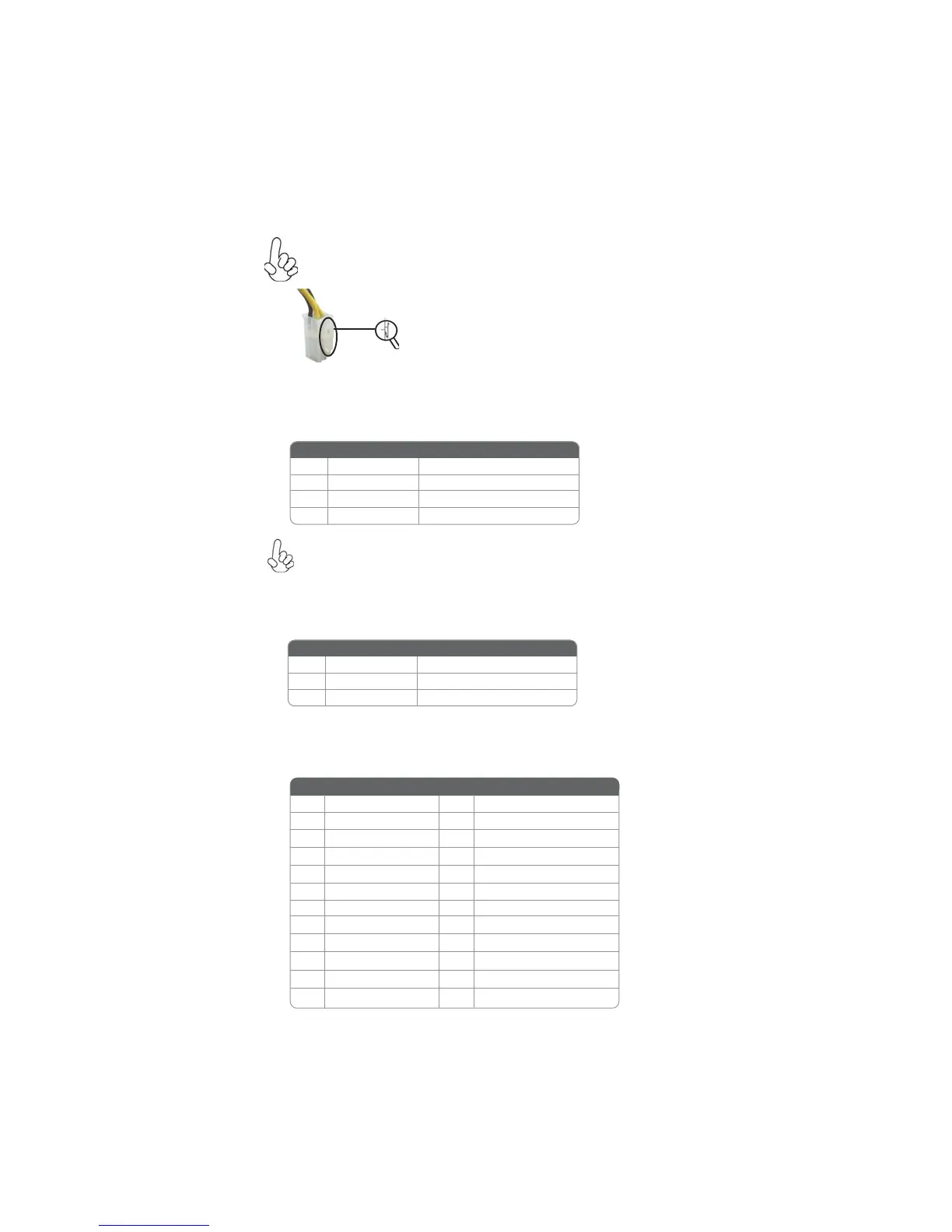

25
Installing the Motherboard
Users please note that the fan connector supports the CPU cooling fan of
1.1A ~ 2.2A (26.4W max) at +12V.
CPU_FAN: CPU cooling FAN Power Connector
The ATX12V power connector is used to provide power to the CPU.
2. Connecting 4 power cable
SYS_FAN: System cooling FAN Power Connector
1 GND System Ground
3 Sense Sensor
4 CONTROL CONTROL
Pin Signal Name Function
2 +12V Power +12V
ATX_ POWER: ATX 24-pin Power Connector
Pin Signal Name Pin Signal Name
1 +3.3V 13 +3.3V
2 +3.3V 14 -12V
3 Ground 15 Ground
4 +5V 16 PS_ON
5 Ground 17 Ground
6 +5V 18 Ground
7 Ground 19 Ground
8 PWRGD 20 -5V
9 +5VSB 21 +5V
10 +12V 22 +5V
11 +12V 23 +5V
12 +3.3V 24 Ground
1 GND System Ground
3 Sense Sensor
Pin Signal Name Function
2 +12V Power +12V
When installing 4-pin power cable, the latches
of power cable and the ATX12V match per-
fectly.
4-pin power cable
