2-4-5. Connecting Optional Devices
Refer to the following for information on connecting the motherboard’s optional
devices:
SATA3_1~2 connectors are used to support the Serial ATA 6Gb/s device, and SATA_3~4
connectors are used to support the Serial ATA 3Gb/s device, simpler disk drive ca-
bling and easier PC assembly. It eliminates limitations of the current Parallel ATA
interface. But maintains register compatibility and software compatibility with
Parallel ATA.

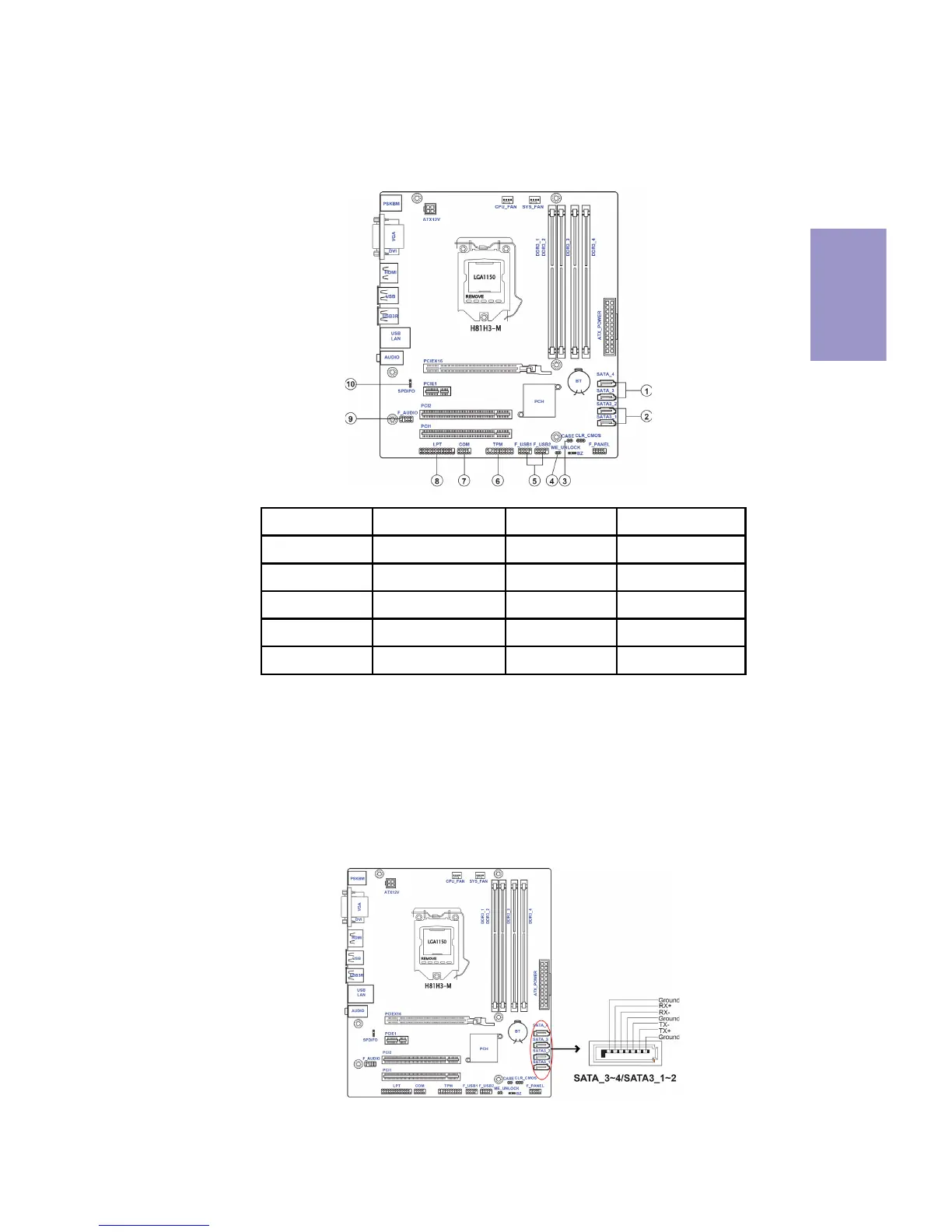

1 & 2. SATA_3~4 & SATA3_1~2: Serial ATA Connectors
No. Components No. Components
1SATA_3~46 TPM
2 SATA3_1~2 7 COM
3CASE8LPT
4 ME_UNLOCK 9 F_AUDIO
5F_USB1~210 SPDIFO
