The selection of Memory
Profiles which impacts
memory sizing behavior.
+/- : Change Opt.
Enter/Dbl Click : Select


: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
Memory Configuration

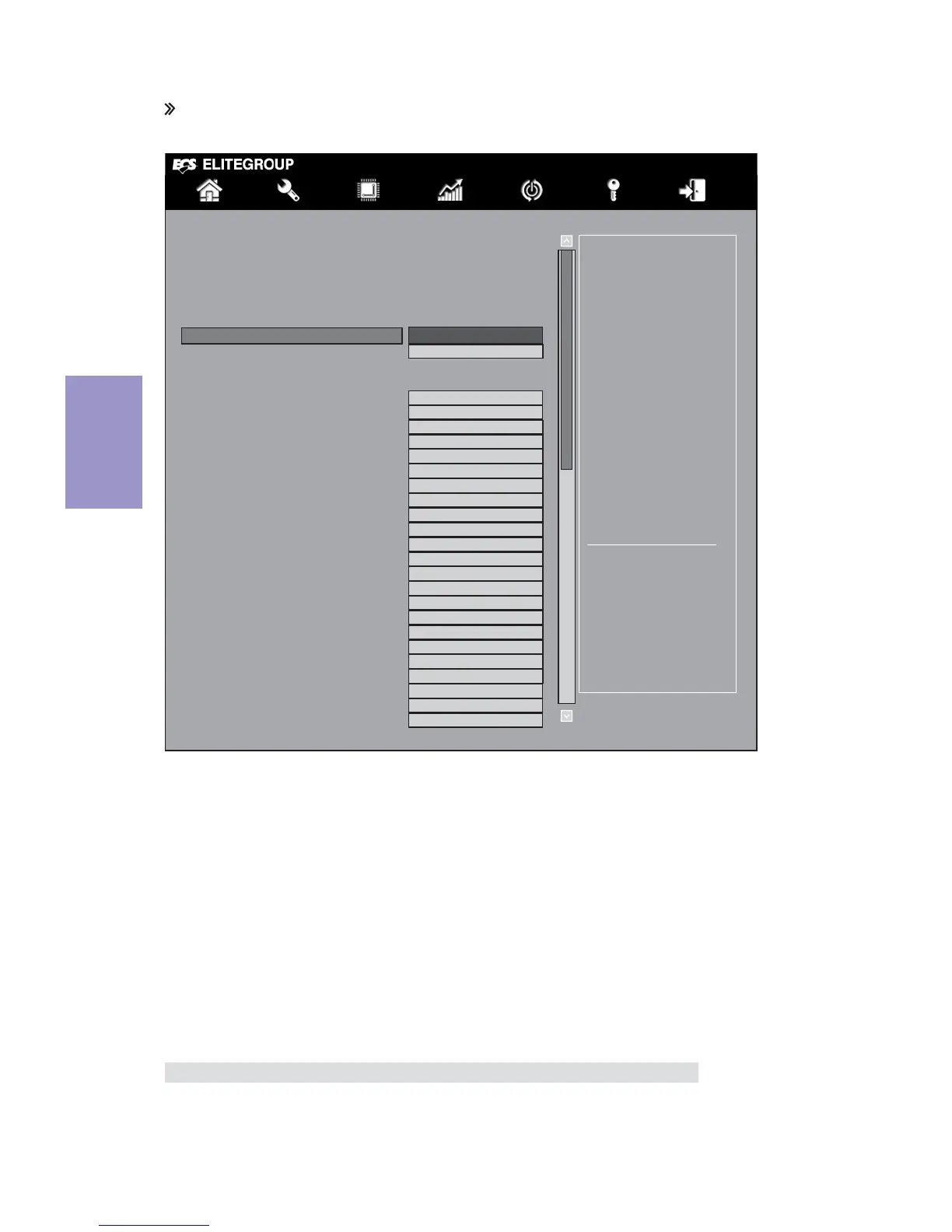

Scroll to this item to view the following screen:
Memory Information
Memory RC Version 1.7.1.0
Memory Frequency 1067 Mhz
Total Memory 4096 MB (DDR3)
Memory Profiles Automatic
Memory Frequency 1600
Timing Default Current Target
tCL 9 9 9
tRCD 9 9 9
tRP 9 9 9
tRAS 28 28 28
NMode 1 1 Auto
tWR 12 12 12
tRFC 240 240 240
tRRD 9 9 9
tWTR 6 6 6
tRTP 6 6 6
tCWL 8 8 8
tREFI 6240 6240 6240
tFAW 32 32 32
tWRPRE Auto
tCPDED Auto
tPRPDEN Auto
OdtReadDelay Auto
tCKE Auto
tCCD Auto
tWPRE Auto
tRPRE Auto
tRDRD Auto
tRDRD_dr Auto
Memory RC Version (1.7.1.0)
This item shows the information of the memory RC version.
Memory Frequency (1067 Mhz)
This item shows the information of the memory frequency.
Total Memory (4096 MB (DDR3))
This item shows the information of the total memory.
Memory Profiles (Automatic)
This item enables you to set the memory profiles. The selection of memory profiles
impacts memory sizing behavior.
Press <Esc> to return to the M.I.B. III Menu page.
