The front panel audio header allows the user to install auxiliary front-oriented
microphone and line-out ports for easier access. This header supports HD audio by
default. If you want connect an AC
’ 97 front panel audio to HD onboard headers,

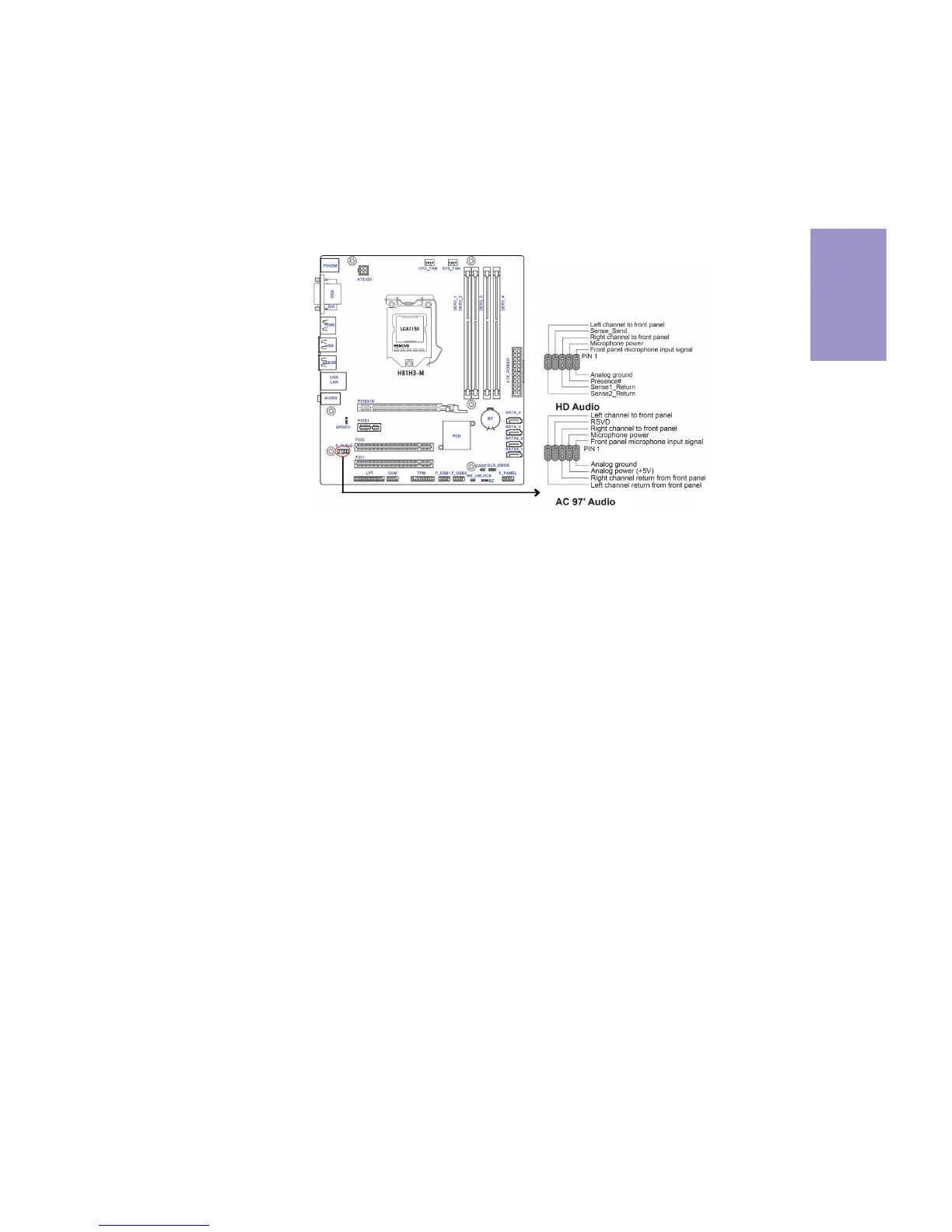

please set as below picture.
9. F_AUDIO: Front Panel Audio Header
If you use AC’ 97 Front Panel, please tick off the option of “ Disabled Front Panel
Detect ”. If you use HD Audio Front Panel, please don’ t tick off “Disabled Front Panel
Detect ”.
AC’ 97 Audio Configuration: To enable the front panel audio connector to
support AC97 Audio mode.
