Using BIOS

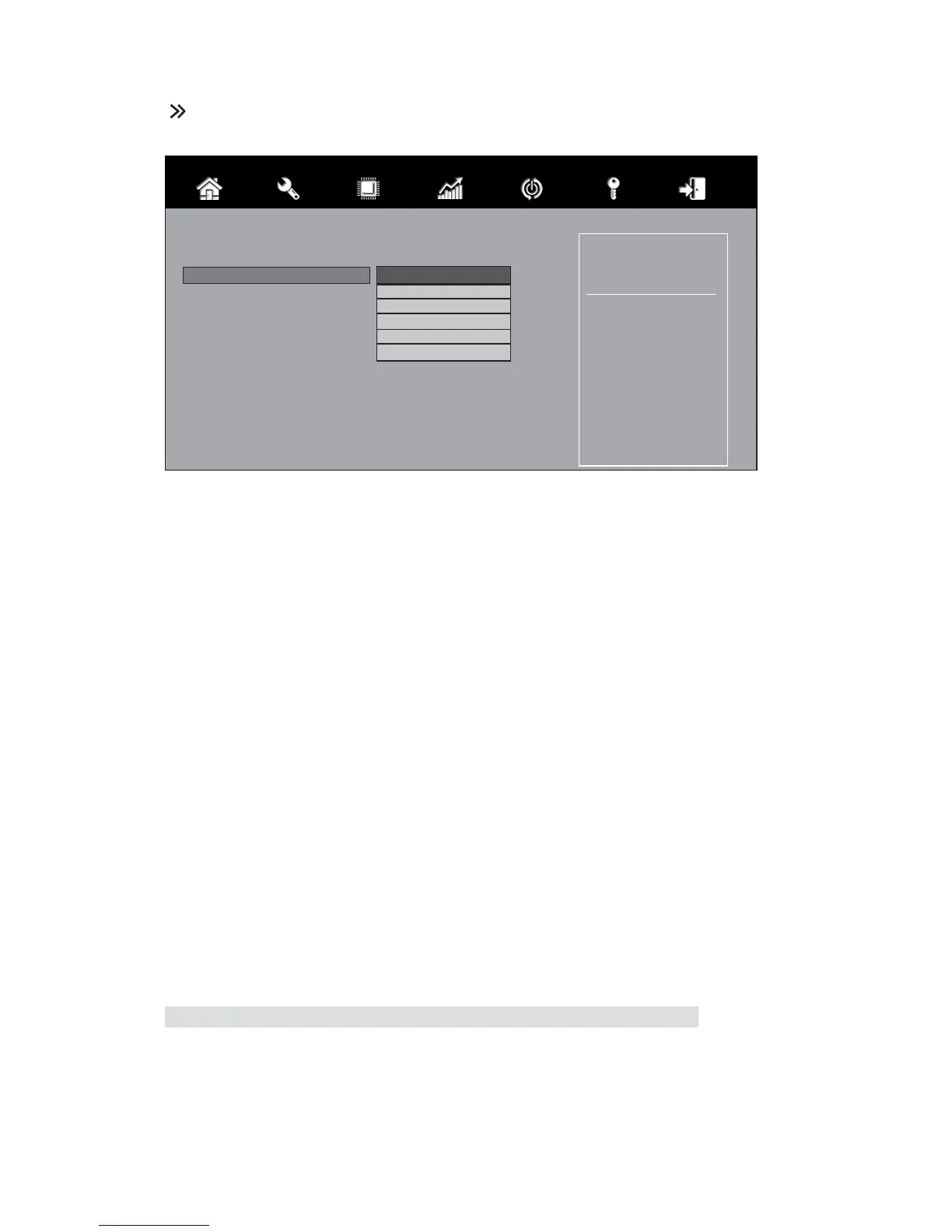

Aptio Setup Utility - Copyright (C) 2010 American Megatrends, Inc.


Power Management Setup
This page sets up some parameters for system power management operation.
Resume By PME (Disabled)
The system can be turned off with a software command. If you enable this item, the
system can automatically resume if there is an incoming call on the PCI Modem or
PCI/PCIE LAN card.
You must use an ATX power supply in order to use this feature.
Use this item to do wake-up action if inserting the PCI/PCIE card.
Resume By USB (Disabled)
This item allows you to enable/disable the USB device wakeup function from S3
mode.
Resume By RTC Alarm (Disabled)
The system can be turned off with a software command. If you enable this item, the
system can automatically resume at a fixed time based on the system’s RTC
(realtimeclock). Use the items below this one to set the date and time of the
wake-up alarm. You must use an ATX power supply in order to use this feature.
EUP Function (Enabled)
This item allows user to enable or disable EUP support.
Press <Esc> to return to the Advanecd Menu page.
Main Advanced Chipset Tweak Security Boot Exit
About Resume by Ring
+/- : Change Opt.
Enter/Dbl Click : Select


: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
Resume on RING (Disabled)
The system can be turned off with a software command. If you enable this item, the
system can automatically resume if there is an incoming call on the Modem. You
must use an ATX power supply in order to use this feature.
Power LED Type (Dual Color LED)
This item shows the type of the Power LED.
Power Management Setup
Resume By RING Disabled
Resume By PME Disabled
Resume By USB Disabled
Resume By RTC Alarm Disabled
EUP Function Enabled
Power LED Type Dual Color LED

ECS Liva One Specifications

General

SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
SSD interface	M.2
Storage media	SSD
Optical drive type	No
Card reader integrated	Yes
Total storage capacity	80 GB
Compatible memory cards	MicroSD (TransFlash)
Number of SSDs installed	1
Number of storage drives supported	2
Product type	Mini PC
Audio output channels	2.0 channels
Bluetooth version	4.0
Ethernet LAN data rates	10, 100, 1000 Mbit/s
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Volume	1 L
Product color	Black
Power supply	90 W
Certification	CE, FCC, BSMI
Tcase	66 °C
Bus type	DMI3
Stepping	S0
Tjunction	- °C
FSB Parity	-
Processor cache	3 MB
Processor model	i3-6100T
System bus rate	8 GT/s
Processor family	Intel® Core™ i3
Processor series	Intel Core i3-6100 Desktop series
Processor socket	LGA 1151 (Socket H4)
Processor codename	Skylake
Processor frequency	3.2 GHz
Processor cache type	Smart Cache
Configurable TDP-down	- W
Processor lithography	14 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	3.0
Processor operating modes	64-bit
PCI Express configurations	2x8, 1x8+2x4, 1x16
Thermal Design Power (TDP)	35 W
Maximum number of PCI Express lanes	16
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM
Memory voltage supported by processor	1.35 V
Memory clock speeds supported by processor	1333, 1600, 1866, 2133 MHz
Memory bandwidth supported by processor (max)	34.1 GB/s
Maximum internal memory supported by processor	64 GB
Scalability	1S
Processor code	SR2HE
Processor ARK ID	90734
Processor package size	37.5 x 37.5 mm
Supported instruction sets	SSE4.1, AVX 2.0, SSE4.2
Thermal solution specification	PCG 2015A
Intel Secure Key Technology version	1.00
Intel Stable Image Platform Program (SIPP) version	0.00
On-board graphics card ID	1912
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 530
On-board graphics card family	Intel® HD Graphics
Maximum on-board graphics card memory	1.74 GB
On-board graphics card OpenGL version	4.4
On-board graphics card base frequency	350 MHz
On-board graphics card DirectX version	12.0
On-board graphics card dynamic frequency (max)	950 MHz
Number of displays supported (on-board graphics)	3
Internal memory	4 GB
Memory channels	Dual-channel
Internal memory type	DDR3L-SDRAM
Maximum internal memory	32 GB

Weight and Dimensions

Depth	173 mm
Width	33 mm
Height	176 mm
Weight	1200 g
