Using the Software
Drivers Tab
Setup
Click the Setup button to run the software installation program.
Select from the menu which software you want to install.
Browse CD
The Browse CD button is the standard Windows command that
allows you to open Windows Explorer and show the contents of the
support disk.
Before installing the software from Windows Explorer, look for a file
named README.TXT
or something similar. This file may contain
important information to help you install the software correctly.
Some software is installed in separate folders for different operating
systems, such as Windows 7/8/10. Always go to the correct folder for
the kind of OS you are using.
In install the software, execute a file named SETUP.EXE by double-
clicking the file and then following the instructions on the screen.
Exit
The Exit button closes the Auto Setup window.
Utilities Tab
Lists the software utilities that are available on the disk.
Information Tab
Displays the path for all software and drivers available on the disk.
Running Setup
Follow these instructions to install device drivers and software for the motherboard:

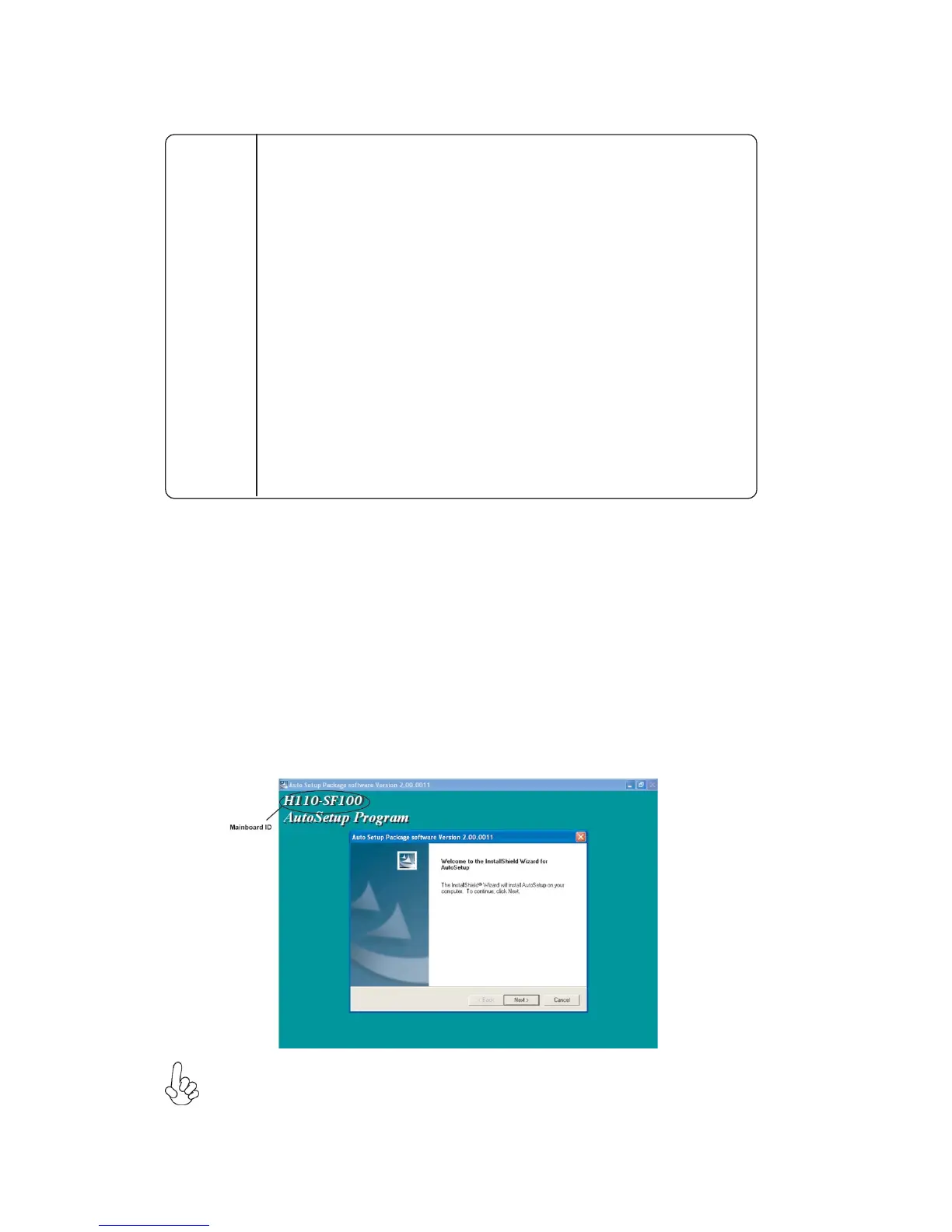

1. Click Setup. The installation program begins:
The following screens are examples only. The screens and driver lists will be
different according to the motherboard you are installing.
The motherboard identification is located in the upper left-hand corner.

ECS Liva One Specifications

General

SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
SSD interface	M.2
Storage media	SSD
Optical drive type	No
Card reader integrated	Yes
Total storage capacity	80 GB
Compatible memory cards	MicroSD (TransFlash)
Number of SSDs installed	1
Number of storage drives supported	2
Product type	Mini PC
Audio output channels	2.0 channels
Bluetooth version	4.0
Ethernet LAN data rates	10, 100, 1000 Mbit/s
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Volume	1 L
Product color	Black
Power supply	90 W
Certification	CE, FCC, BSMI
Tcase	66 °C
Bus type	DMI3
Stepping	S0
Tjunction	- °C
FSB Parity	-
Processor cache	3 MB
Processor model	i3-6100T
System bus rate	8 GT/s
Processor family	Intel® Core™ i3
Processor series	Intel Core i3-6100 Desktop series
Processor socket	LGA 1151 (Socket H4)
Processor codename	Skylake
Processor frequency	3.2 GHz
Processor cache type	Smart Cache
Configurable TDP-down	- W
Processor lithography	14 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	3.0
Processor operating modes	64-bit
PCI Express configurations	2x8, 1x8+2x4, 1x16
Thermal Design Power (TDP)	35 W
Maximum number of PCI Express lanes	16
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM
Memory voltage supported by processor	1.35 V
Memory clock speeds supported by processor	1333, 1600, 1866, 2133 MHz
Memory bandwidth supported by processor (max)	34.1 GB/s
Maximum internal memory supported by processor	64 GB
Scalability	1S
Processor code	SR2HE
Processor ARK ID	90734
Processor package size	37.5 x 37.5 mm
Supported instruction sets	SSE4.1, AVX 2.0, SSE4.2
Thermal solution specification	PCG 2015A
Intel Secure Key Technology version	1.00
Intel Stable Image Platform Program (SIPP) version	0.00
On-board graphics card ID	1912
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 530
On-board graphics card family	Intel® HD Graphics
Maximum on-board graphics card memory	1.74 GB
On-board graphics card OpenGL version	4.4
On-board graphics card base frequency	350 MHz
On-board graphics card DirectX version	12.0
On-board graphics card dynamic frequency (max)	950 MHz
Number of displays supported (on-board graphics)	3
Internal memory	4 GB
Memory channels	Dual-channel
Internal memory type	DDR3L-SDRAM
Maximum internal memory	32 GB

Weight and Dimensions

Depth	173 mm
Width	33 mm
Height	176 mm
Weight	1200 g
