Using BIOS
Press <Esc> to return to the Super IO Configuration page.
Press <Esc> to return to the Advanced Menu page.



Super IO Configuration
Use this item to show the information of the Super IO Configuration.
Super IO Chip (IT8613)
This item shows the information of the super IO chip.
 Serial Port 1 Configuration
Scroll to this item and press <Enter> to view the following screen:
Serial Port (Enabled)
This item allows you to enable or disable serial port.
Device Settings (IO=3F8h; IRQ=4)
This item shows the information of the device settings.
Change Settings (Auto)
Use this item to change device settings.
Set Parameters of Serial
Port 1 (COMA)

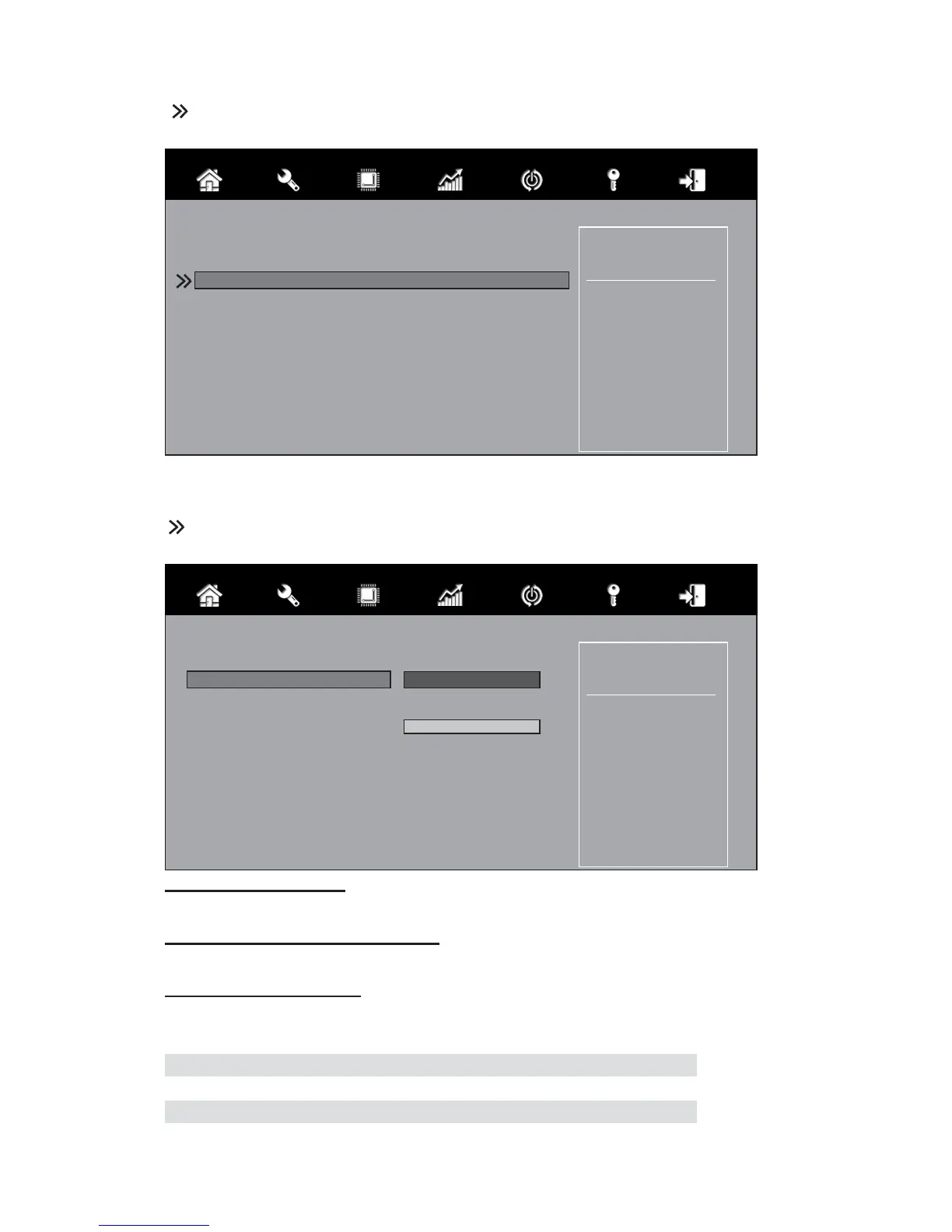

Main Advanced Chipset Tweak Security Boot Exit
Super IO Configuration
Super IO Chip IT8613
Serial Port 1 Configuration
+/- : Change Opt.
Enter/Dbl Click : Select


: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
Enabled or Disabled Serial
Port (COM)
Main Advanced Chipset Tweak Security Boot Exit
+/- : Change Opt.
Enter/Dbl Click : Select


: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
Serial Port 1 Configuration
Serial Port [Enabled]
Device Settings IO=3F8h; IRQ=4;
Change Settings Auto

ECS Liva One Specifications

General

SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
SSD interface	M.2
Storage media	SSD
Optical drive type	No
Card reader integrated	Yes
Total storage capacity	80 GB
Compatible memory cards	MicroSD (TransFlash)
Number of SSDs installed	1
Number of storage drives supported	2
Product type	Mini PC
Audio output channels	2.0 channels
Bluetooth version	4.0
Ethernet LAN data rates	10, 100, 1000 Mbit/s
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Volume	1 L
Product color	Black
Power supply	90 W
Certification	CE, FCC, BSMI
Tcase	66 °C
Bus type	DMI3
Stepping	S0
Tjunction	- °C
FSB Parity	-
Processor cache	3 MB
Processor model	i3-6100T
System bus rate	8 GT/s
Processor family	Intel® Core™ i3
Processor series	Intel Core i3-6100 Desktop series
Processor socket	LGA 1151 (Socket H4)
Processor codename	Skylake
Processor frequency	3.2 GHz
Processor cache type	Smart Cache
Configurable TDP-down	- W
Processor lithography	14 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	3.0
Processor operating modes	64-bit
PCI Express configurations	2x8, 1x8+2x4, 1x16
Thermal Design Power (TDP)	35 W
Maximum number of PCI Express lanes	16
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM
Memory voltage supported by processor	1.35 V
Memory clock speeds supported by processor	1333, 1600, 1866, 2133 MHz
Memory bandwidth supported by processor (max)	34.1 GB/s
Maximum internal memory supported by processor	64 GB
Scalability	1S
Processor code	SR2HE
Processor ARK ID	90734
Processor package size	37.5 x 37.5 mm
Supported instruction sets	SSE4.1, AVX 2.0, SSE4.2
Thermal solution specification	PCG 2015A
Intel Secure Key Technology version	1.00
Intel Stable Image Platform Program (SIPP) version	0.00
On-board graphics card ID	1912
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 530
On-board graphics card family	Intel® HD Graphics
Maximum on-board graphics card memory	1.74 GB
On-board graphics card OpenGL version	4.4
On-board graphics card base frequency	350 MHz
On-board graphics card DirectX version	12.0
On-board graphics card dynamic frequency (max)	950 MHz
Number of displays supported (on-board graphics)	3
Internal memory	4 GB
Memory channels	Dual-channel
Internal memory type	DDR3L-SDRAM
Maximum internal memory	32 GB

Weight and Dimensions

Depth	173 mm
Width	33 mm
Height	176 mm
Weight	1200 g
