9
Installing the Motherboard
Checking Jumper Settings

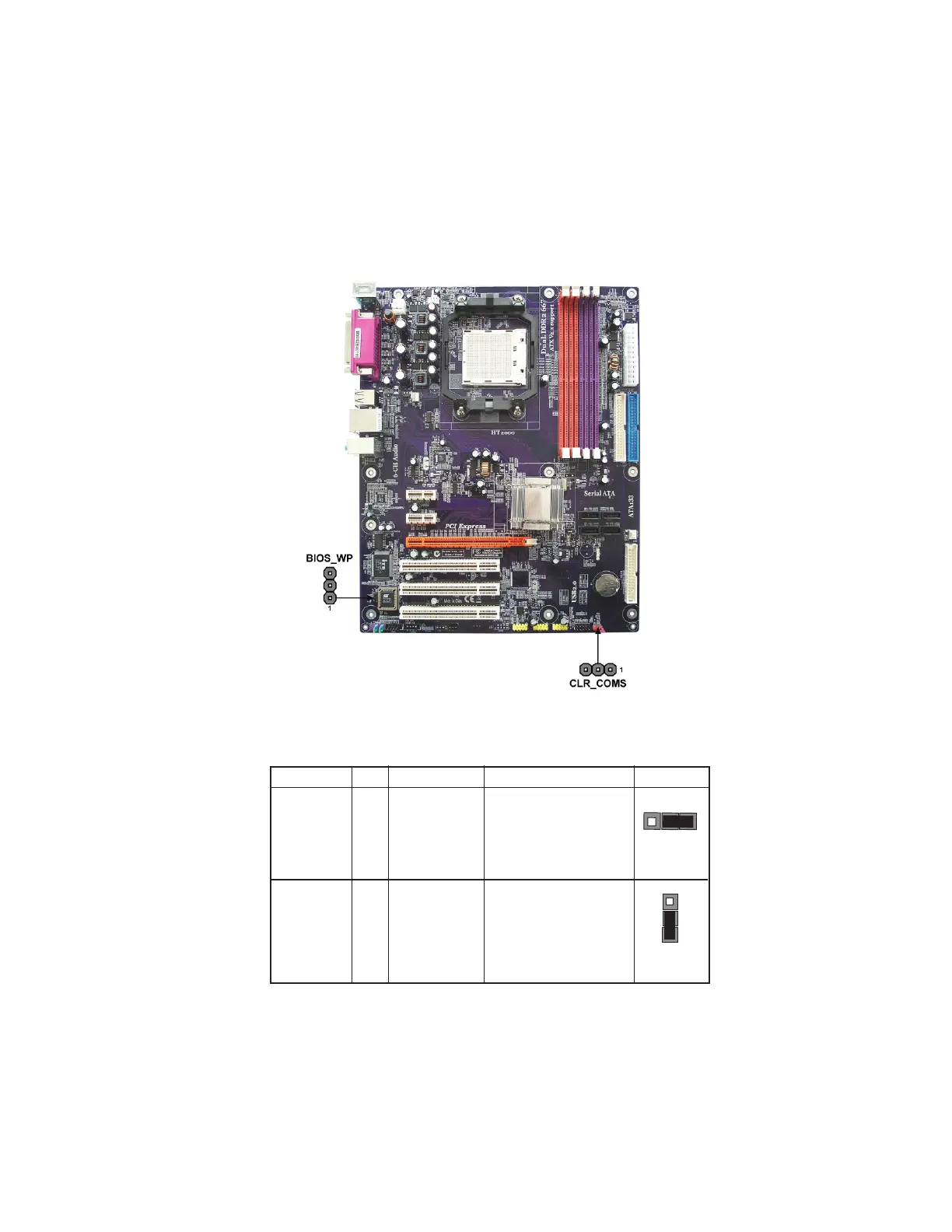

The following illustration shows the location of the motherboard jumpers. Pin 1 is labeled.
Jumper Settings
Jumper
T
y
p
e
Description
Setting (default)
CLR_COMS
3-pin
CLEAR CMOS
1-2: NORMAL
2-3: CLEAR
Before clearing the
CMOS, make sure to
turn the system off.
CLR_COMS
1
BIOS_WP
3-pin
BIOS PROTECT
1-2: DISABLE
2-3: ENABLE
1
BIOS_WP
14
16
Table of Contents
Default Chapter
5
Table of Contents
5
Chapter 1 Introducing the Motherboard
7
Introduction
7
Features
8
Motherboard Components
10
Chapter 2 Installing the Motherboard
13
Safety Precautions
13
Choosing a Computer Case
13
Installing the Motherboard in a Case
13
Checking Jumper Settings
14
Setting Jumpers
14
Checking Jumper Settings
15
Jumper Settings
15
Connecting Case Components
16
Front Panel Header
18
Installing Hardware
18
Installing the Processor
18
Installing Memory Modules
20
Installing a Hard Disk Drive/CD-ROM/SATA Hard Drive
22
Installing a Floppy Diskette Drive
24
Installing Add-On Cards
24
Connecting Optional Devices
26
Connecting I/O Devices
29
Chapter 3 Using BIOS
31
About the Setup Utility
31
The Standard Configuration
31
Entering the Setup Utility
31
Updating the BIOS
33
Using BIOS
33
Standard CMOS Features
34
Advanced BIOS Features
36
Advanced Chipset Features
40
Integrated Peripherals
42
Power Management Setup
46
PNP/PCI Configurations
47
PC Health Status
49
Load Fail-Safe Defaults
51
Load Optimized Defaults
51
Set Supervisor/User Password
51
Save & Exit Setup
52
Exit Without Saving
52
Chapter 4 Using the Motherboard Software
53
About the Software CD-ROM
53
Auto-Installing under Windows 2000/XP
53
Running Setup
54
Manual Installation
56
Utility Software Reference
56
