2-4. Installing Hardware
2-4-1. Installing Memory Modules
• This motherboard accommodates two memory modules. It can support
two 204-pin DDR3 SO-DIMM 1600/1333/1066.
• Do not remove any memory module from its antistatic packaging until
you are ready to install it on the motherboard. Handle the modules only
by their edges. Do not touch the components or metal parts. Always wear
a grounding strap when you handle the modules.
• You must install one module in SO_DIMM1 or two modules in the two slots.
Total memory capacity is 16 GB.
• Refer to the following to install the memory modules.

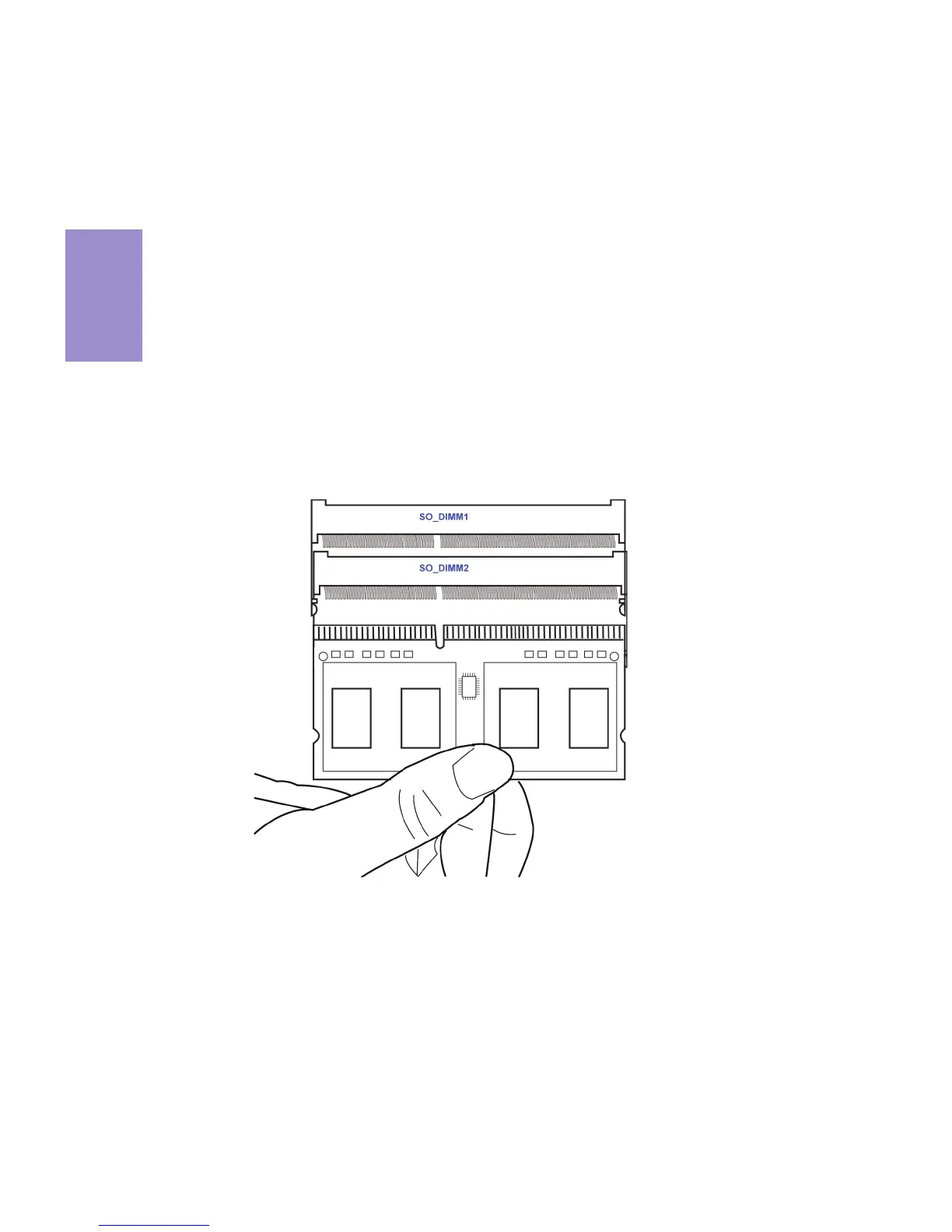

Install the DIMM module into the slot and press it firmly down until it fits
in place. Check that the cutouts on the DIMM module edge connector
match the notches in the DIMM slot.
