Chapter 2
24
NM70-TI USER MANUAL

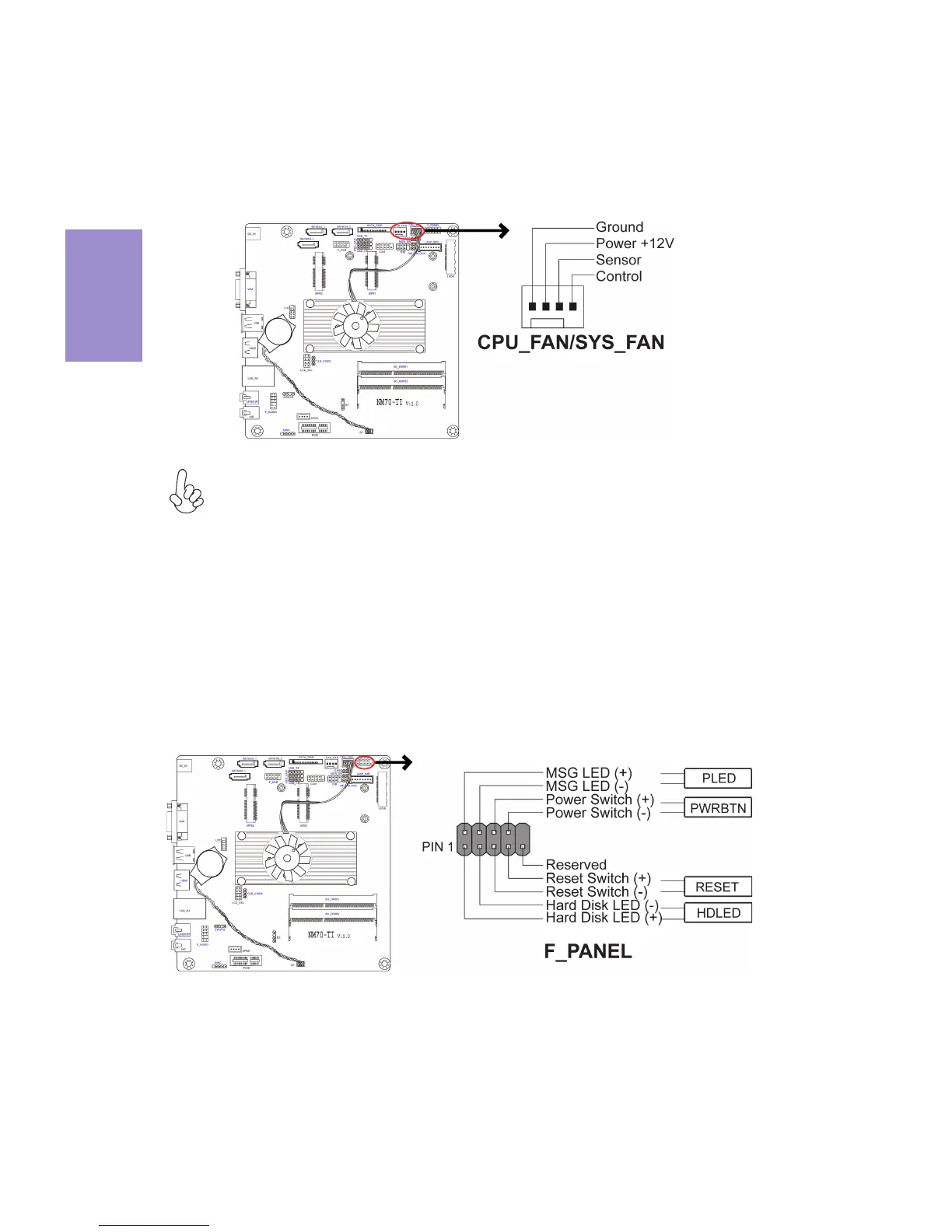

2 & 3. SYS_FAN & PWR_FAN: System Cooling FAN Power Connector & Power
Cooling FAN Power Connector
Users please note that the fan connector supports the CPU cooling fan of 1.1A
~ 2.2A (26.4W max) at +12V.
Connect the system cooling fan cable to SYS_FAN.
Connect the CPU cooling fan cable to CPU_FAN.
4. Front Panel Header
The front panel header (F_PANEL) provides a standard set of switch and LED headers
commonly found on ATX or Micro ATX cases.
To Next Page
