ECS NM70-TI User Manual

Chapter 1
6
NM70-TI USER MANUAL

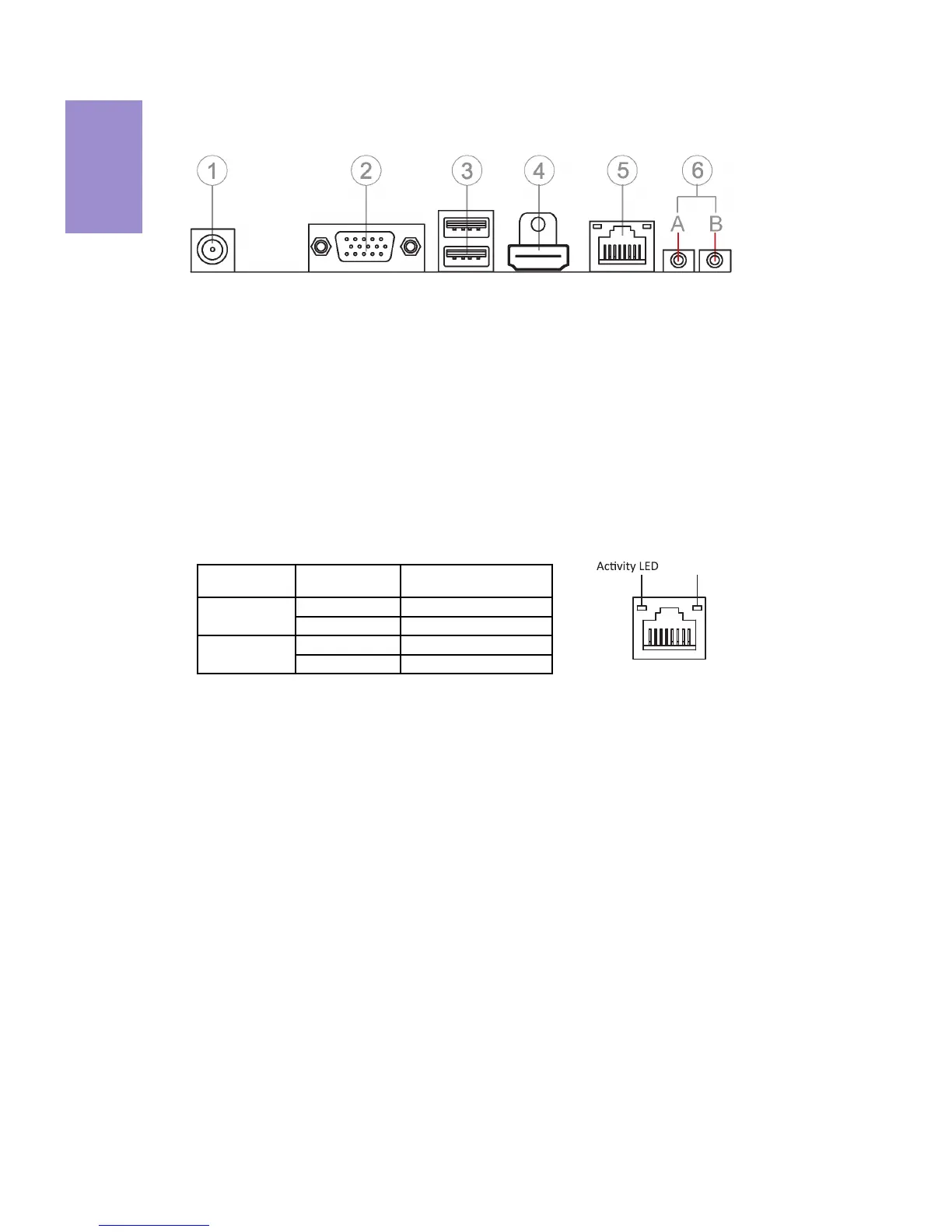

I/O Ports
1. DC_IN Port
Connect the DC_IN port to the power adapter.
2. VGA Port
Connect your monitor to the VGA port.
3. USB 2.0 Ports
Use the USB 2.0 ports to connect USB 2.0 devices.
4. HDMI Port
You can connect the display device to the HDMI port.
5. LAN Port
Connect an RJ-45 jack to the LAN port to connect your computer to the Network.
6. Audio Ports
Use the two audio jacks to connect audio devices. The left jack is for stereo line-out
signal. The right jack is for microphone.
LAN LED Status Description
OFF
No data
Orange blinking
Active
OFF
No link
Green
Link
Activity LED
Link LED
Link LED
LAN Port

ECS NM70-TI Specifications

General

Brand	ECS
Model	NM70-TI
Category	Motherboard
Language	English
