Chapter 2
14
NM70-TI USER MANUAL
SATA6G_1 connector supports the Serial ATA 6.0Gb/s device, SATA3G_1~2 connectors
are used to support the Serial ATA 3.0Gb/s device, simpler disk drive cabling and
easier PC assembly. It eliminates limitations of the current Parallel ATA interface.
But maintains register compatibility and software compatibility with Parallel ATA.

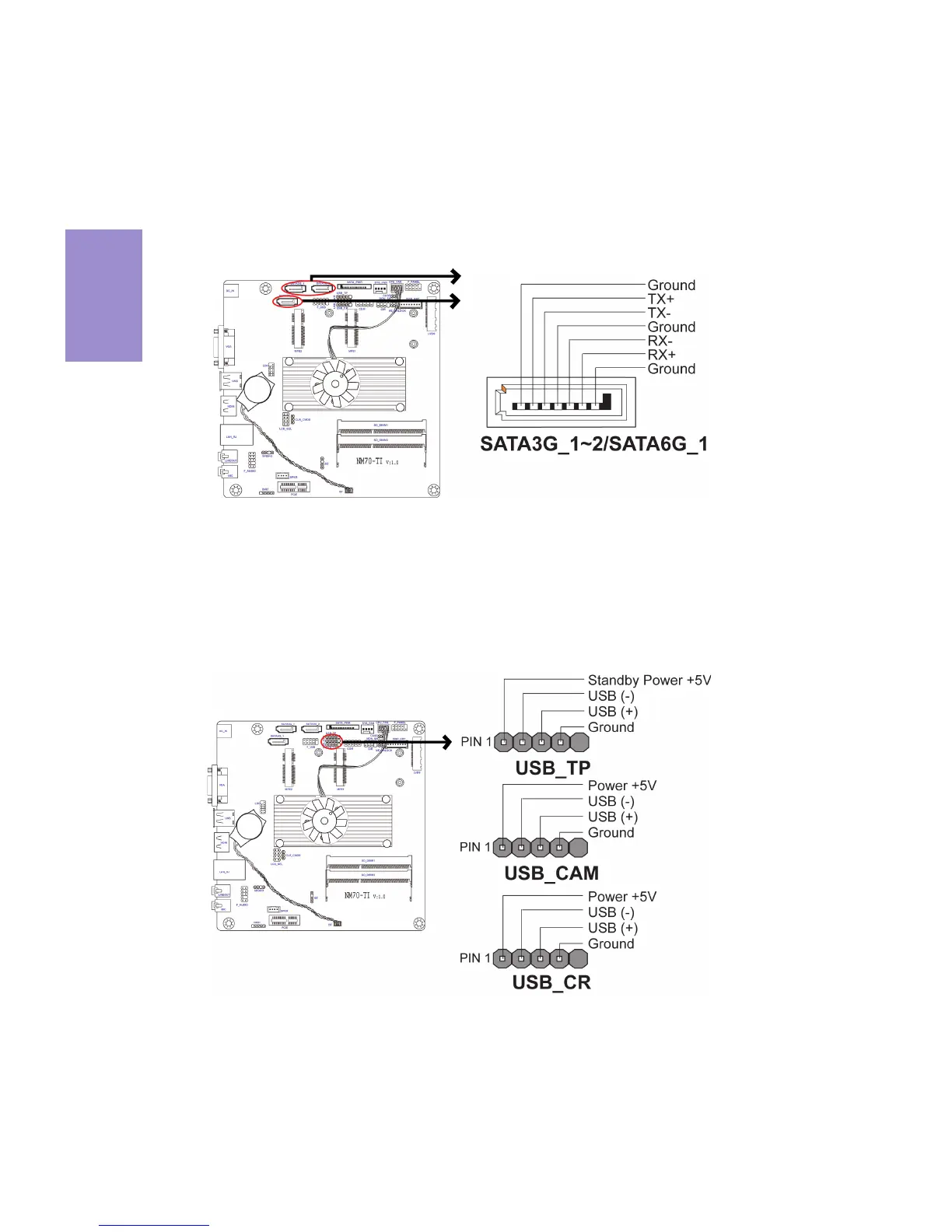

1 & 2. SATA6G_1 & SATA3G_1~2: Serial 6.0Gb/s ATA Connector & Serial 3.0Gb/
s ATA Connectors
3, 4 & 5. USB_CR/USB_CAM/USB_TP: Card Reader Header/CCD Header/Touch
Panel Header
