Chapter 2
16
NM70-TI USER MANUAL

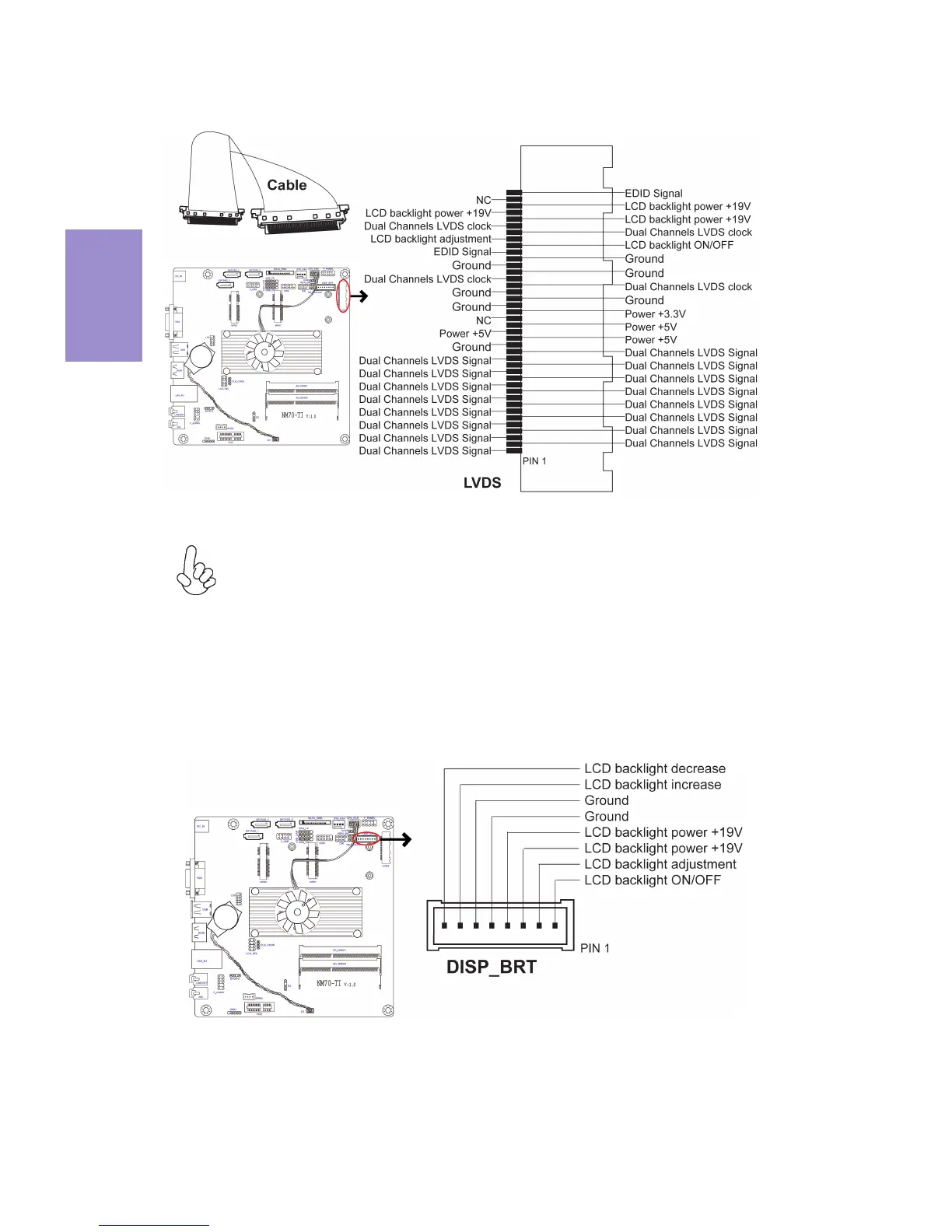

9. DISP_BRT
: Displa
y Brightness Header (Optional)
8. L
VDS: L
VDS Interf
ace (Optional)
1. Y
ou can connect the large end of the c
able to the LED Panel, and connect
the other small end to the slot on the motherboard.
2.
Due to the chips
et limitation, using dual displays L
VDS(AIO) + VGA or
L
VDS(AIO) + HDMI will cause the problem that you may not en
ter BIOS setup
or have the display problem.
