Chapter 2
26
NM70-TI USER MANUAL

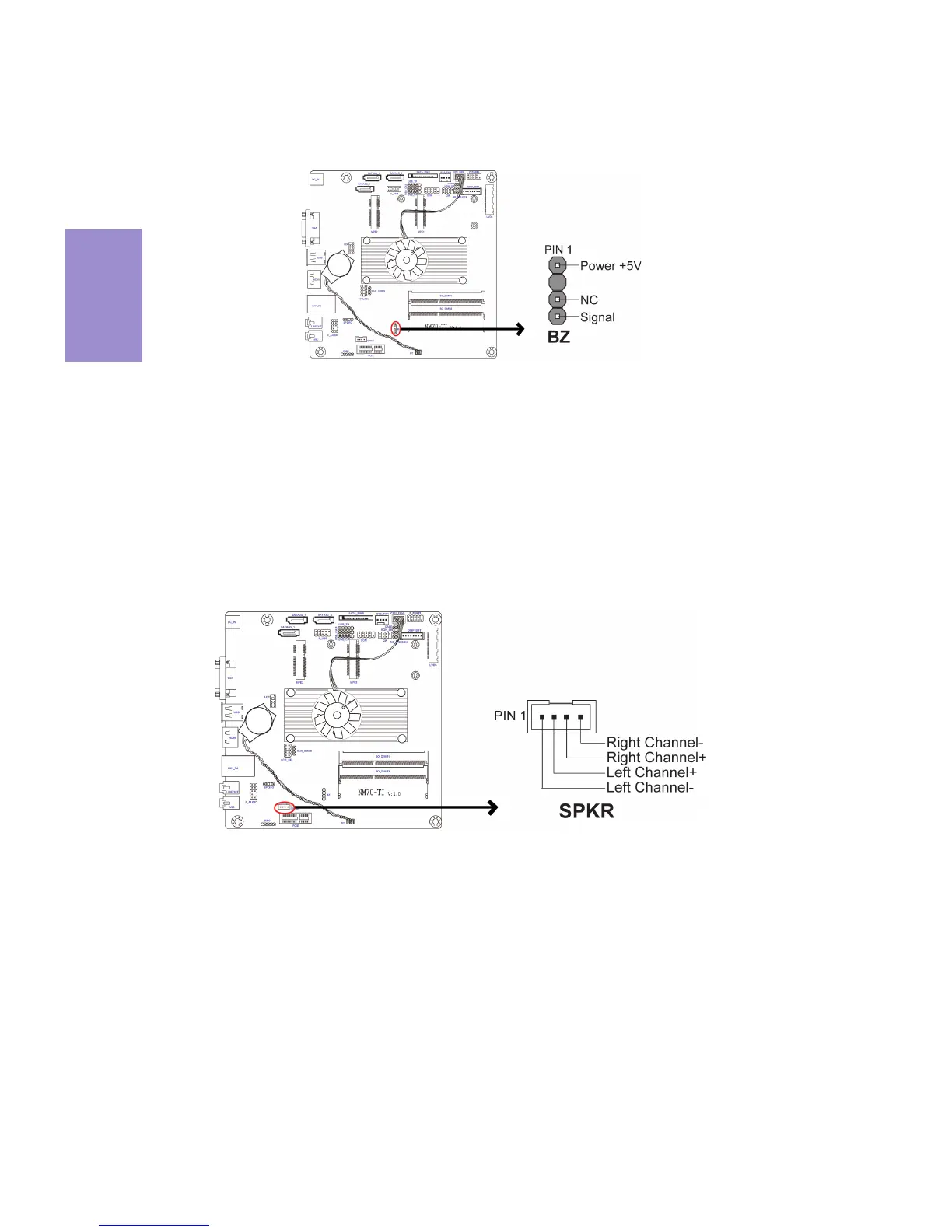

6. BZ: Buzzer header
Connect the case speaker cable to SPKR.
7. SPKR: Internal Speaker Header
This concludes Chapter 2. The next chapter covers the BIOS.
