9
Installing the Motherboard
Jumper Settings
Checking Jumper Settings

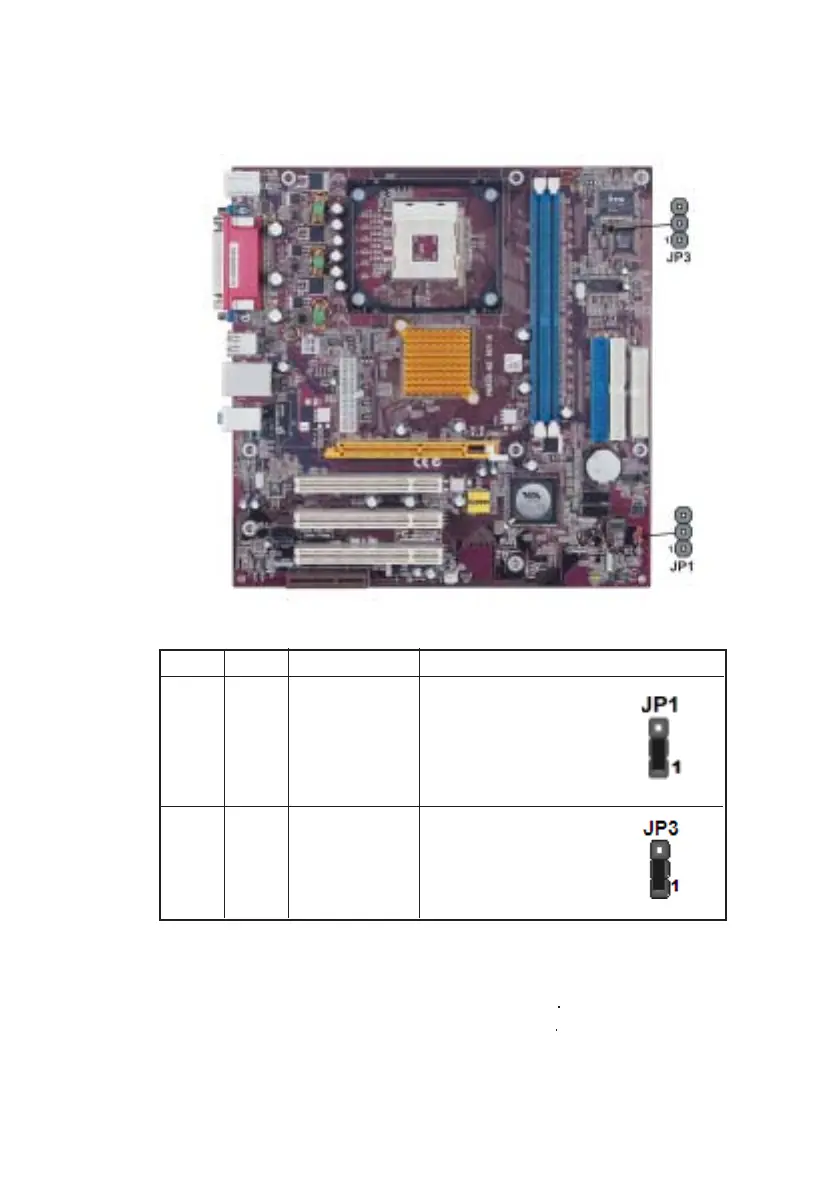

The following illustration shows the location of the motherboard jumpers. Pin 1 is labeled.
Jumper
T
ype
Description
Setting (default)
JP1
3-pin
CLEAR CMOS
1-2: NORMAL
2-3: CLEAR
Before clearing the CMOS,
make sure to turn the sys-
tem off.
3-pin
JP3
BIOS PROTECT
1-2: Disable
2-3: Enable
12
14
Table of Contents
Default Chapter
3
Table of Contents
3
Chapter 1 Introducing the Motherboard
5
Introduction
5
Features
6
Motherboard Components
8
Chapter 2 Installing the Motherboard
11
Safety Precautions
11
Choosing a Computer Case
11
Installing the Motherboard in a Case
11
Checking Jumper Settings
12
Setting Jumpers
12
Checking Jumper Settings
13
Jumper Settings
13
Connecting Case Components
14
Front Panel Connector
15
Installing Hardware
16
Installing the Processor
16
Installing Memory Modules
17
Installing a Hard Disk Drive/CD-ROM/SATA Hard Drive
20
Installing a Floppy Diskette Drive
22
Installing Add-On Cards
22
Connecting Optional Devices
24
Connecting I/O Devices
27
Chapter 3 Using BIOS
29
About the Setup Utility
29
The Standard Configuration
29
Entering the Setup Utility
29
Updating the BIOS
31
Using BIOS
31
Standard CMOS Features
32
Advanced BIOS Features
34
Advanced Chipset Features
36
Integrated Peripherals
39
Power Management Setup
43
PNP/PCI Configurations
46
PC Health Status
47
Frequency/Voltage Control
47
Load Fail-Safe Defaults
49
Load Optimized Defaults
49
Set Supervisor/User Password
49
Save & Exit Setup Option
50
Exit Without Saving
50
Chapter 4 Using the Motherboard Software
51
About the Software CD-ROM
51
Auto-Installing under Windows 98/ME/2000/XP
51
Running Setup
52
Manual Installation
54
Utility Software Reference
54
Chapter 5 VIA VT8237 SATA RAID Setup Guide
55
VIA RAID Configurations
55
Installing RAID Software & Drives
62
Using VIA RAID Tool
64
