17
Installing the Motherboard
Connecting I/O Devices

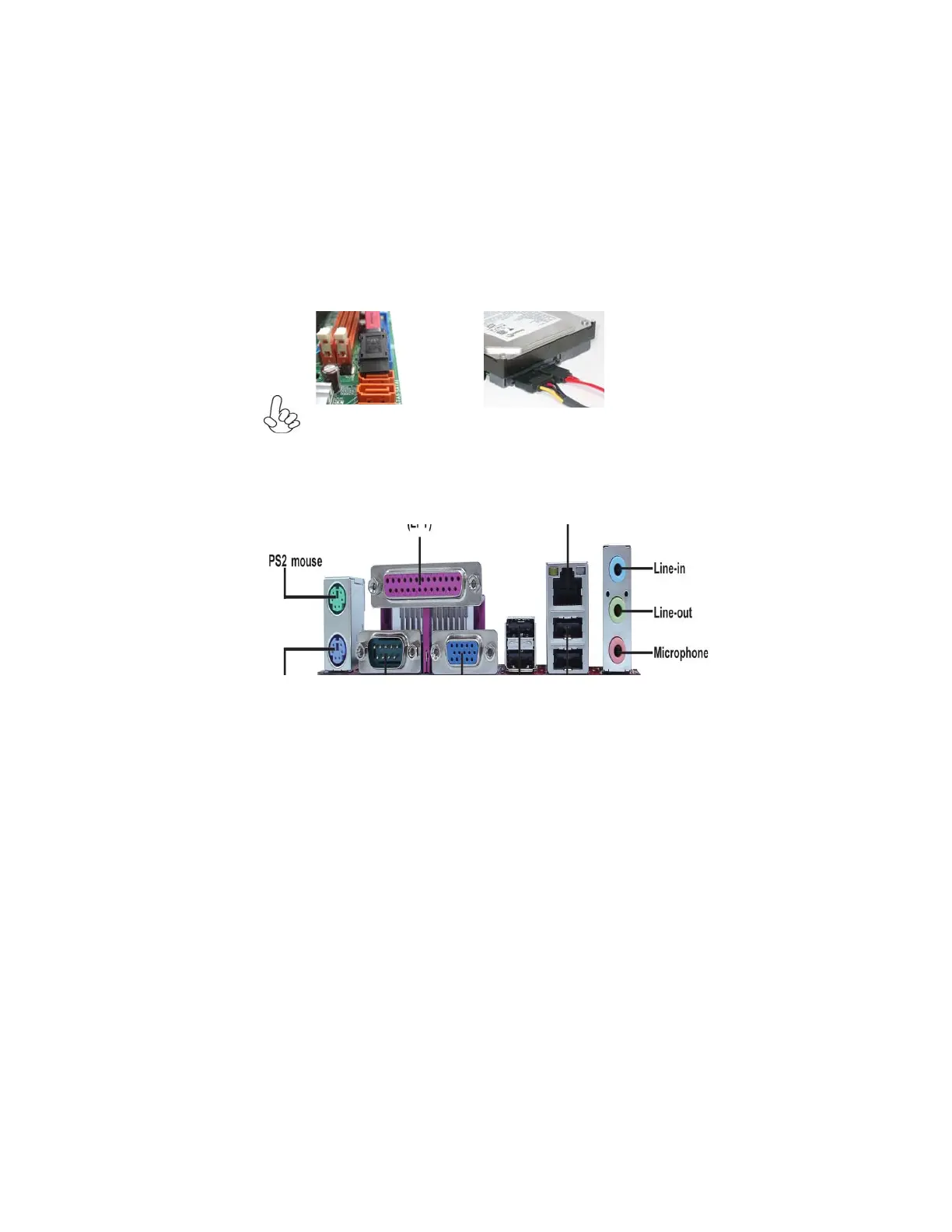

The backplane of the motherboard has the following I/O ports:
PS2 Mouse Use the upper PS/2 port to connect a PS/2 pointing device.
PS2 Keyboard Use the lower PS/2 port to connect a PS/2 keyboard.
Parallel Port (LPT)
Serial Port
VGA Port Connect your monitor to the VGA port.
USB Ports Use the USB ports to connect USB devices.
LAN Port
Connect an RJ-45 jack to the LAN port to connect your
computer to the Network.
Use the three audio ports to connect audio devices. The
first jack is for stereo line-in signal. The second jack is for
stereo line-out signal. The third jack is for microphone.
Use LPT to connect printers or other parallel communica-
tions devices.
Use the COM port to connect serial devices such as mouse
or fax/modems.(COM)
Audio Ports
Refer to the illustration below for proper installation:
This motherboard supports the “Hot-Plug” function.
1 Attach either cable end to the connector on the motherboard.
2 Attach the other cable end to the SATA hard drive.
3 Attach the SATA power cable to the SATA hard drive and connect the
other end to the power supply.
