18
Installing the Motherboard
Connecting Case Components

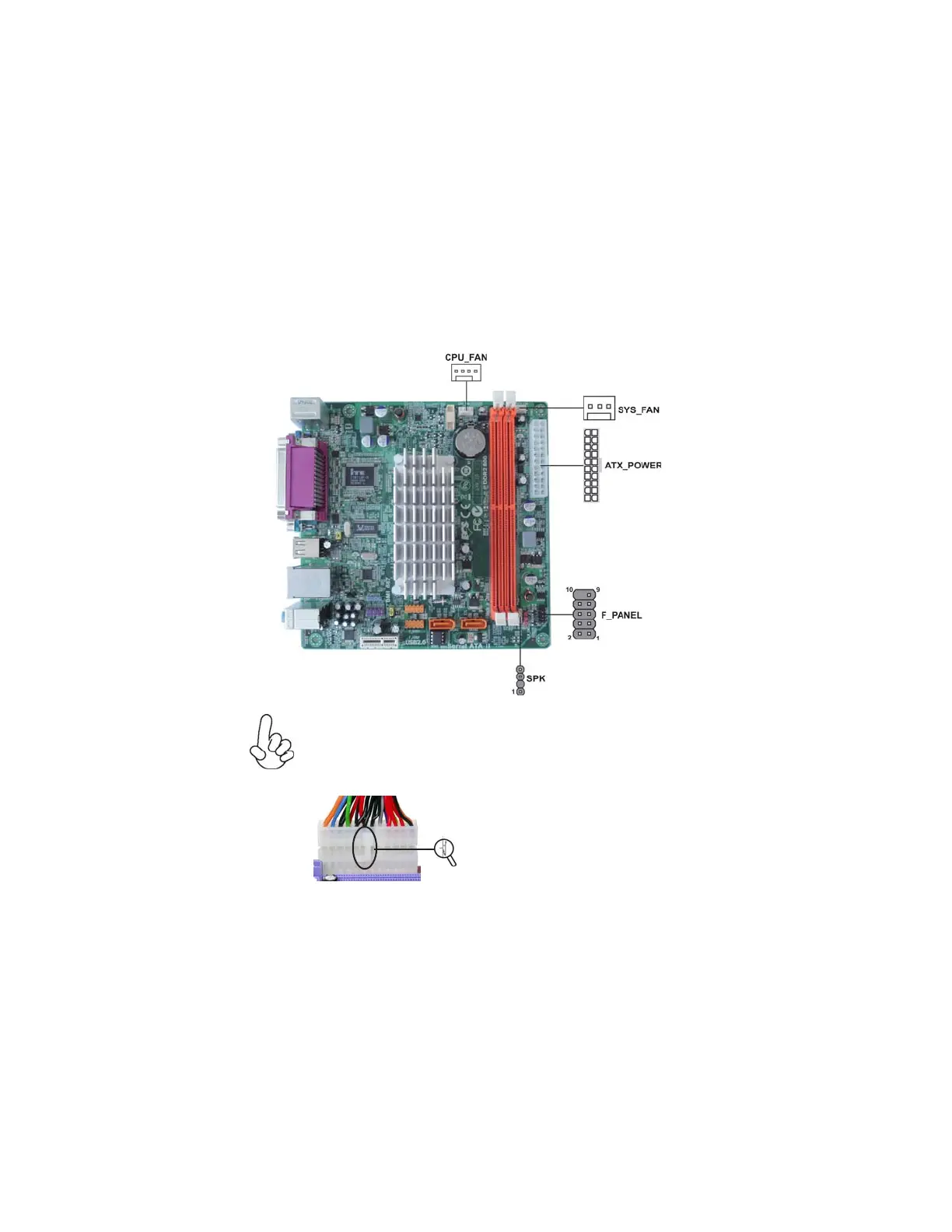

After you have installed the motherboard into a case, you can begin connecting the
motherboard components. Refer to the following:
2 Connect the case switches and indicator LEDs to the F_PANEL.
3 Connect the standard power supply connector to ATX_POWER.
4 Connect the case speaker cable to SPK.
The ATX 24-pin connector allows you to connect to ATX v2.x power
supply.
With ATX v2.x power supply, users please
note that when installing 24-pin power
cable, the latches of power cable and the
ATX match perfectly.
Connecting 24-pin power cable
24-pin power cable
