Chapter 2
15
Z97-MACHINE USER MANUAL

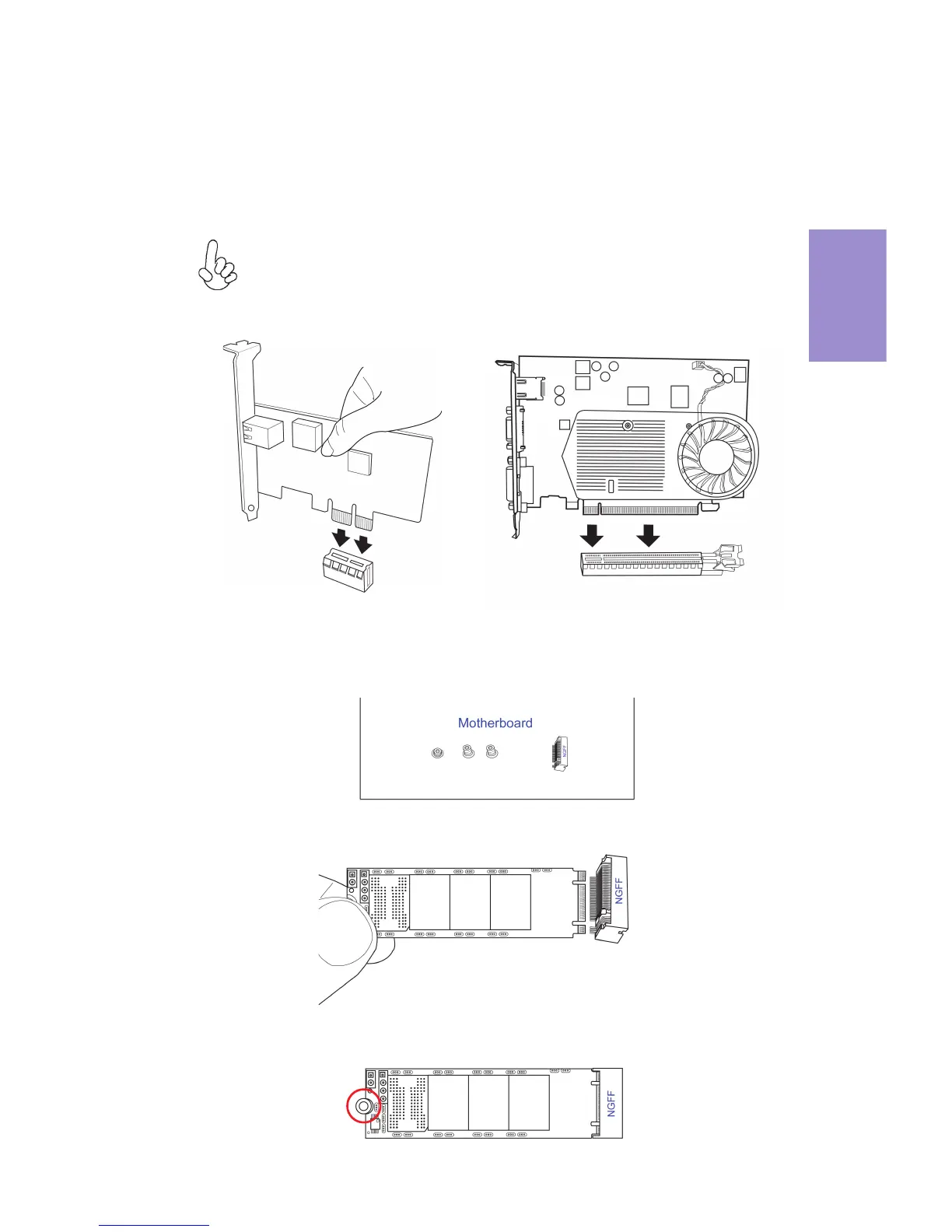

Install the VGA Card in the PCIEX16 slot
1 Remove a blanking plate from the system case corresponding to the slot
you are going to use.
2 Install the edge connector of the add-on card into the expansion slot.
Ensure that the edge connector is correctly seated in the slot.
3 Secure the metal bracket of the card to the system case with a screw.
For some add-on cards, for example graphics adapters and network
adapters, you have to install drivers and software before you can begin using
the add-on card.
Follow these instructions to install an add-on card:
Please refer the following illustrations to install the add-on card:
Install the LAN Card in the PCIE slot
Please refer the following steps to install the M.2 SSD card:
1 Demount the screw not used according to the length of your M.2 SSD card.
2 Insert the M.2 SSD card into NGFF slot in the fool-proof way.
3 Lock the screw as the following picture shows to make sure the M.2 SSD
card is installed in place.
