This page enables you to set the clock speed and system bus for your system. The
clock speed and system bus are determined by the kind of processor you have
installed in your system.
M.I.B. X (MB Intelligent BIOS X) Menu
 CPU OverClocking Configuration

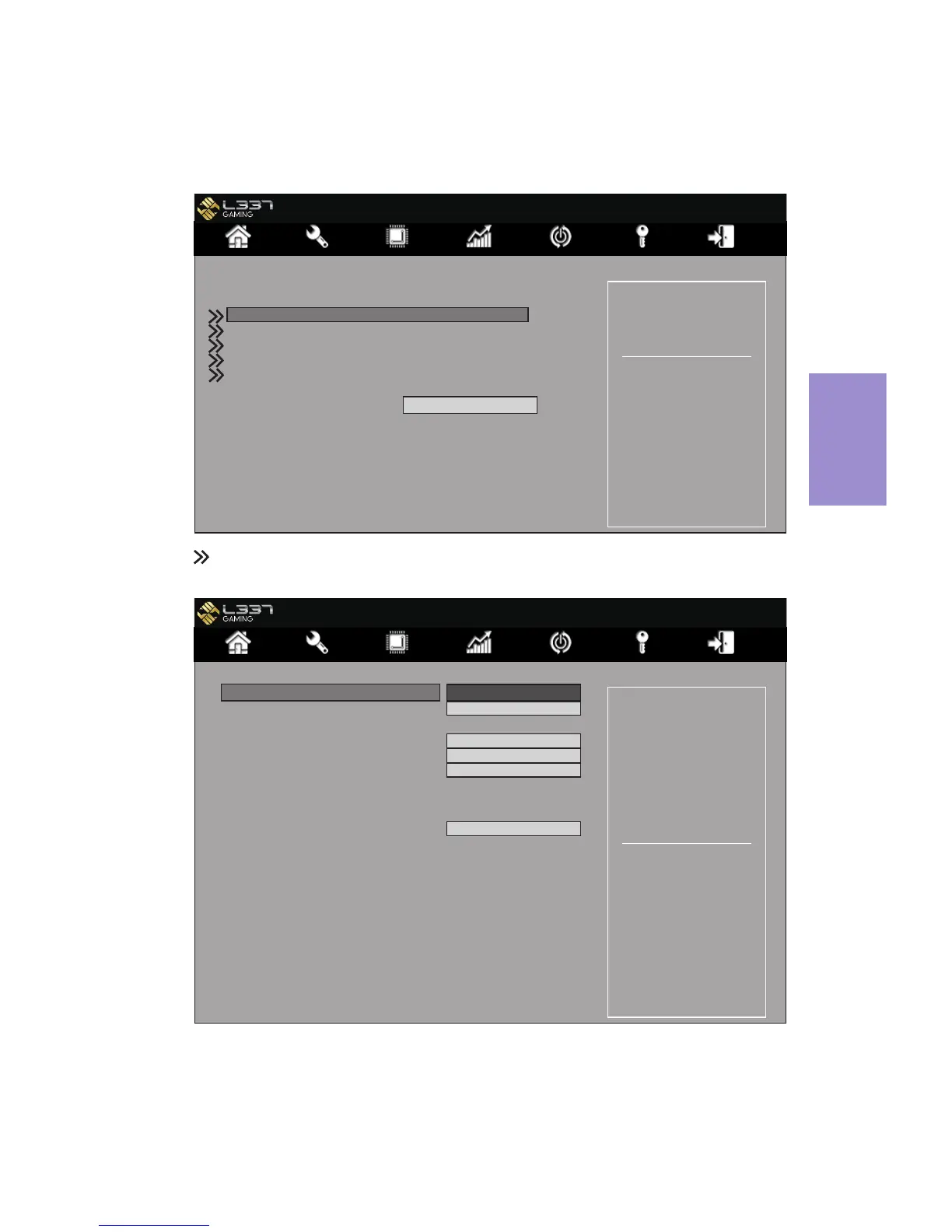

Scroll to this item to view the following screen:
Main Advanced Chipset M.I.B. X Security Boot Exit
CPU OverClocking
Configuration
M.I.B. X (MB Intelligent BIOS X)
CPU OverClocking Configuration
Memory Configuration
North Bridge Configuration
Over Voltage Configuration
Profile Configuration
Spread Spectrum
Auto
Intel(R) Celeron(R) CPU G1840 @ 2.80GHz
Processor Speed 2800 MHz
Memory Frequency 1333 MHz
Total Memory 2048 MB(DDR3 )
Main Advanced Chipset M.I.B. X Security Boot Exit
Non Turbo Ratio Override
Package Current Lock (Disabled)
This item allows you to enable or disable the package current lock.
CPU Ratio (28)
This item allows you to control non turbo CPU ratio.
CPU Ratio 28
Package Current Lock Disabled
IA Core Current Maximum
Enhanced Intel SpeedStep Technology Enabled
Boot Performance mode Max Non-Turbo Perfor...
Disable OverClocking Lock Enabled
ICC clock setting
Host Clock Override(1/100 MHz) 10000
+/- : Change Opt.
Enter/Dbl Click : Select


: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
+/- : Change Opt.
Enter/Dbl Click : Select


: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
