ECTIVE CSI34 User Manual

[
ECTIVE
®
SINUS/SINE INVERTER – CSI-/SSI-SERIES
]
38
⚠ Caution!
The inverter should not be used in vehicles, in which the +pole is connected to the
chassis.
⚠ Caution!
Please mind the input voltage!
The inverter should only be connected to voltage sources which correspond to follow-
ing provisions. 12 V=12 V, 24 V= 24 V
If connected to a higher voltage source the fuse can immediately blow and destroy the
inverter.
Explanation of the inverter
Illustrations 1 to 6 show the most important external components and connections.
☝ Please note!
The USB port is not used for 48V models.

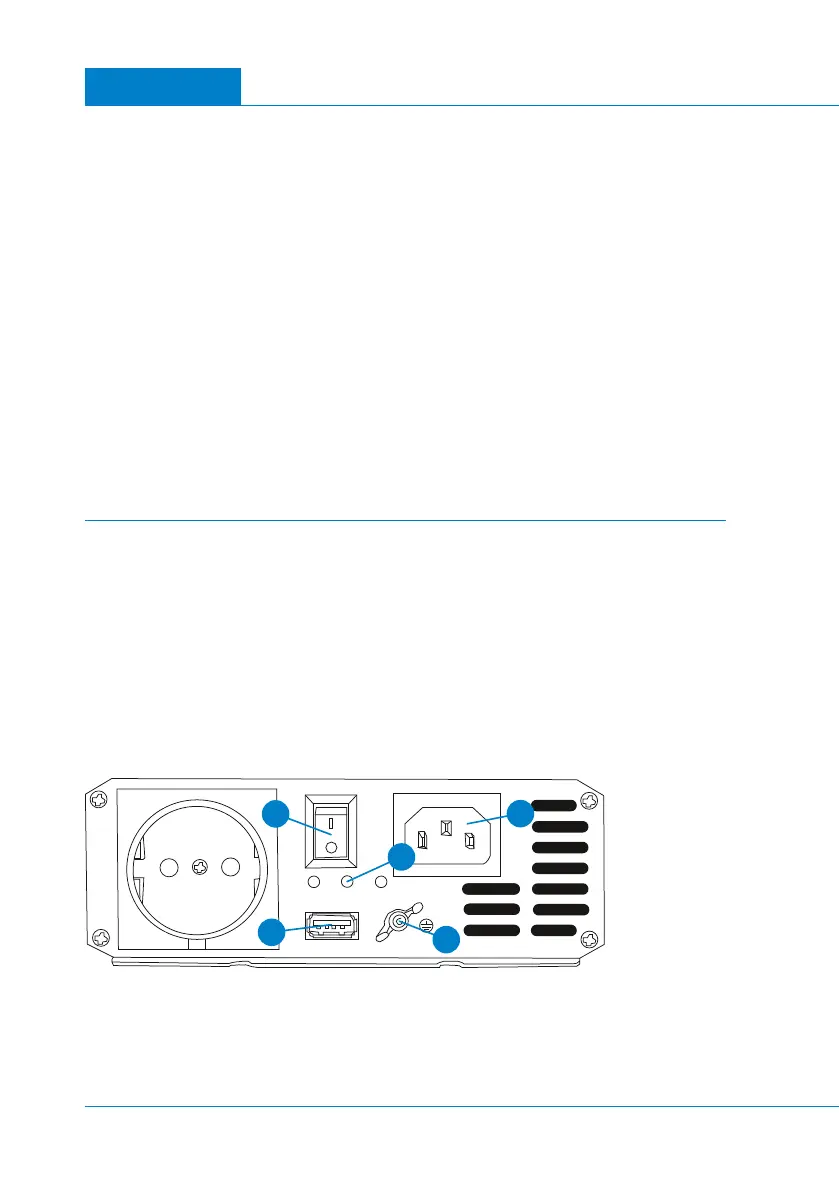

Front view: Illustration 1
CSI30-series
2
1
4
5
3
max. 15 A
1. on/off button
2. LED “Error”
3. USB Port
4. protective earthing
5. shore power
connected

ECTIVE CSI34 Specifications

General

Brand	ECTIVE
Model	CSI34
Category	Inverter
Language	English
