SINUS/SINE INVERTER – CSI-/SSI-SERIES
]
39

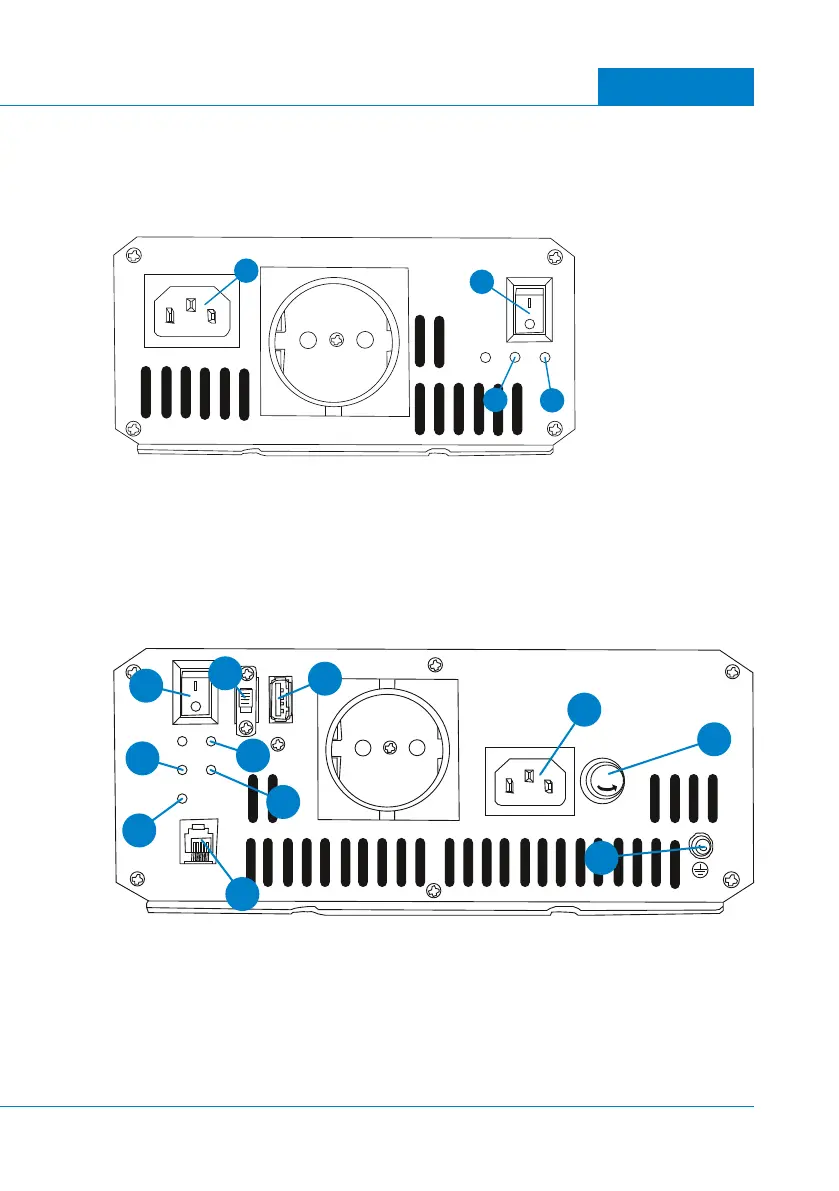

Front view: Illustration 2
CSI 50- to 100-series
2
1
4
3
max. 15 A
1. shore power
connection
2. on/off button
3. LED “Error”
4. charging via shore
power
Front view: Illtustration 3
CSI 150- to 250-series
FUSE
9
8
4
2
3
6
5
7
1
10
11
max. 15 A
1. on/off button
2. switch for ECO-mode
3. USB port
4. LED “Error”
5. shore power
connected
6. bypass function “on”
7. remote control
connection
8. shore power
connection
9. shore power fuse
10. protective earthing
11. charging via shore
power
