SINUS/SINE INVERTER – CSI-/SSI-SERIES
]
41

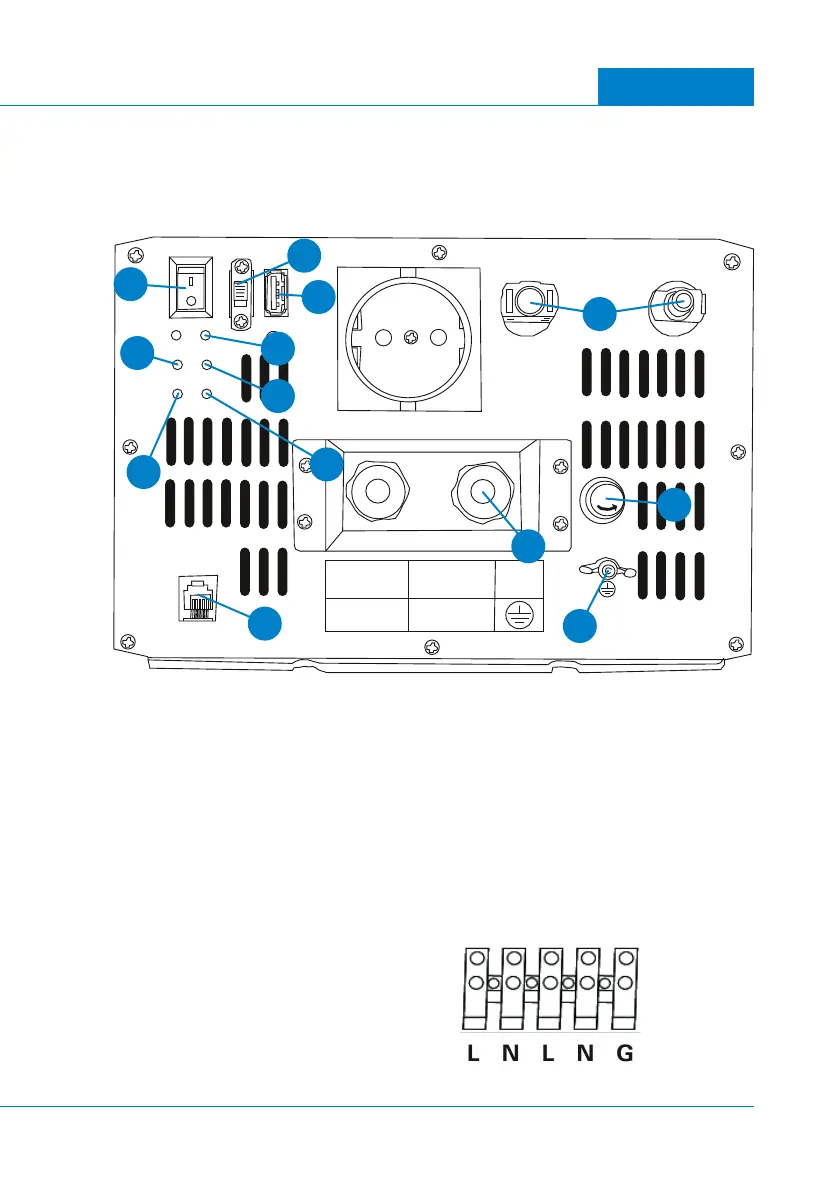

Front view: Illtustration 4
SSI100- to 300-series
FUSE
L
N
L
N
G
AC OUTPUT
AC INPUT
8
13
7
2
10
11
4
5
3
12
6
1
9
1. on/off button
2. LED “Error”
3. shore power
connected
4. bypass function “on”
5. charging via shore
power
6. remote control
connection
7. shore power
connection
8. spare
9. protective earthing
10. Switch UPS mode/
inverter mode
11. USB port
12. charging via solar
power
13. MC4 solar
connection plugs
Front view: Illustration 5
terminal for direct connection
(from CSI300- and SSI-series)
L N L N G
