SINUS/SINE INVERTER – CSI-/SSI-SERIES
]
43

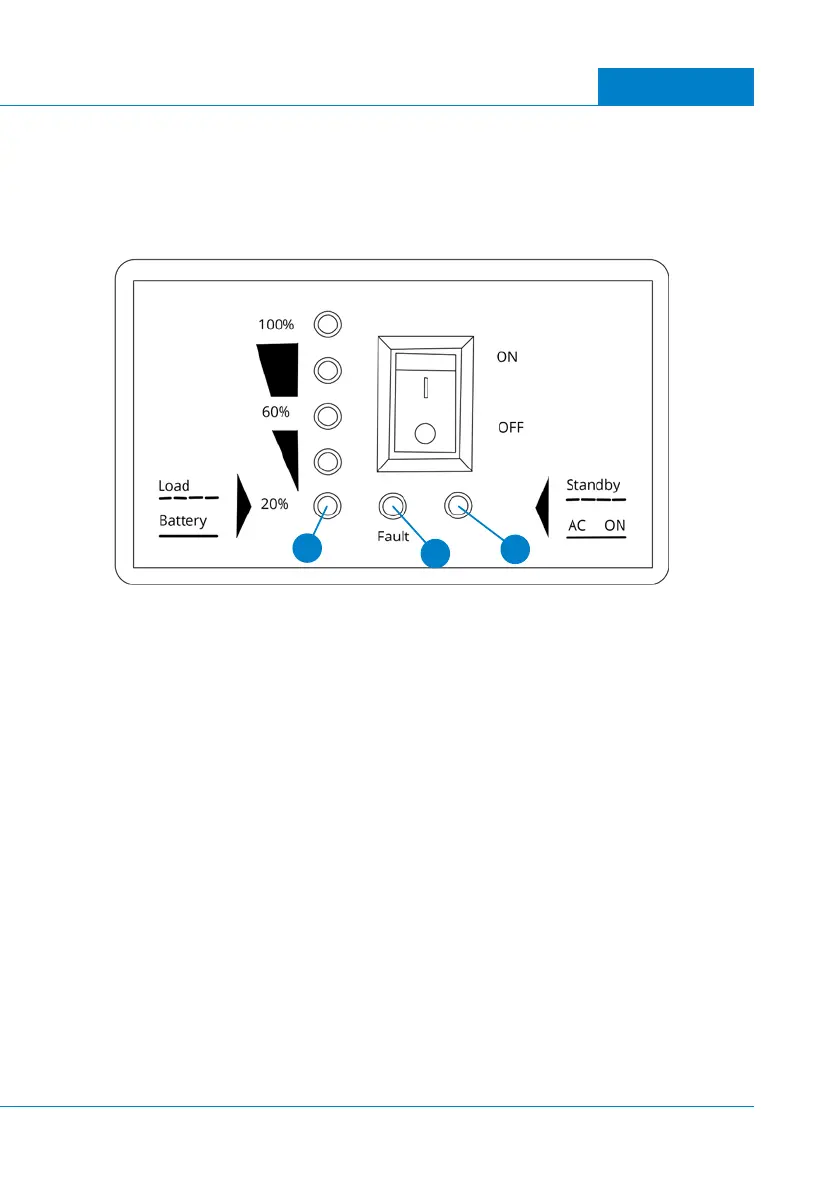

Front view: Illustration 7
Multi-function remote control K01
(available for the CSI50/100-series)
K01 REMOTE CONTROL
1
2
3
1. battery status and
load display
2. LED “Error” 3. device “on”
Status display:
• load indicator: flashes 1x/sec. Indicates momentary consumption of the connected
electronic devices in 20% steps.
• battery status: permanently illuminated. Indicates the remaining capacity of the
batteries in 20% steps.
• Changes between the battery status and the load indicator every 8 seconds .
Error LED:
• Flashes red when error occurs. (see table “self error correction”)
Status light:
• Stand-by display: Flashes when the device is in stand-by mode or if the power
consumption is <5%.
• AC on: permanently illuminated when the power is >5%.
