F Series Fetal & Maternal Monitor User Manual Maternal Monitoring Display
- 107 -
10.2 Maternal Monitoring Traces

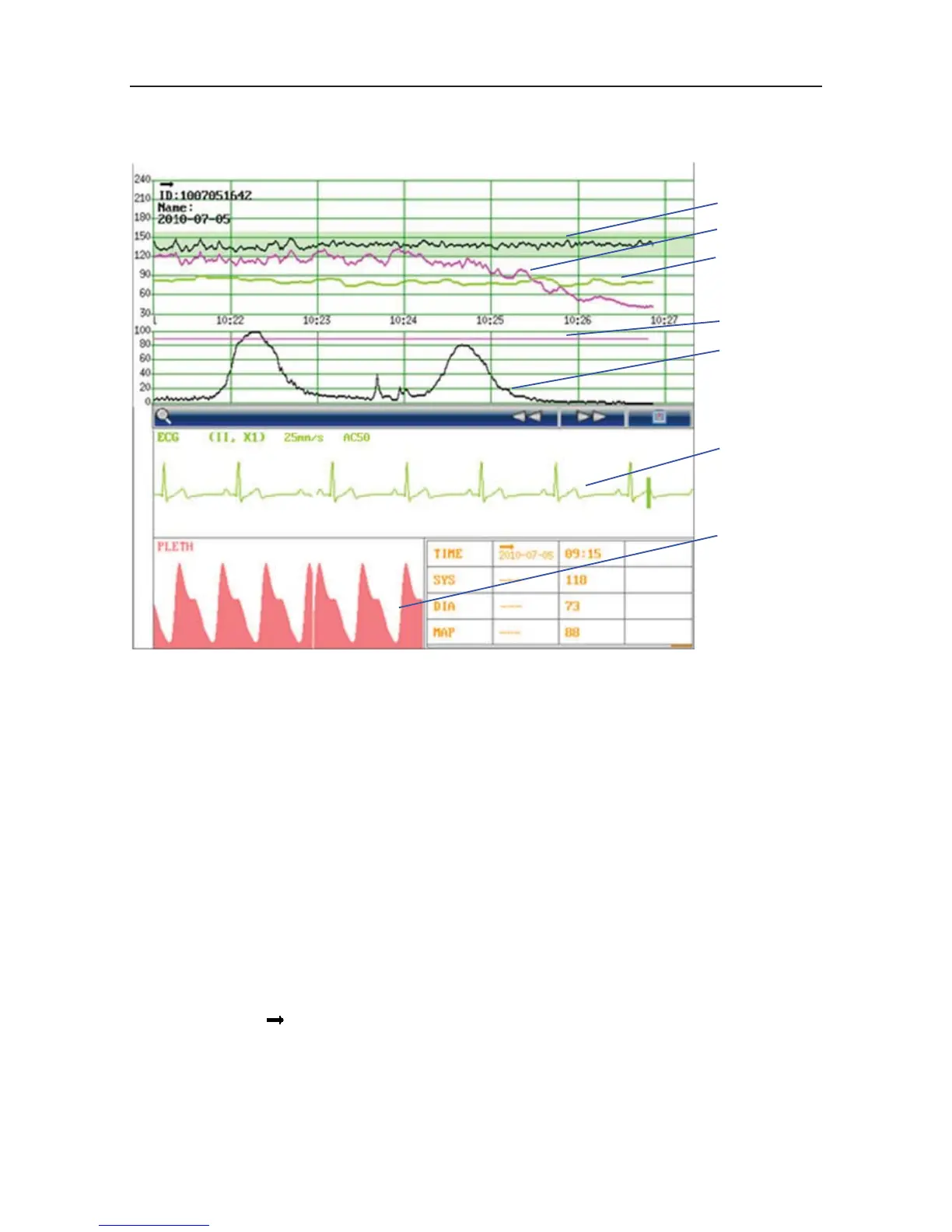

Figure 10-4 Maternal Monitoring Traces
1 FHR1 Trace 2 FHR2 Trace 3 HR Trace 4 AFM Trace
5 TOCO Trace 6 ECG Trace 7 SpO
2
Waveform
F6 Express and F9 Express display both maternal monitoring traces and fetal monitoring traces
on the same screen. The maternal monitoring traces include ECG waveform and SpO
2
waveform.
The fetal monitoring traces are the same as traces of F6/F9, refer to 8.1 Fetal Monitoring Traces
for more information.
10.3 Maternal Vital Sign List
The maternal vital sign list keeps records of the recent maternal vital signs and the measuring
time. A start mark
and the date appear when a new monitoring begins.
In maternal-fetal display mode, the list contains the time, SYS and DIA numerics of every
measurement.
1
2
3
4
5
6
7
To Next Page
