F Series Fetal & Maternal Monitor User Manual Signal Input/Output Connector
- 151 -

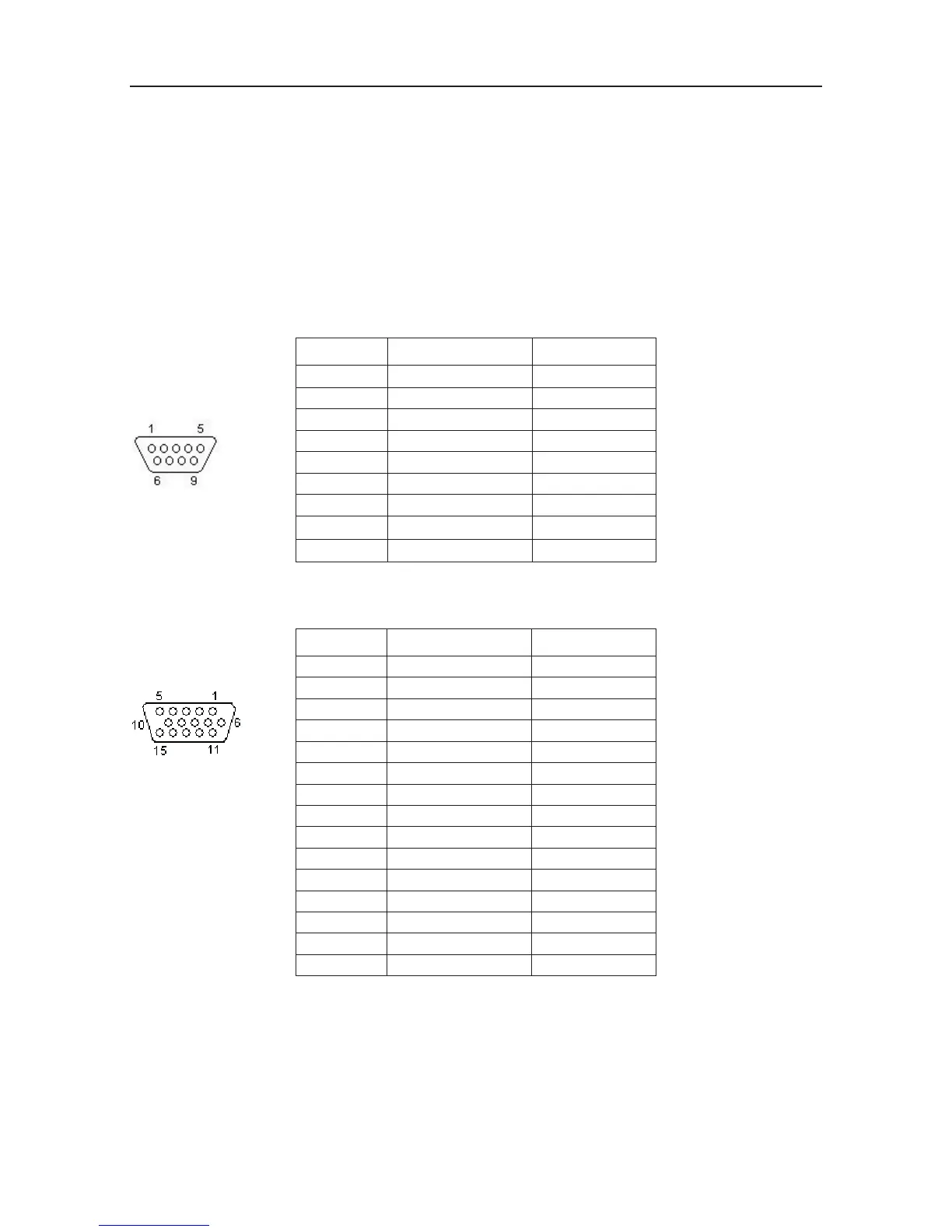

Appendix 2 Signal Input/Output Connector
Accessory equipment connected to these interfaces must be certified according to the respective
IEC/EN standards (e.g. IEC/EN 60950 for data processing equipment and IEC/EN 60601-1 for
medical equipment). Furthermore all configurations shall comply with the valid version of the
system standard IEC/EN 60601-1-1. Anybody who connects additional equipment to the signal
input connector or signal output connector to configure a medical system must ensure that the
system complies with the requirements of the valid version of the system standard IEC/EN
60601-1-1. If in doubt, contact our technical service department or your local distributor.
DB9 Interface
D-Sub Interface
Pin Signal Input/Output
1 +5V Output
2 Rx Input
3 Tx Output
4 485EN Input
5 0V Ref.
6 TA Output
7 TB Output
8 RA Input
9 RB Input
Pin Signal Input/Output
1 US2 Input
2 ISOCNS_RXD Input
3 ISOCNS_TXD Output
4 485EN Input
5 0V Ref.
6 TA Output
7 TB Output
8 RA Input
9 RB Input
10 DECG_SIGNAL Input
11 US1 Input
12 +5V Output
13 TOCO Input
14 DECG_GND
15 EN Input
