F
Series
Fet
al
&
Maternal
Monitor
User
Manual

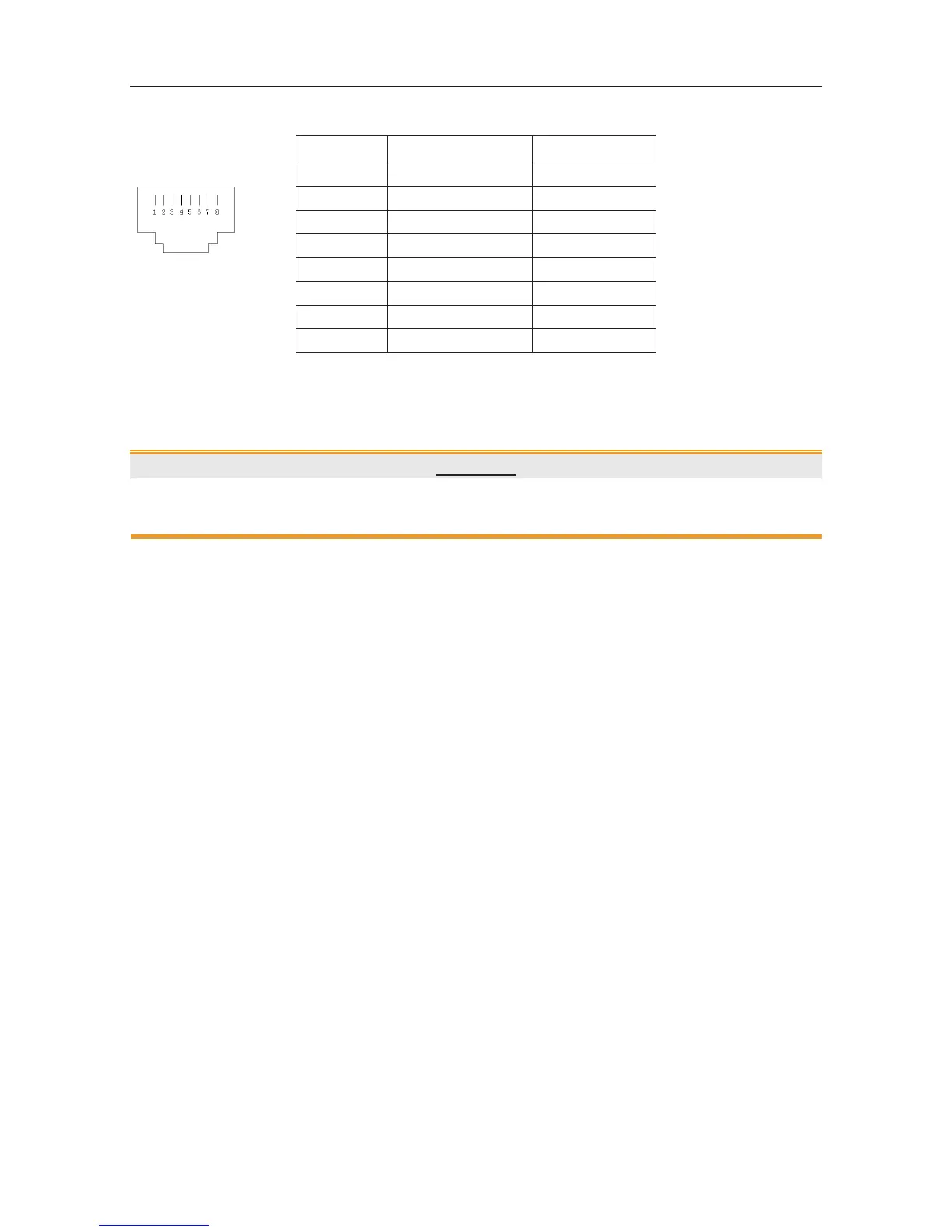

Signal
Input/Output
Connector
- 152 -
RJ45 Interface
CAUTION
Only the PC recommended by the manufacturer can be connected to the signal
input/output interface of the monitor
. Other equipment is forbidden.
Pin Signal
Input/Output
1 TD+
Output
2 TD-
Output
3 RD+
Input
4 Reserved
5 Reserved
6 RD-
Input
7 Reserved
8 Reserved
162
164
