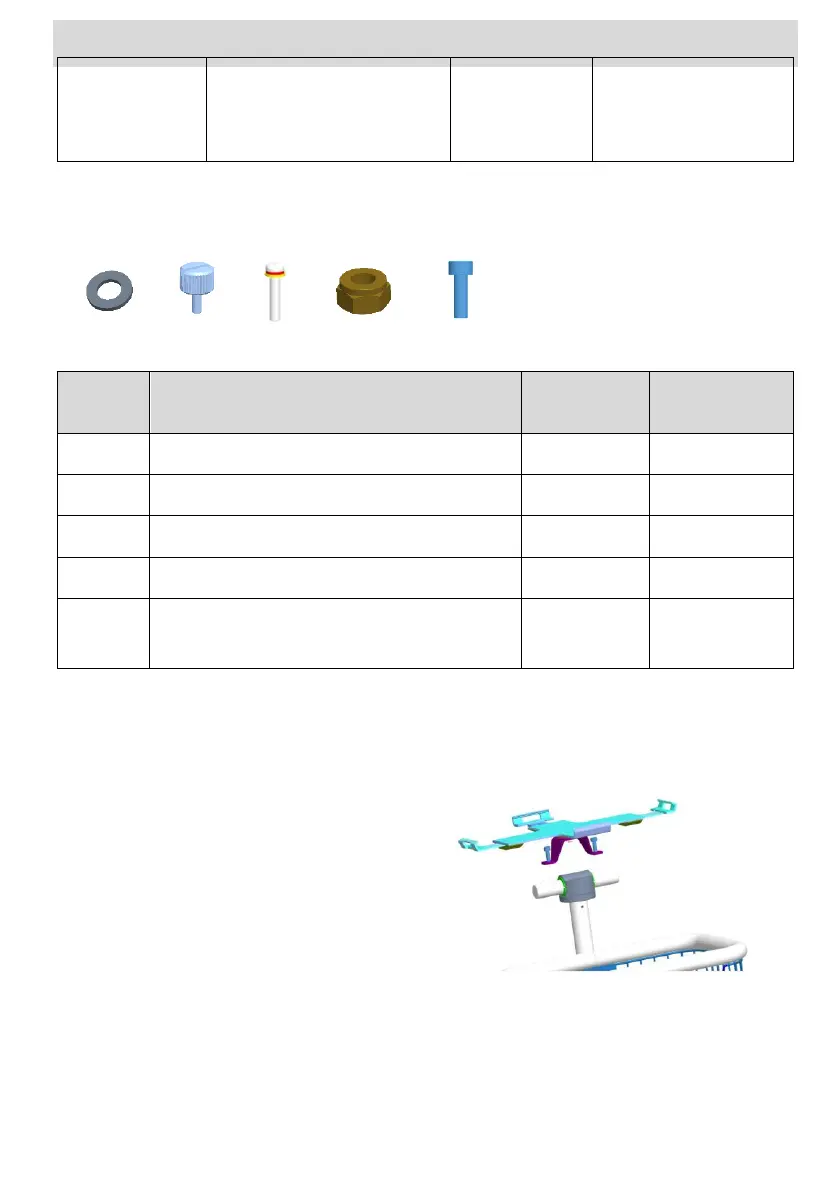

MT-201 Trolley Installation Guide
type of tablet
mounting bracket
and lead wire hose
bracket
Accessories
Q R S T U
No.
Name
Qty (pcs)
Spares
(pcs)
Q
Ф10 plain washer
2
-
R
Bracket fastener
2
-
S
M5×25 screw
2
2
T
M10 lock nut
2
-
U
M5×16 hexagon socket head cap
screw
4
2
NOTE: Spare parts are provided in the package. Refer to the above table
for the number of screws actually needed.
Fixing New Type of Tablet Mounting Bracket to the Trolley
Place the new type of tablet
mounting bracket on top of the
stand post assembly. Align the
bracket holes with the assembly
holes and fix
them with two M5×16 screws.
Place a tablet (about the size of
10.1 to 12.3 inches) onto the
mounting bracket. Use the 4mm
hexagon spanner to fasten the
screws.
See the right figure for assembly.
