MT-201 Trolley Installation Guide

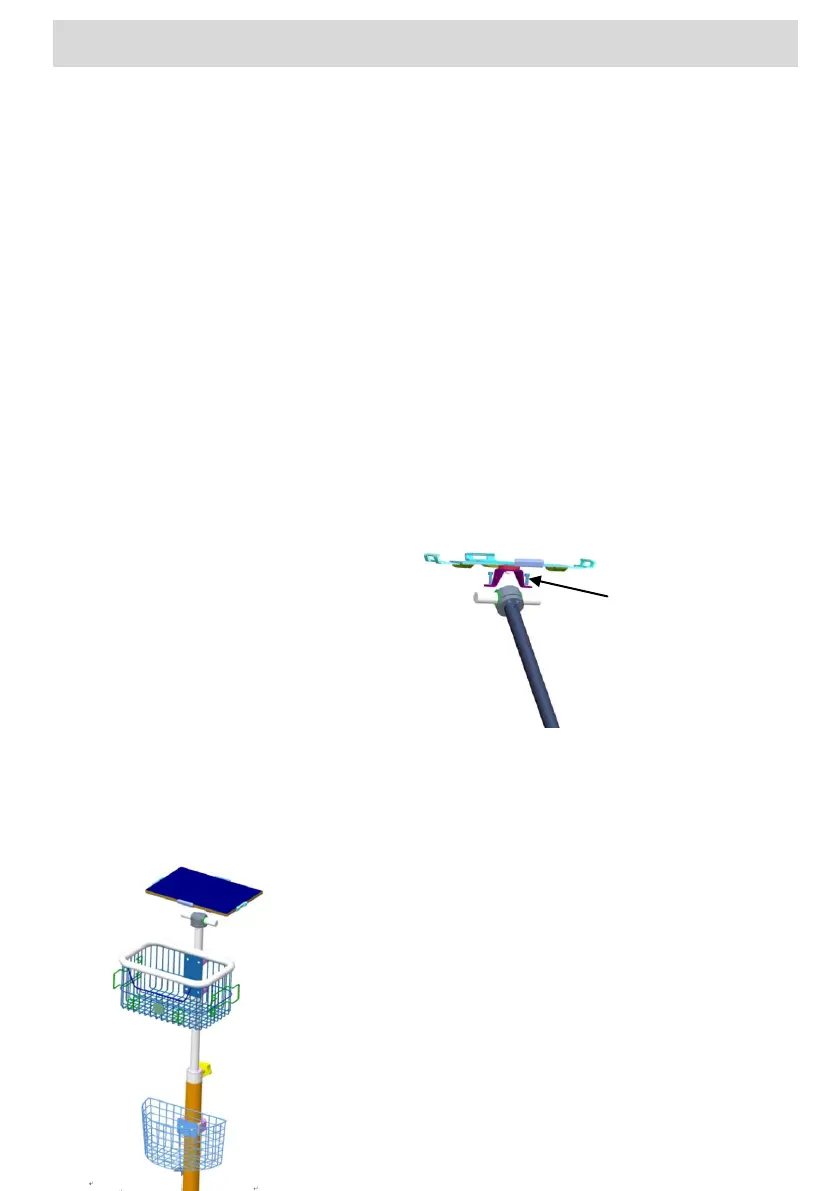

To assemble new type of tablet
mounting bracket assembly:
1. Fasten the front and back
locking flanges to the stand post
with two M5×25 screws. The
flanges are above the place where
the square basket fixed.
2. Fix a bracket link board onto
the flanges. For operation steps,
see steps 2 and 3 of Assembling
Trolley.
3. Align the new type of tablet
mounting bracket with the new
stand post assembly by screw
holes. Fasten the bracket to the
stand post assembly with two
M5×16 screws.
4. Rotate a bracket pedestal into
the hole of the bracket link board,
put a Ф10 plain washer to the
flange of the pedestal, and then
tighten them with an M10 lock nut.
5. Rotate the stand post assembly
into the hole of the bracket
pedestal and fasten them with a
M5×16 srews
sscrews
