-15-
MT-201 Trolley Installation Guide
bracket fastener.

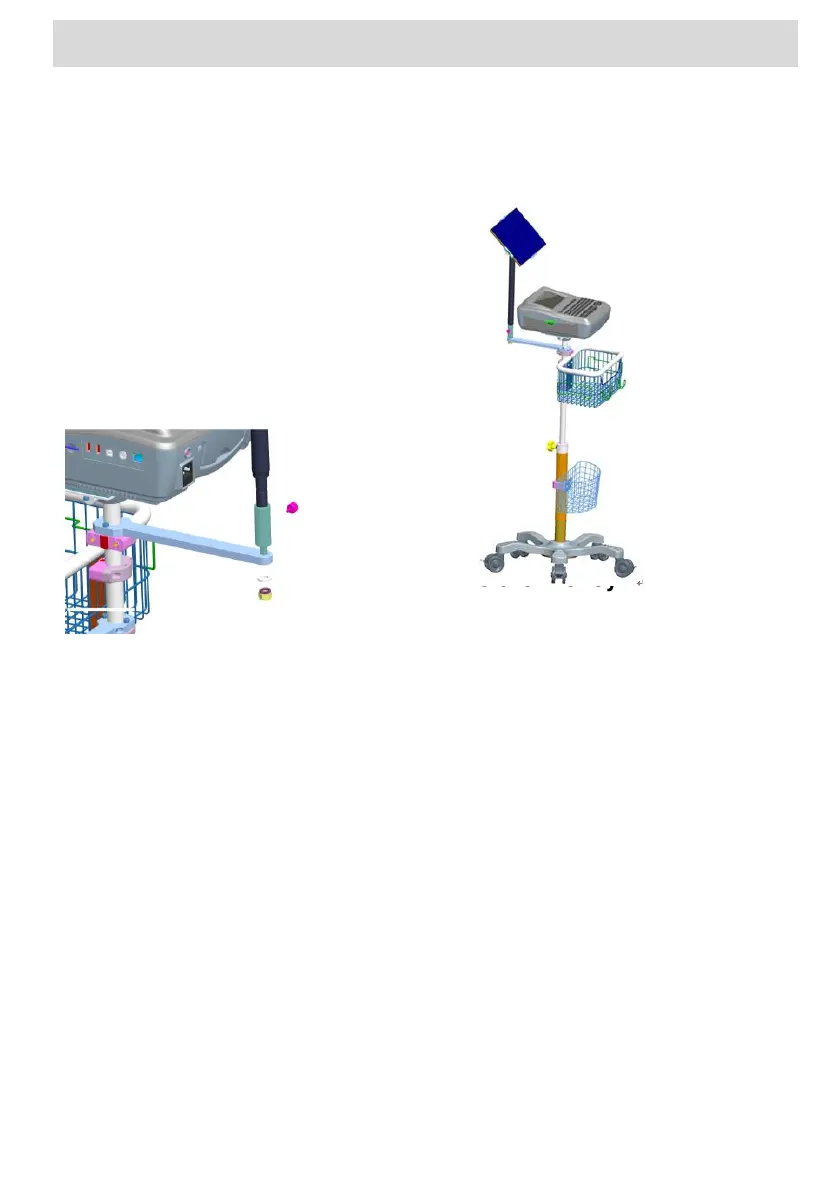

6. Place a tablet (about the size of
10.1 to 12.3 inches) onto the new
type of mounting bracket. Use the
4mm hexagon spanner to fasten
the screws. See the right figure for
completed assembly.
Fixing the Lead Wire Hose Bracket to the Trolley
The assmbly of lead wire hose bracket is the same as that of the lead wire
bracket. For operations, see the steps 2, 3, 9, and 10 of Assembling Trolley.
