Quick Start Guide
– 3 –

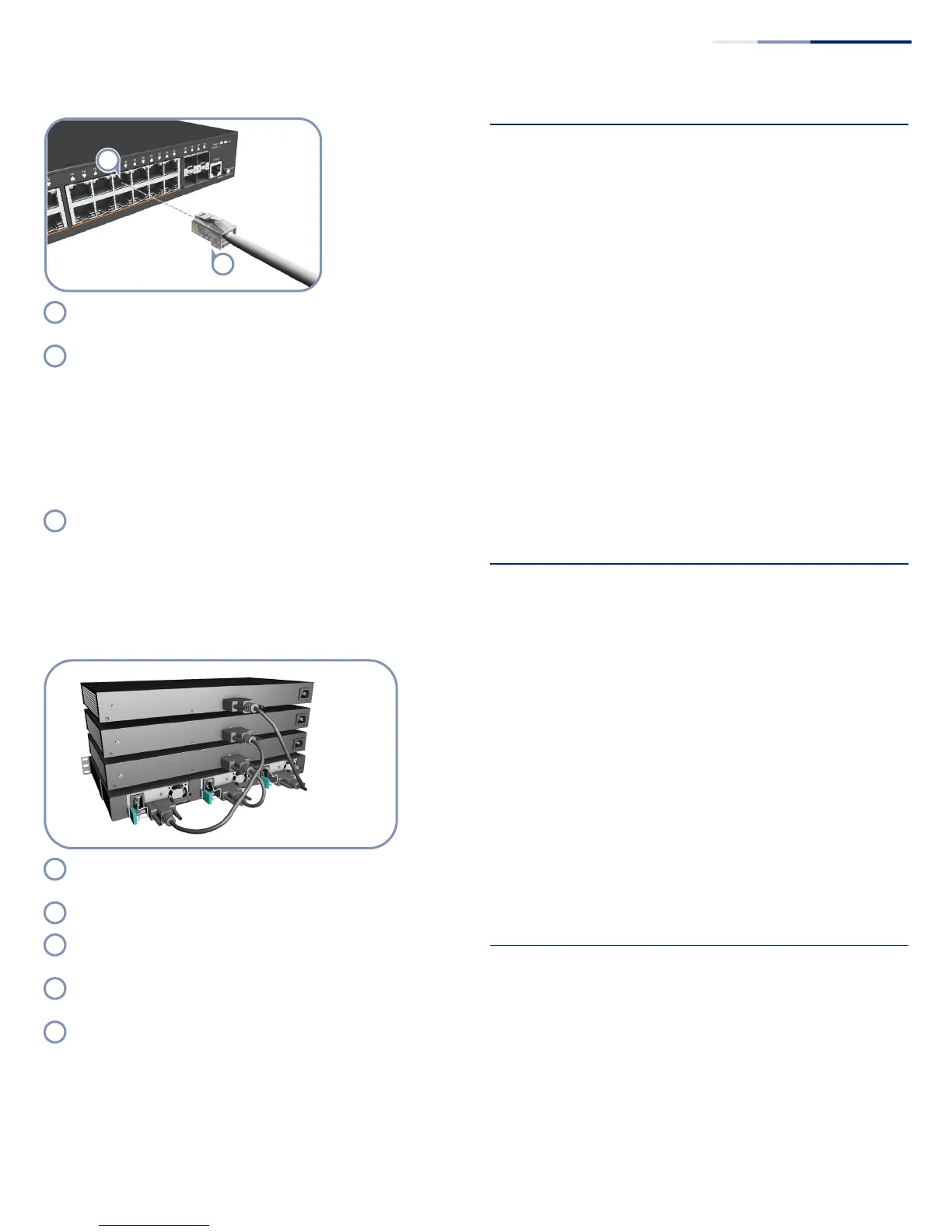

7. Connect Network Cables
For RJ-45 ports, connect 100-ohm Category 5, 5e or better
twisted-pair cable.
For the SFP/SFP+ slots, first install SFP/SFP+ transceivers and
then connect fiber optic cabling to the transceiver ports. The
following transceivers are supported:
◆
1000BASE-SX (ET4201-SX)
◆
1000BASE-LX (ET4201-LX)
◆
1000BASE-ZX (ET4201-ZX)
◆
1000BASE-LHX (ET4201-LHX)
◆
10GBASE-SR (ET5402-SR)
◆
10GBASE-LR (ET5402-LR)
◆
10GBASE-ER (ET5402-ER)
As connections are made, check the port status LEDs to be
sure the links are valid. Press the Mode button to change
from Ethernet to PoE status:
◆
On/Blinking Green — Port has a valid link. Blinking
indicates network activity.
◆
On Amber — Port is supplying PoE power.
8. Hardware Stacking Connection (Optional)
Install the ECS2100-28PP in a standard 19-inch rack and
power on.
Install the PS3000 chassis in a standard 19-inch rack.
Install one or more EPS460W PSUs in the chassis. The chassis
can support up to three EPS460W PSUs.
Use the PSU cable (provided) to connect each EPS460W PSU
to an ECS2100-28PP switch.
Connect the AC power cord to power on the EPS460W PSU,
and check the LEDs on the PSUs to ensure proper operation.
The Link LEDs for connected switches should light up.
Hardware Specifications
Switch Chassis
Size (W x D x H) ECS2100-10T: 19.64 x 11.71 x 3.66 cm (7.73 x 4.61
x 1.44 in.)
ECS2100-10P: 33.0 x 20.4 x 4.26 cm (12.99 x 8.03
x 1.67 in.)
ECS2100-10PE: 24.0 x 15.5 x 2.65 cm (9.44 x 6.10
x 1.04 in.)
ECS2100-28T/28P/28PP/52T, ECS2110-26T: 44 x
22 x 4.4 cm (17.32 x 8.66 x 1.73 in. )
Weight ECS2100-10T: 816 g (1.8 lb)
ECS2100-10P: 2.4 kg (5.34 lb)
ECS2100-10PE: 973 g (2.15 lb)
ECS2100-28T: 2.2 kg (4.86 lb)
ECS2100-28P: 2.8 kg (6.18 lb)
ECS2100-28PP: 3.1 kg (6.85 lb)
ECS2100-52T: 2.5 kg (5.5 lb)
ECS2110-26T 2.2 kg (4.85 lb)
Temperature Operating: 0 ° C to 50 ° C (32 ° F to 122 ° F)
Operating: 0 ° C to 45 ° C (32 ° F to 113 ° F,
ECS2100-28PP only)
Operating: 0 ° C to 40 ° C (32 ° F to 104 ° F,
ECS2100-10P and ECS2100-28PP with one
EPS460W only)
Storage: -40 ° C to 70 ° C (-40 ° F to 158 ° F)
Humidity Operating: 10% to 90% (non-condensing)
Power Specification
AC Input Power ECS2100-10T: AC 100-240 V, 50-60 Hz, 0.5 A
ECS2100-10P: AC 100-240 V, 50-60 Hz, 2.1 A
ECS2100-28T: AC 100-240 V, 50-60 Hz, 0.5 A
ECS2100-28P: AC 100-240 V, 50-60 Hz, 3.2 A
ECS2100-28PP: AC 100-240 V, 50-60 Hz, 5.8 A
ECS2100-52T: AC 100-240 V, 50/60 Hz, 1 A
ECS2110-26T: AC 100-240 V, 50/60 Hz, 1 A
AC-DC Power
Adapter
(ECS2100-10PE
only)
Input: AC 100-240 V, 50-60 Hz, 1 A
Output: 54 VDC, 1.67A
Total Power
Consumption
ECS2100-10T: 8 W
ECS2100-10P: 160 W
ECS2100-10PE: 80 W
ECS2100-28T: 20 W
ECS2100-28P: 260 W
ECS2100-28PP: 490 W
ECS2100-28PP+ one extended power supply:
950 W
ECS2100-52T: 40 W
ECS2110-26T: 20 W
Regulatory Compliances
Emissions CE Mark
◆
EN 55022, Class A
FCC Class A
BSMI Certificate
To Next Page
