Quick Start Guide
– 2 –
Caution:
The earth connection must not be removed
unless all supply connections have been disconnected.
Caution:
The device must be installed in a restricted-access
location. It should have a separate protective earthing
terminal on the chassis that must be permanently
connected to earth to adequately ground the chassis and
protect the operator from electrical hazards.
Attention:
Le raccordement à la terre ne doit pas être retiré
sauf si toutes les connexions d’alimentation ont été
débranchées.
Attention:
Le commutateur doit être installé dans un
emplacementà accès restreint. Il doit avoir une borne de
mise à la terre de protection séparée sur le châssis qui doit
être connectée en permanence à la terre pour mettre le
châssis à la terre et protéger l'opérateur contre les risques
électriques.

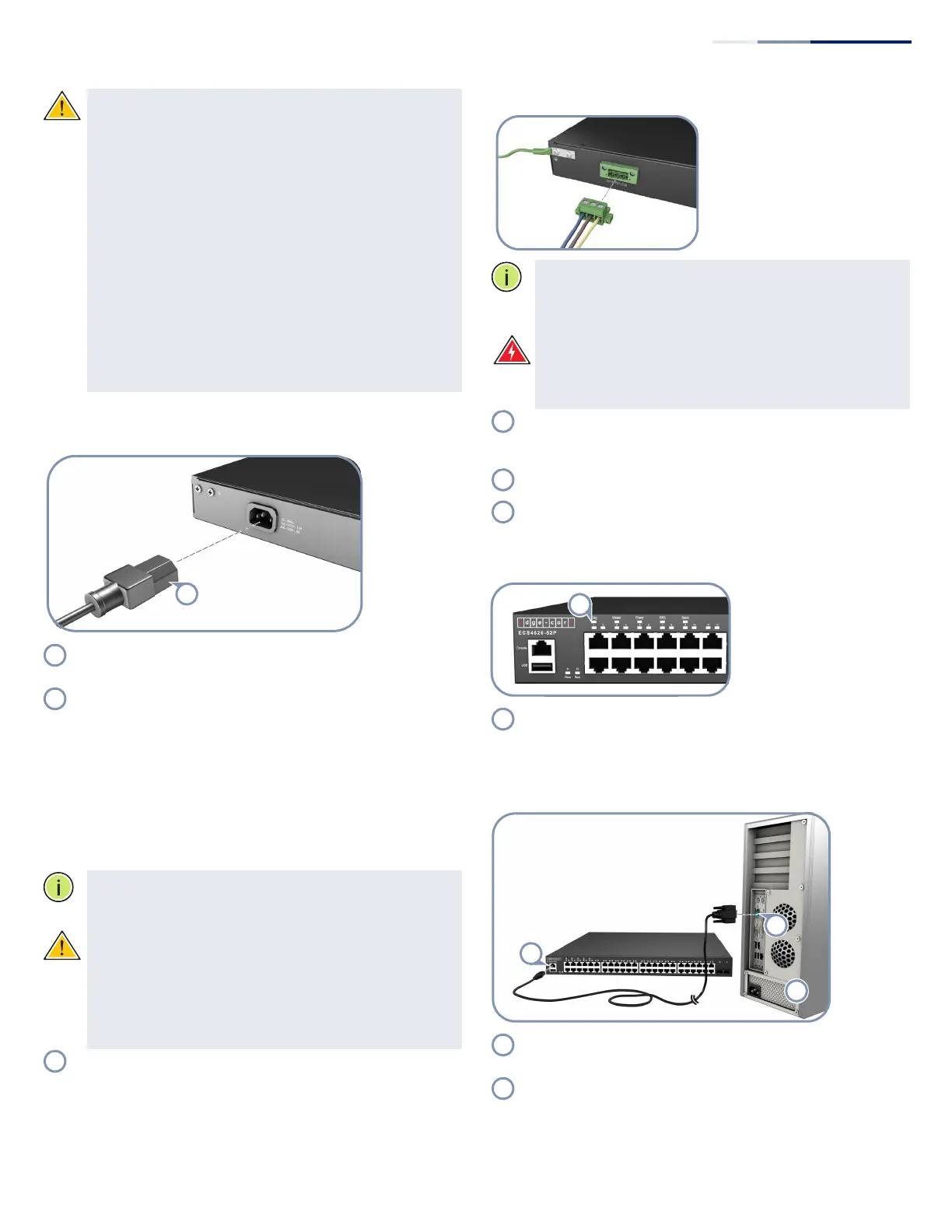

4. Connect Power
a. Connect AC Power
Plug one or two AC power cord into the socket on the rear of
the device.
Connect the other end of the power cord to an AC power
source. Verify that the external AC power requirements for
the device can be met as listed below:
ECS4620-28T: 100 to 240 V, 50-60 Hz, 1.5 A
ECS4620-28P: 100 to 240 V, 50-60 Hz, 10 A
ECS4620-28F: 100 to 240 V, 50-60 Hz, 2 A
ECS4620-52T: 100-240 VAC, 50-60 Hz, 2 A
ECS4620-52P: 50-60 Hz; 100-127 VAC, 12 A; 200-240 VAC, 6 A
ECS4620-28F-2AC: 100-240 VAC, 50-60 Hz, 2.5 A Per PS
ECS4620-52P-2AC: 100-240 VAC, 50-60 Hz, 12 A Max Per PS
Note:
For International use, you may need to change the AC
line cord. You must use a line cord set that has been
approved for the socket type in your country.
Caution:
Before connecting the device to AC power, the
grounding terminal screw, on the device rear panel, must be
permanently connected to earth.
Attention:
Avant de connecter le commutateur à
l'alimentation secteur, la vis de la borne de mise à la terre, sur
le panneau arrière du commutateur, doit être connectée à la
terre de façon permanente.
If you have purchased an optional Redundant Power Supply
for use with the ECS4620 series (except ECS4620-28F-2AC
and ECS4620-52P-2AC), connect it to the device and to an
AC power source now, following the instructions included
with the package.
b. Connect DC Power
Note:
Before wiring the DC plug or connecting power to the
device, ensure that power to the feed lines is turned off at
the supply circuit breaker or disconnected from the power
bus.
Warning:
This unit is intended to be supplied by a IEC/UL
listed DC power source.
Avertissement:
Cet appareil est destiné à être alimenté par
une source d'alimentation CC répertoriée CEI / UL.
The ECS4620-28T-DC or ECS4620-28F-DC device supports
the option of connecting an external 36 to 75 VDC power
source to its DC terminal block.
Connect the 36 VDC power feed wire to the DC plug “+” pin.
Connect the ground/return wire to the DC plug “-” pin.
5. Verify Device Operation
Verify basic device operation by checking the system LEDs.
When operating normally, the Power and Diag LEDs should
be on green.
6. Perform Initial Configuration
Connect a PC to the device console port using the included
console cable.
Configure the PC’s serial port: 115200 bps, 8 characters, no
parity, one stop bit, 8 data bits, and no flow control.
To Next Page
