Quick Start Guide
– 3 –
Log in to the CLI using default settings: Username “admin”
and password “admin.”
Note: For further information on device configuration, refer
to the Web Management Guide and CLI Reference Guide.

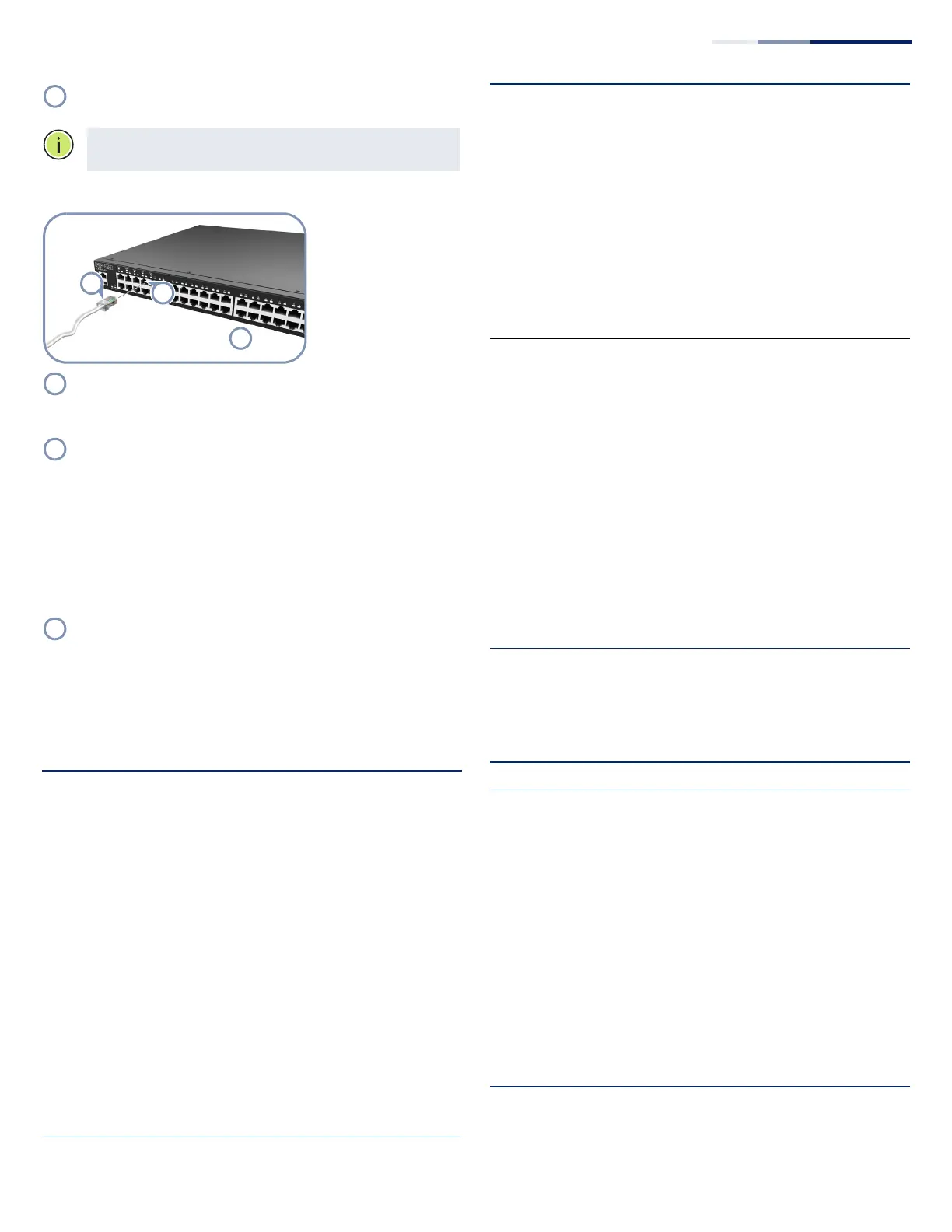

7. Connect Network Cables
For RJ-45 ports, connect 100-ohm Category 5, 5e or better
twisted-pair cable.
For the SFP/SFP+ slots, first install SFP/SFP+ transceivers and
then connect fiber optic cabling to the transceiver ports. The
following transceivers are supported:

1000BASE-SX (ET4202-SX)

1000BASE-LX (ET4202-LX)

1000BASE-EX (ET4202-ZX)

1000BASE-ZX (ET4202-EX)

10GBASE-SR (ET5402-SR)

10GBASE-LR (ET5402-LR)

10GBASE-ER (ET5402-ER)

10GBASE-ZR (ET5402-ZR)
As connections are made, check the port status LEDs to be
sure the links are valid. Press the Mode button to change
from Ethernet to PoE status:

On/Blinking Green — Port has a valid link. Blinking
indicates network activity.

On Amber — Port is supplying PoE power.
Hardware Specifications
Device Chassis
Size (W x D x H) ECS4620-28T / ECS4620-28T-DC / ECS4620-28P/
ECS4620-28F / ECS4620-28F-DC / ECS4620-28F-
2AC: 44.0 x 31.5 x 4.4 cm (17.3 x 12.4 x 1.7 in.)
ECS4620-52T / ECS4620-52P / ECS4620-52P-2AC:
44.0 x 39.1 x 4.4 cm (17.3 x 15.4 x 1.7 in.)
Weight ECS4620-28T: 3.7 kg (8.16 lb)
ECS4620-28T-DC: 3.7 kg (8.16 lb)
ECS4620-28P: 4.95 kg (10.91 lb)
ECS4620-28F: 3.8 kg (8.38 lb)
ECS4620-28F-DC: 3.8 kg (8.38 lb)
ECS4620-28F-2AC: 4.25 kg (9.36 lb)
ECS4620-52T: 4.8 kg (10.58 lb)
ECS4620-52P: 6.58 kg (14.51 lb)
ECS4620-52P-2AC: 7.97 kg (17.57 lb)
Temperature Operating: 0 ° C to 45 ° C (32 ° F to 122 ° F)
Operating: 0 ° C to 50 ° C (32 ° F to 113 ° F, for
ECS4620-28P, ECS4620-28F and 2AC models only)
Storage: -40 ° C to 70 ° C (-40 ° F to 158 ° F)
Humidity Operating: 10% to 90% (non-condensing)
3
1
3
2
1
2
3
Power Specification*
AC Input Power ECS4620-28T: 100 to 240 V, 50-60 Hz, 1.5 A
ECS4620-28P: 100 to 240 V, 50-60 Hz, 10 A
ECS4620-28F: 100 to 240 V, 50-60 Hz, 2 A
ECS4620-52T: 100-240 VAC, 50-60 Hz, 2 A
ECS4620-52P: 50-60 Hz

100 to 127 VAC, 12 A

200 to 240 VAC, 6 A
ECS4620-28F-2AC: 100 to 240 VAC, 50-60 Hz,
2.5 A, Per PS
ECS4620-52P-2AC: 100 to 240 VAC, 50-60 Hz,
12 A, Per PS
DC Input Power ECS4620-28T-DC: 36 to 75 VDC, 2.5 A
ECS4620-28F-DC: 36 to 75 VDC, 3.82 A
Total Power
Consumption
ECS4620-28T: 50 W max. (with one expansion
module)
ECS4620-28T-DC: 50 W max. (without expansion
module)
ECS4620-28P: 515 W max. (with one expansion
module)
ECS4620-28F: 50 W max. (with one expansion
module)
ECS4620-28F-DC: 50 W max. (without expansion
module)
ECS4620-28F-2AC: 65 W max. (with one
expansion module)
ECS4620-52T: 70 W (with one expansion module)
ECS4620-52P: 960 W (with one expansion module
and PoE enabled)
ECS4620-52P-2AC: 925 W max. (with one
expansion module)
PoE Power
Budget
ECS4620-28P: 410 W
ECS4620-52P: 780 W
Redundant Power Supply (This accessory and specifications apply
to the ECS4620-28T, ECS4620-28P, ECS4620-28F, ECS4620-28T-DC,
ECS4620-28F-DC, ECS4620-52T and ECS4620-52P).
Input Power 100-240 VAC, 50-60 Hz, 12 A
Output Power 12 VDC, 10 A, -54.5 VDC, 14.3 A
Regulatory Compliances
Emissions CE Mark

EN 55032, Class A
FCC Class A
EN 61000-3-2/3
VCCI Class A (except ECS4620-28F-2AC and
ECS4620-52P-2AC)
BSMI (ECS4620-28T/28T-DC/52T only)
Immunity EN 61000-4-2/3/4/5/6/8/11
Safety UL 60950-1 & CSA 60950-1
UL 62368-1 & CSA 62368-1
IEC 60950-1 & EN 60950-1
IEC 62368-1 & EN 62368-1
CNS14336-1 (ECS4620-28T/28T-DC/52T)
Taiwan RoHS CNS15663 (ECS4620-28T/28T-DC/52T)
* Maximum power consumption values are measured under a 100 percent loading test and
should be used as estimates for planning purposes.
