2-5
Application Examples
2
Remote Connections with Fiber Cable
Fiber optic technology allows for longer cabling than any other media type. A
1000BASE-SX (MMF) link can connect to a site up to 550 meters away, a
1000BASE-LX (SMF) link up to 10 km, and a 1000BASE-LH link up to 80 km. This
allows the switch to serve as a collapsed backbone, providing direct connectivity for
a widespread LAN.
A 1000BASE-SX SFP transceiver can be used for a high-speed connection between
floors in the same building, and a 1000BASE-LX SFP transceiver can be used for
high-bandwidth core connections between buildings in a campus setting. For
long-haul connections, a 1000BASE-LH SFP transceiver can be used to reach a
remote site.
The figure below illustrates three switch stacks interconnecting multiple segments
with fiber cable.

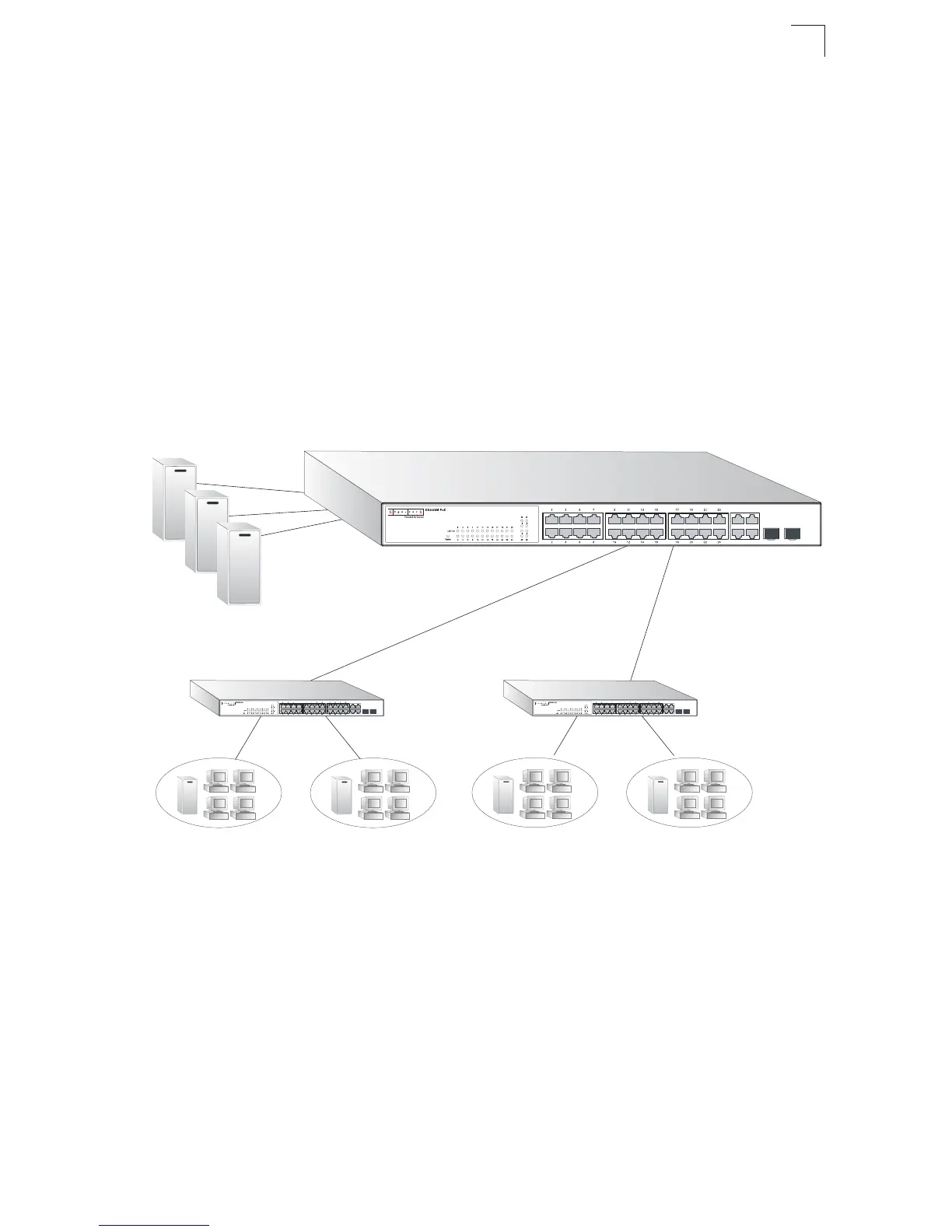

Figure 2-4 Remote Connections with Fiber Cable
...
...
Headquarters
1000BASE-LX SMF
(5 kilometers)
Remote Switch
10/100/1000 Mbps Segments
1000BASE-SX MMF
(550 meters)
Remote Switch
Server Farm
25 27
26 28
27 28
25 27
26 28
27 28
25 27
26 28
27 28
