Edge CS User Manual

INSTALLATION
INTRODUCTION PARTS DESCRIPTION INSTALLATION OPERATING INSTRUCTIONS INTERNET UPDATES APPENDIX
17
USER GUIDE

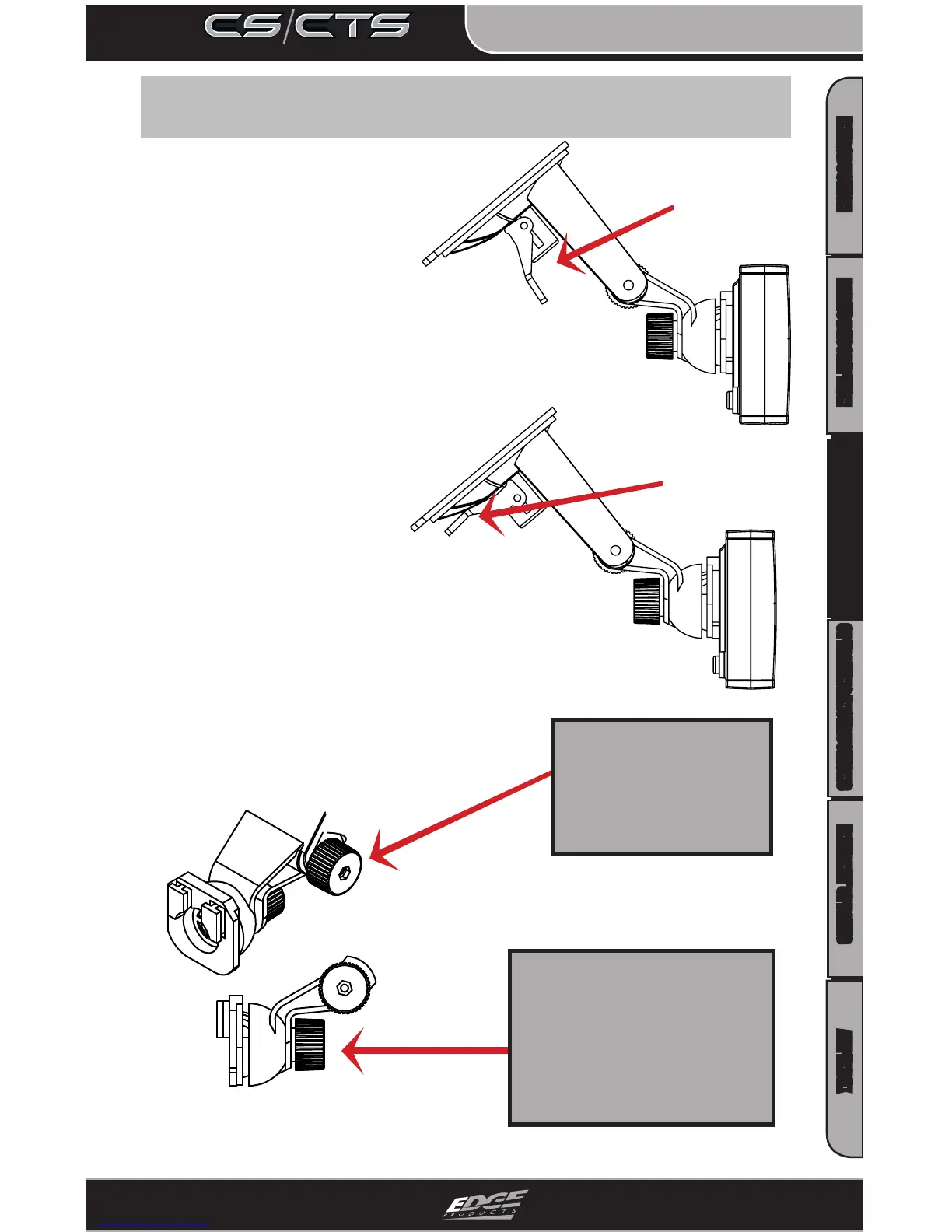

Step 5: Position and Lock the Unit on the
Windshield
Once the alcohol has dried you’re
ready to attach the mount to
the windshield.
You’ll notice that the
mount has a locking tab.
This tab creates the suction
that will lock the mount to
the windshield. Make sure
the lock is in the “Unlocked”
position. Position the mount
where you’ve cleaned the
windshield, press rmly,
and push the tab to the
“Locked” position.
UNLOCKED
Once you’ve locked the mount to the
windshield, use the adjustment knobs to
ne tune the viewing angle and height of
the CTS/CS device.
VERTICAL ADJ. KNOB
This knob will allow you
to adjust the viewing
angle and height of the
control unit up or down.
VARIABLE ANGLE ADJ KNOB
This knob will allow you to
adjust the viewing angle of the
control unit in both horizontal
and vertical fashions. Use it to
ne tune your viewing angle.
LOCKED
