7

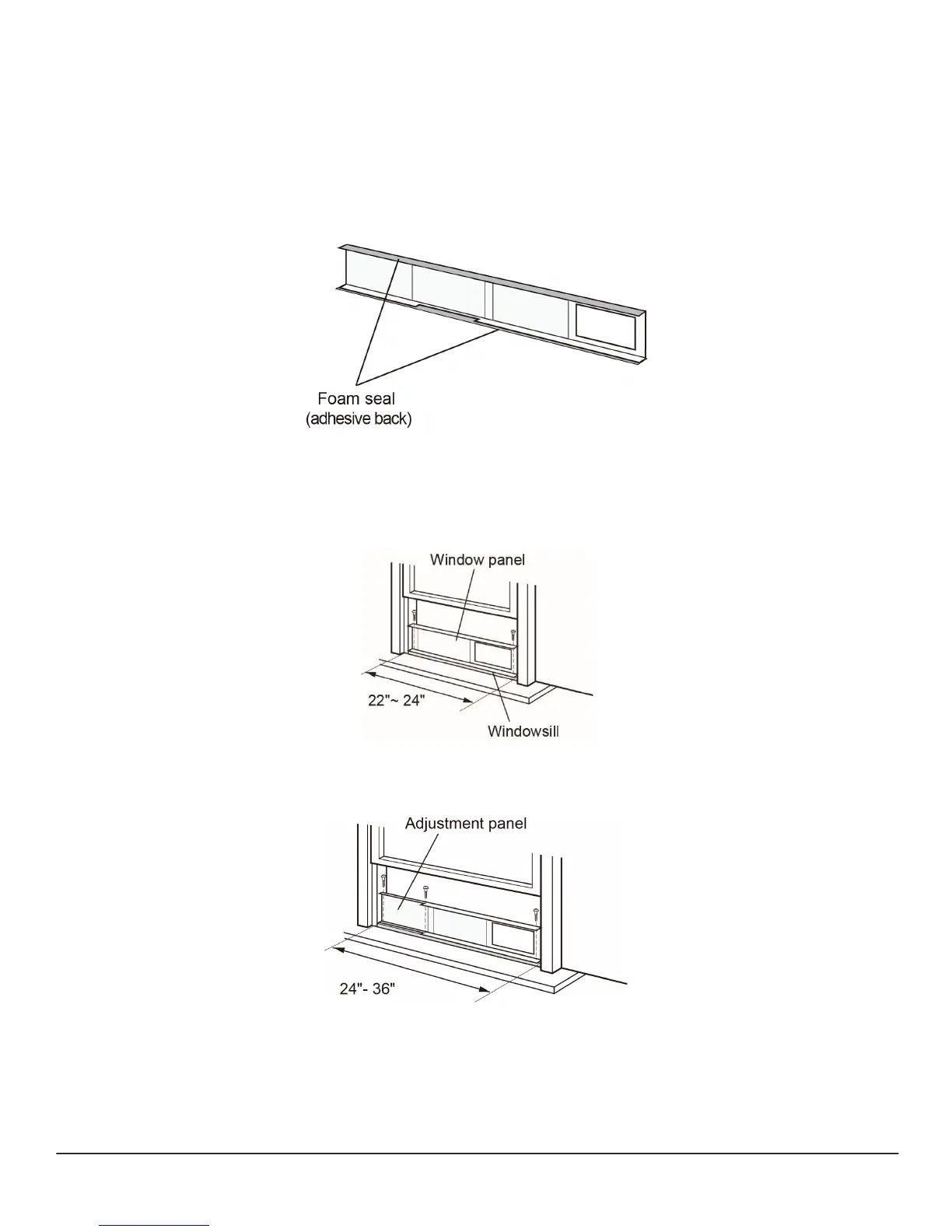

3. Attach Foam Seal to Window Panel
There are two (2) types of foam seal strips included with your window panel kit. Locate the
foam seal that has the adhesive backing. This will be used to minimize air leakage on the top
and bottom edges of the window panel.
• Verify your window panel has been extended to the correct width.
• Cut the foam seal to the correct length to cover the entire width of the window panel.
• Attach the adhesive backed foam seal strip to both the top and the bottom of the window
panel.
4. Attach Window Panel to Window Sill
The window panel must now be secured to the window sill with the screws provided.
• If the inner width of the window is between 22” and 24” wide, attach the window panel to
the window sill with two (2) wood screws.
• If the inner width of the window is between 24” and 36” wide, attach window panel to
window sill with three (3) wood screws.
To Next Page
